Description
Amgo PRO-30E HD 30,000 lb 4 Post Lift
The Amgo PRO-30E HD 30,000 lb 4-post lift is a heavy-duty lift built for commercial vehicles, buses, and trucks. It offers a 30,000 lb lifting capacity and is equipped with an ETL-certified power unit. The lift uses a mechanical self-locking safety system with air-driven lock release, multiple primary safety locks, and a cable-slack protection system. It is designed with aircraft-quality cables, a high-grade hydraulic cylinder with oil seals and a compensation valve, and non-skid diamond platforms to ensure durability and safety. This model is made for shops that handle extra-heavy vehicles and need reliability and strength in daily operation.
The product title is Amgo PRO-30E HD 30,000 lb 4-Post Lift. The listed price is $19,635.00. It is found in the Car Lifts → 4-Post Lifts category. The gross weight is 6,676 lbs. Pickup is available in Manning, South Carolina, Dallas, Texas, and Temecula, California. The motor power is 2.0 HP and the lifting time is 133 seconds. The overall length with ramps is 366 1/8 inches, without ramps is 315 1/2 inches, the overall width is 149 3/8 inches, and the overall height is 91 13/16 inches.
The maximum lifting height is 74 13/16 inches, the lock height to top of runway is 71 11/16 inches, and the maximum underneath height is 65 7/8 inches. The minimum height is 10 7/16 inches. The drive-thru clearance is 117 13/16 inches. The width between runways is adjustable from 44 7/8 inches to 54 3/4 inches, while the outside edge of runways spans from 92 15/16 inches to 102 3/4 inches.
Product Features
- 30,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
Product Specifications

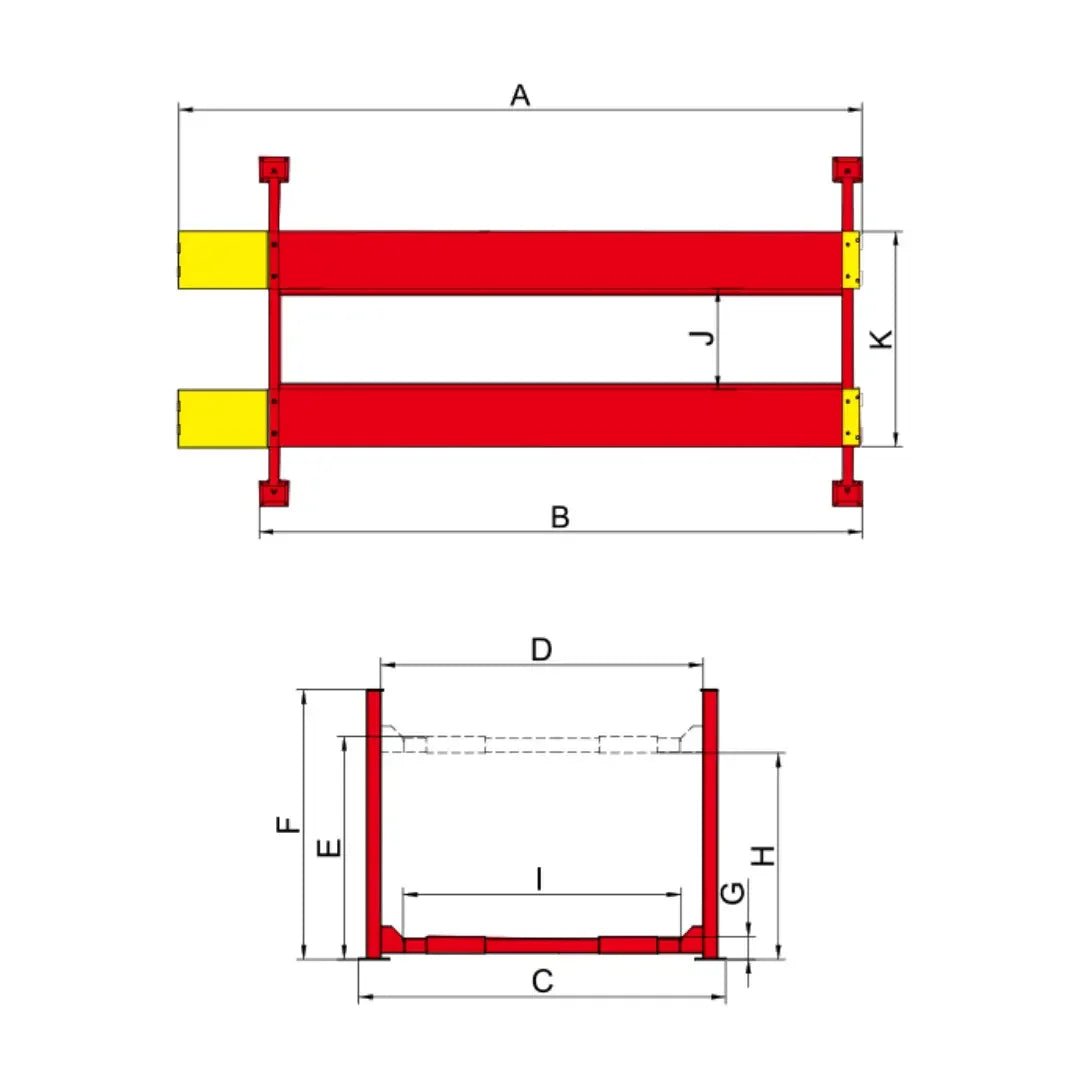

| Model | PRO-30E |
|---|---|
| Lifting Capacity | 30,000 lbs |
| Lifting Time | 133S |
| A: Overall Length (Inc.Ramps) | 366 1/8″ |
| B: Overall Length (No.Ramps) | 315 1/2″ |
| C: Overall Width | 149 3/8″ |
| D: Width Between Columns | 131 13/16″ |
| E: Max. Lifting Height | 74 13/16″ |
| E: Max. Lock Height to Top of Runway | 71 11/16″ |
| F: Overall Height | 91 13/16″ |
| G: Minimum Height | 10 7/16″ |
| H: Max. Underneath Height | 65 7/8″ |
| H: Max. Lock Underneath Runway | 62 3/4″ |
| I: Drive-Thru Clearance | 117 13/16″ |
| J: Width Between Runways | 44 7/8″ – 54 3/4″ |
| K: Outside Edge of Runways | 92 15/16″ – 102 3/4″ |
| Gross Weight | 6,676 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
