Description
-
Industry leading 3 YEAR WARRANTY (a $499 value!)
-
11,000 LB Capacity
-
Drive Through Width 112″; Lifting Height: 88 21/32″; Overall Dimensions 247 1/8″L x 122 7/16″W x 99 15/32″H
-

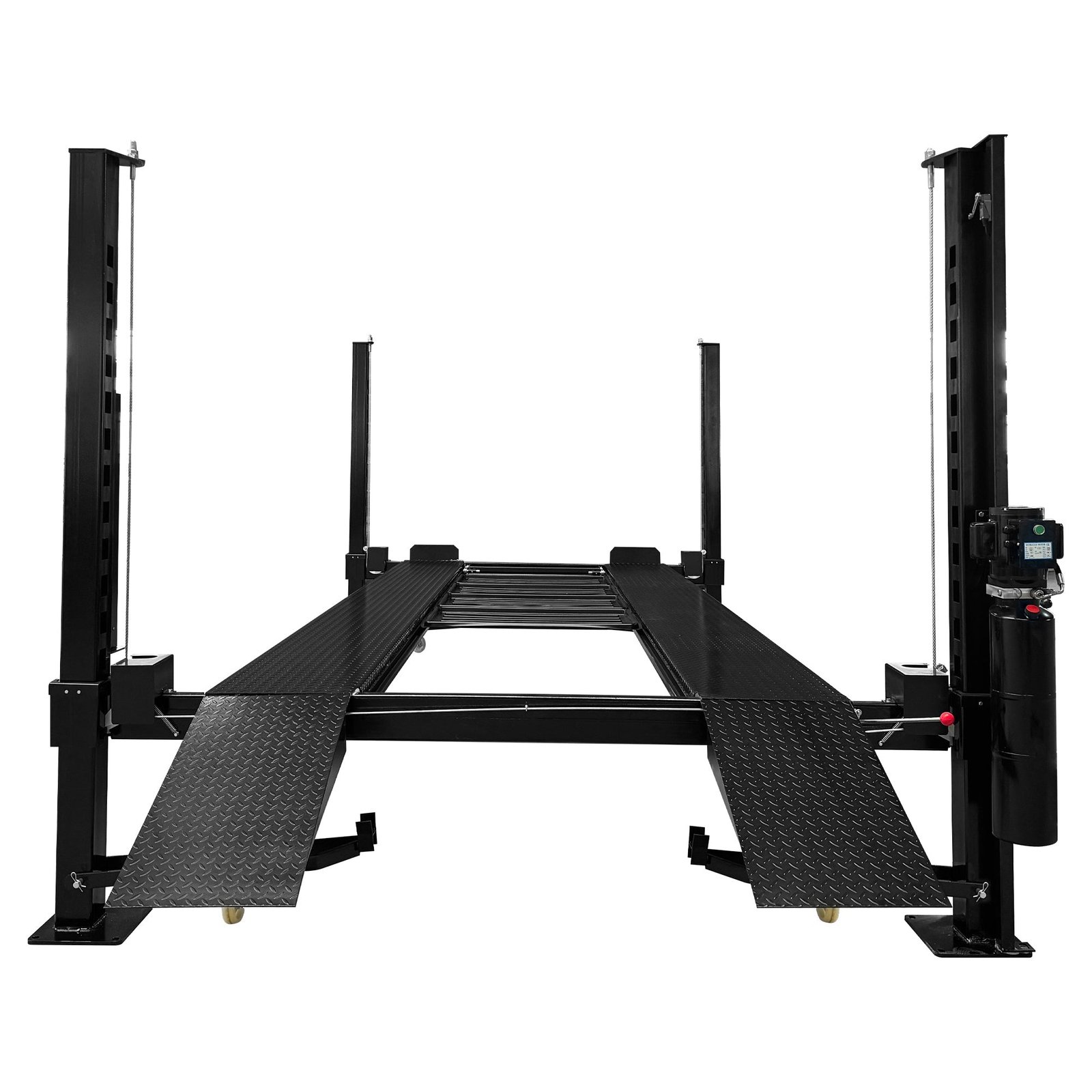

Free Caster Kit, Rolling Jack Tray, and Removable Approach Ramps.
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-

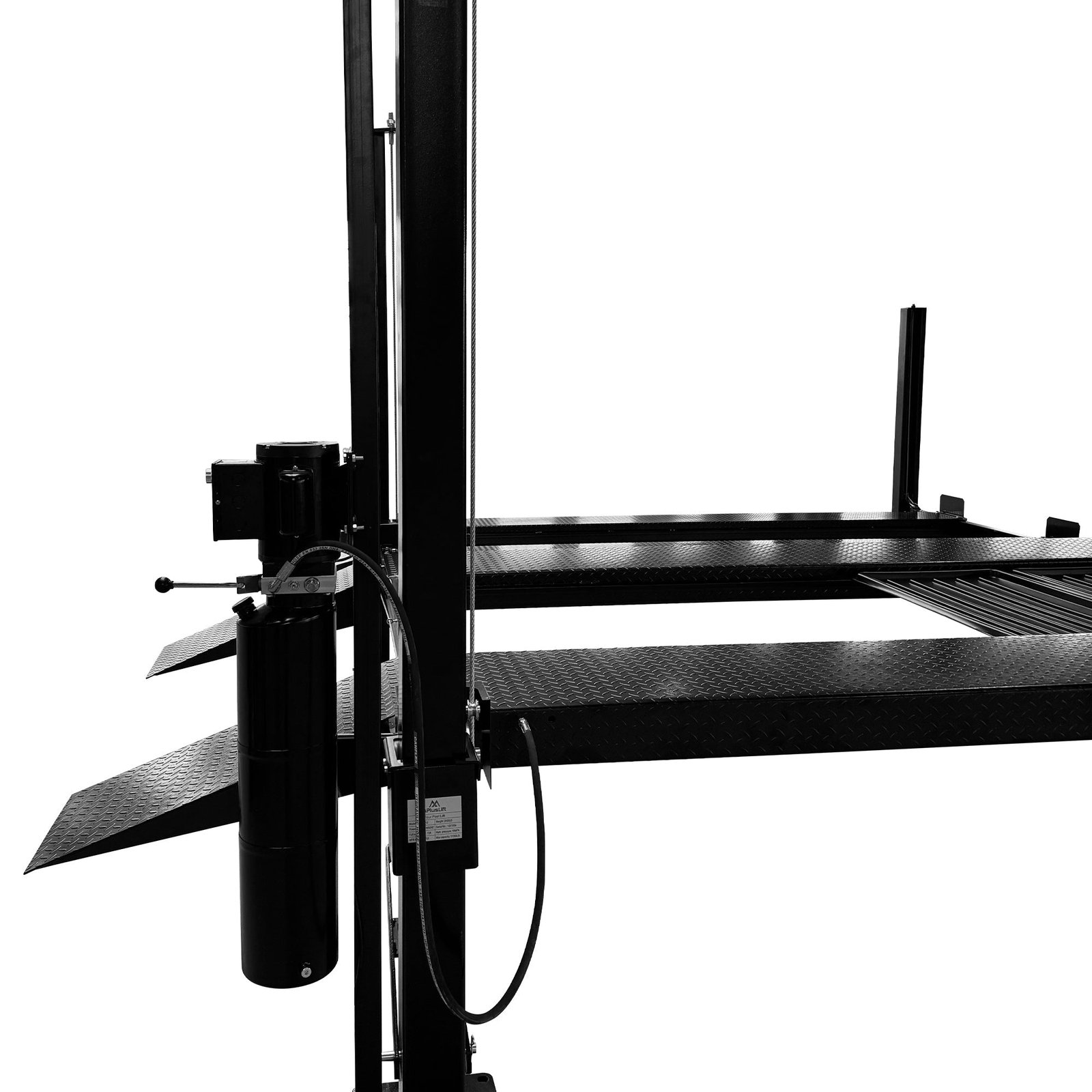

Safer Operation with A Revolutionary High Efficient 220V 3HP Hydraulic Power Unit
-
Powder Coated Finish with Superior Corrosion Resistance
-
Drip Trays Optional

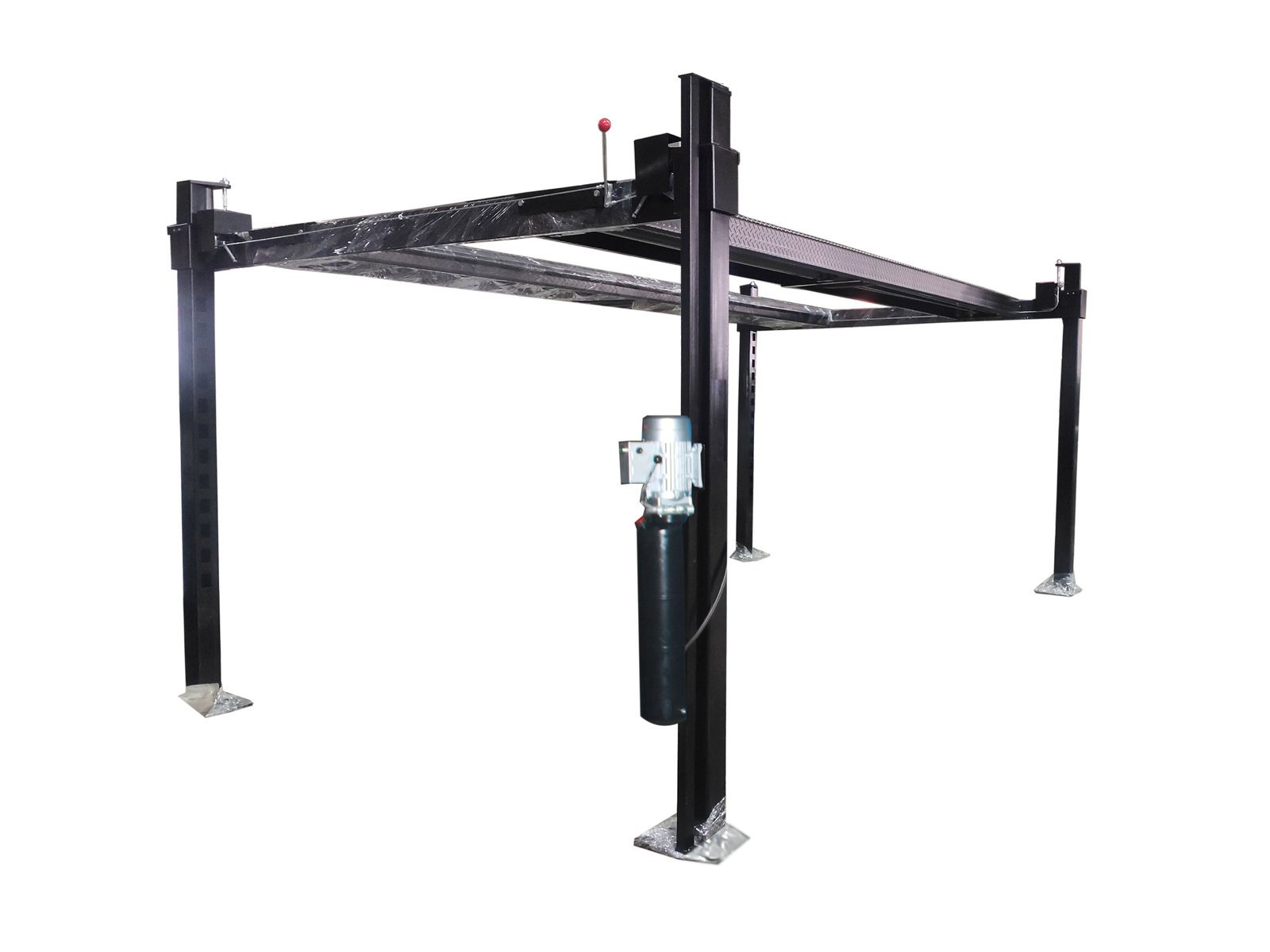

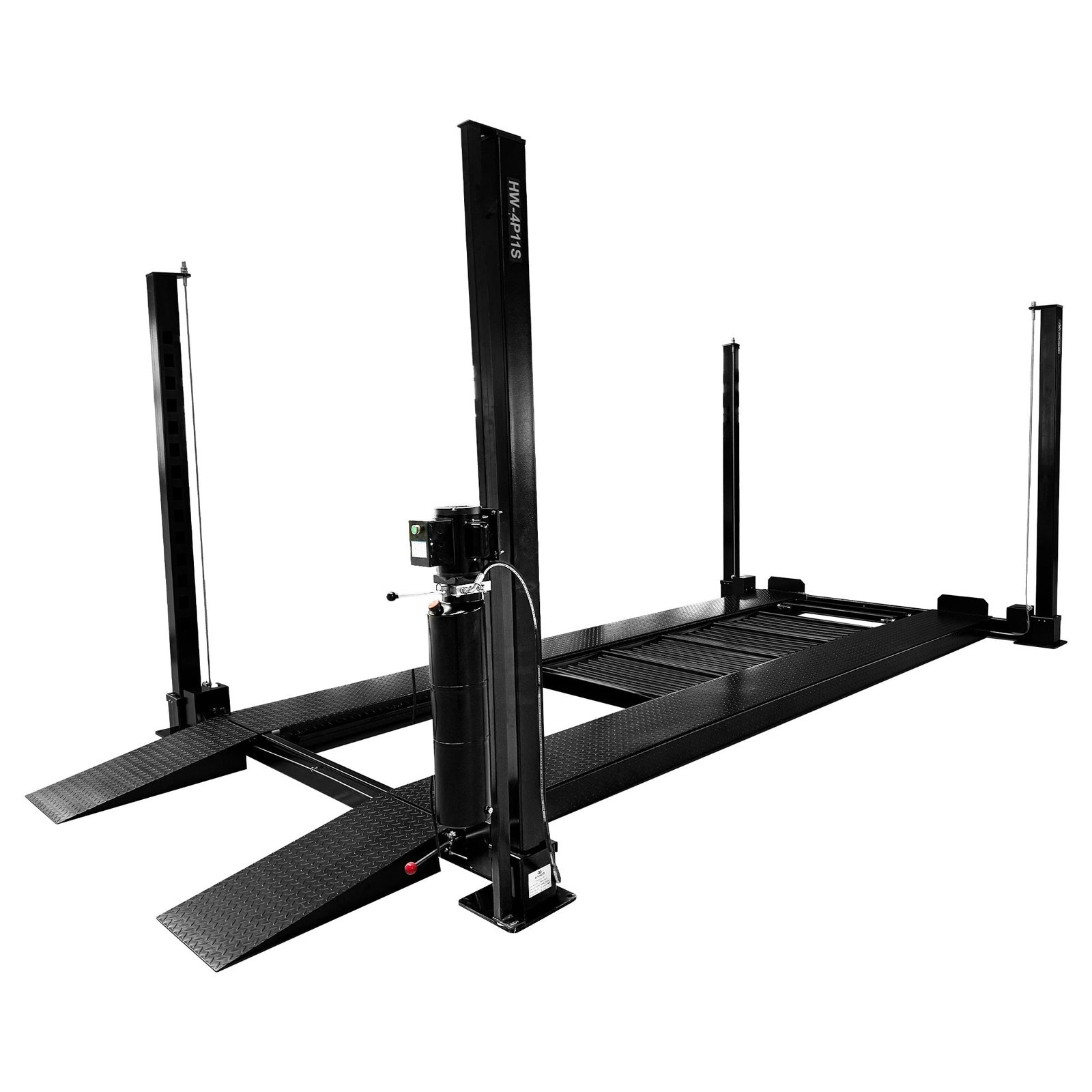

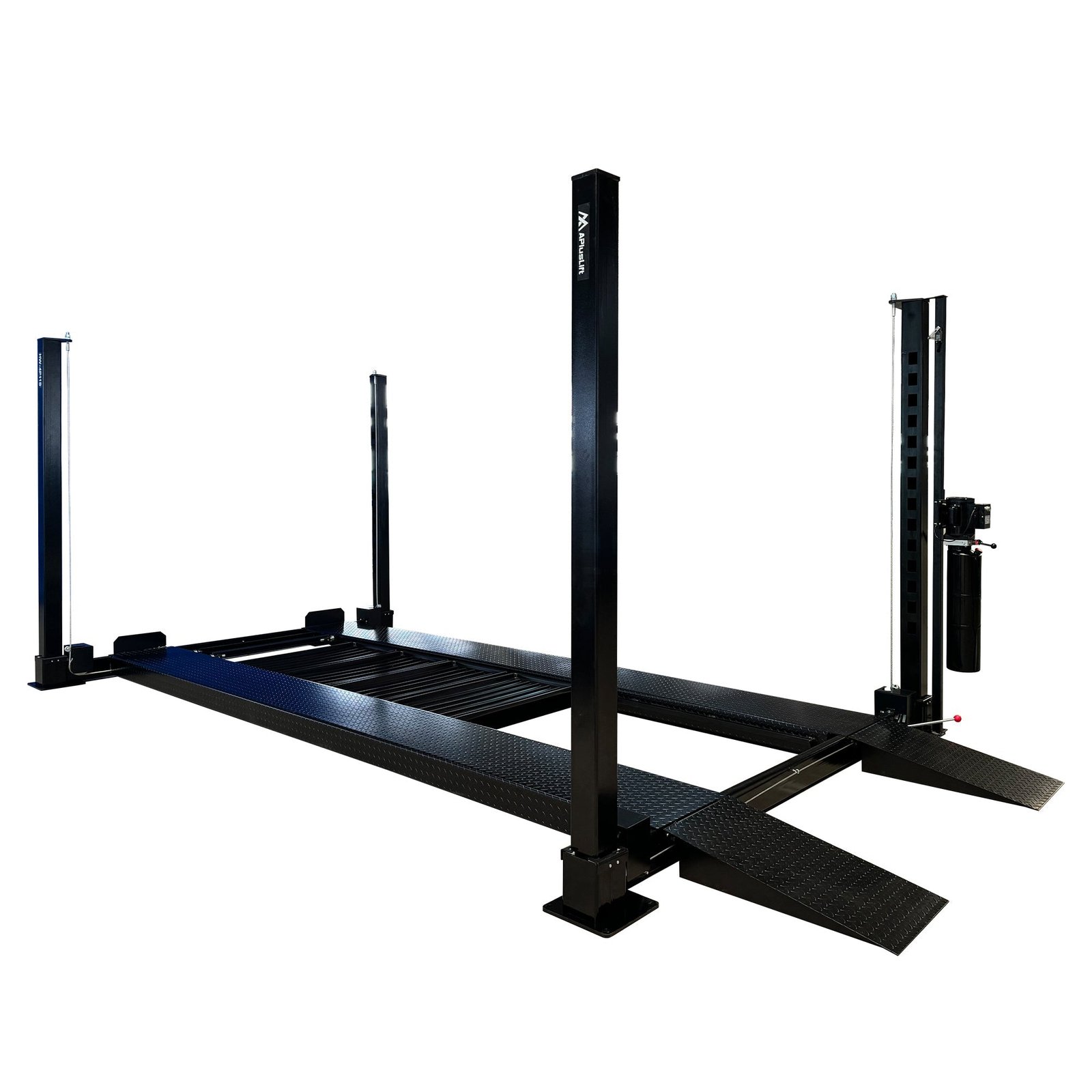

APlusLift HW-4P11S 4-post car auto lift truck hoist is a portable parking storage lift with 11,000 LB Capacity. The design of the car lift model is time tested for 30 years. It is an extra long, extra wide, and extra tall car lift model. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance. The car lift uses a revolutionary high efficient 220V 3HP hydraulic power unit to make car lift operation much safer. The auto hoist is best for parking/storage/service use by homeowners or restoration shops.

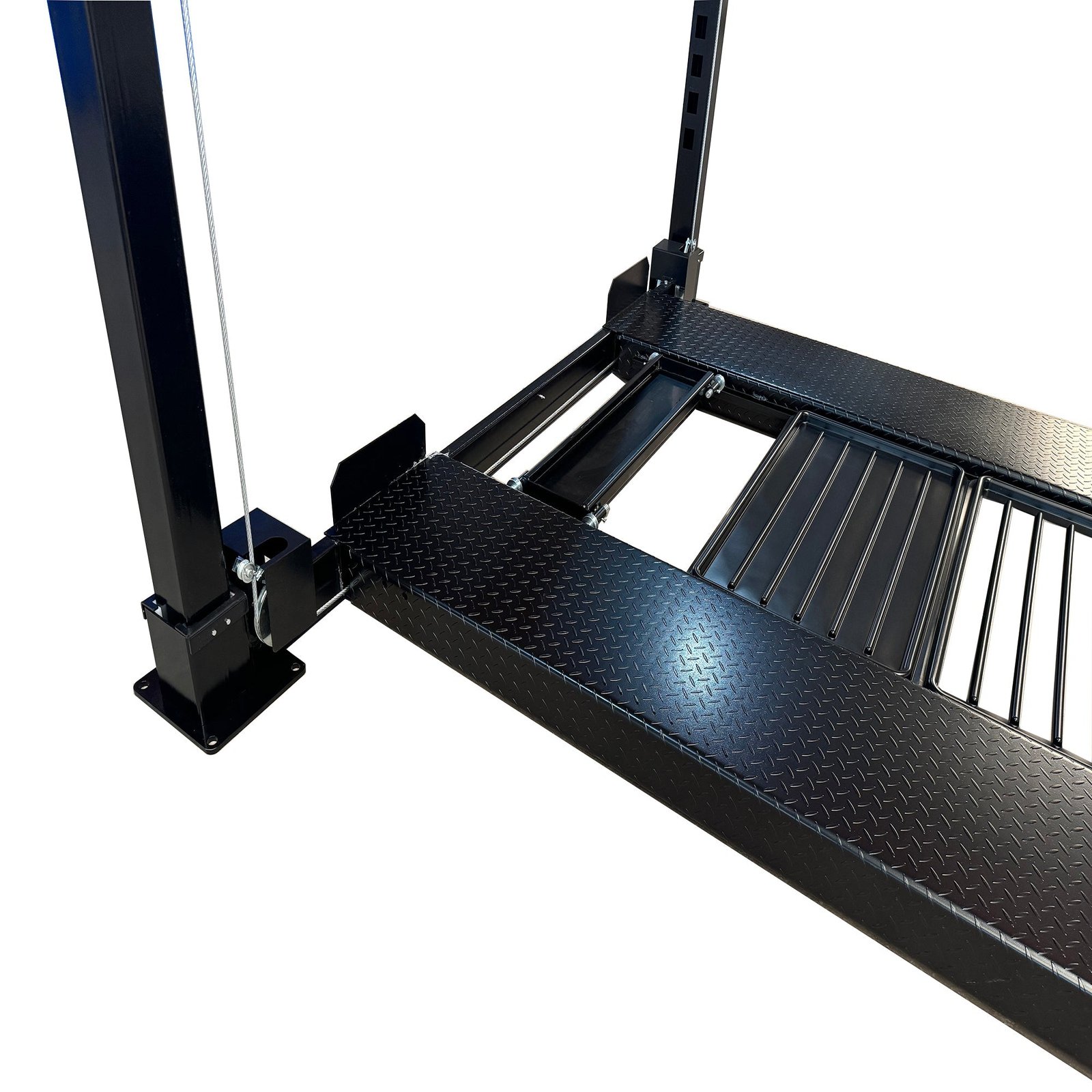

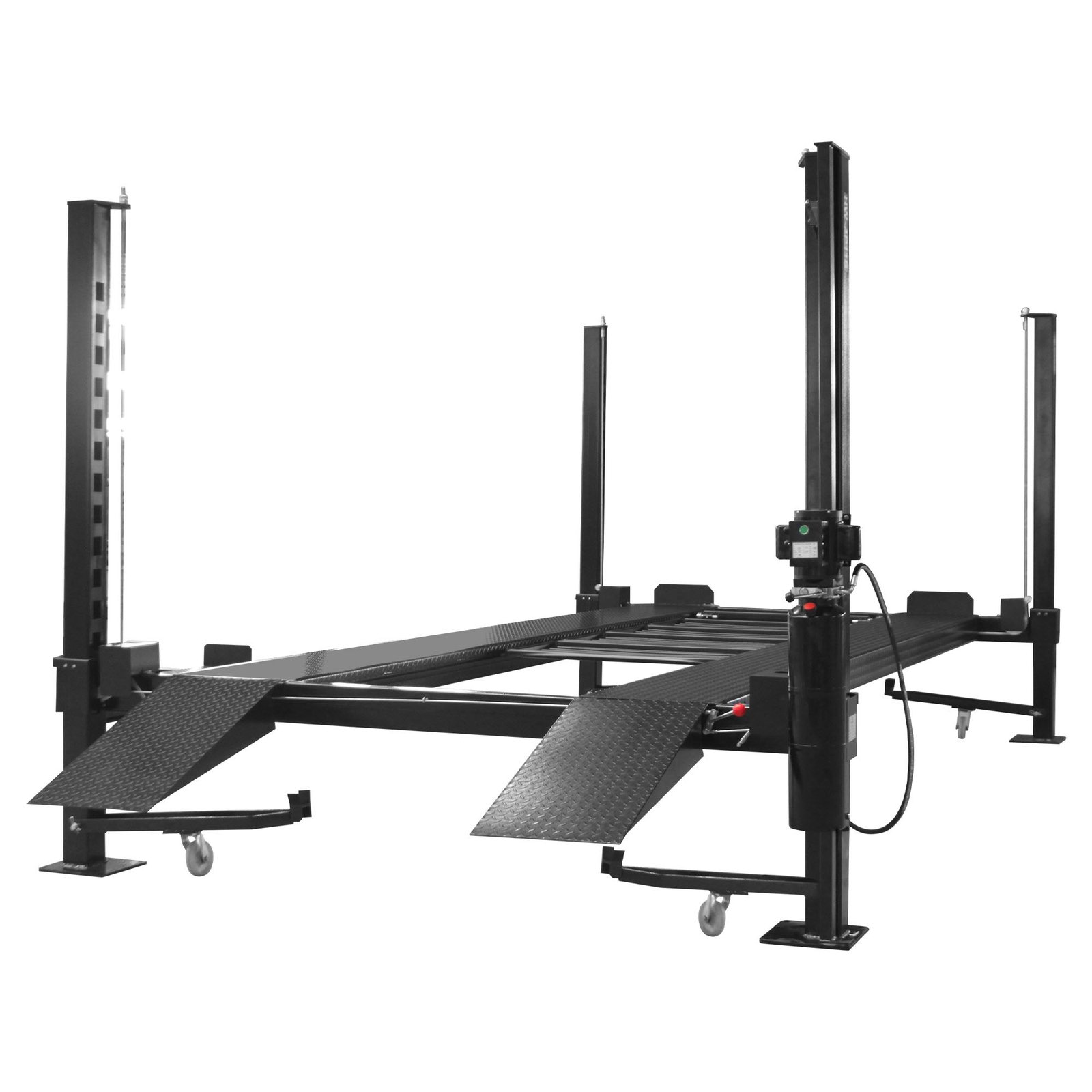

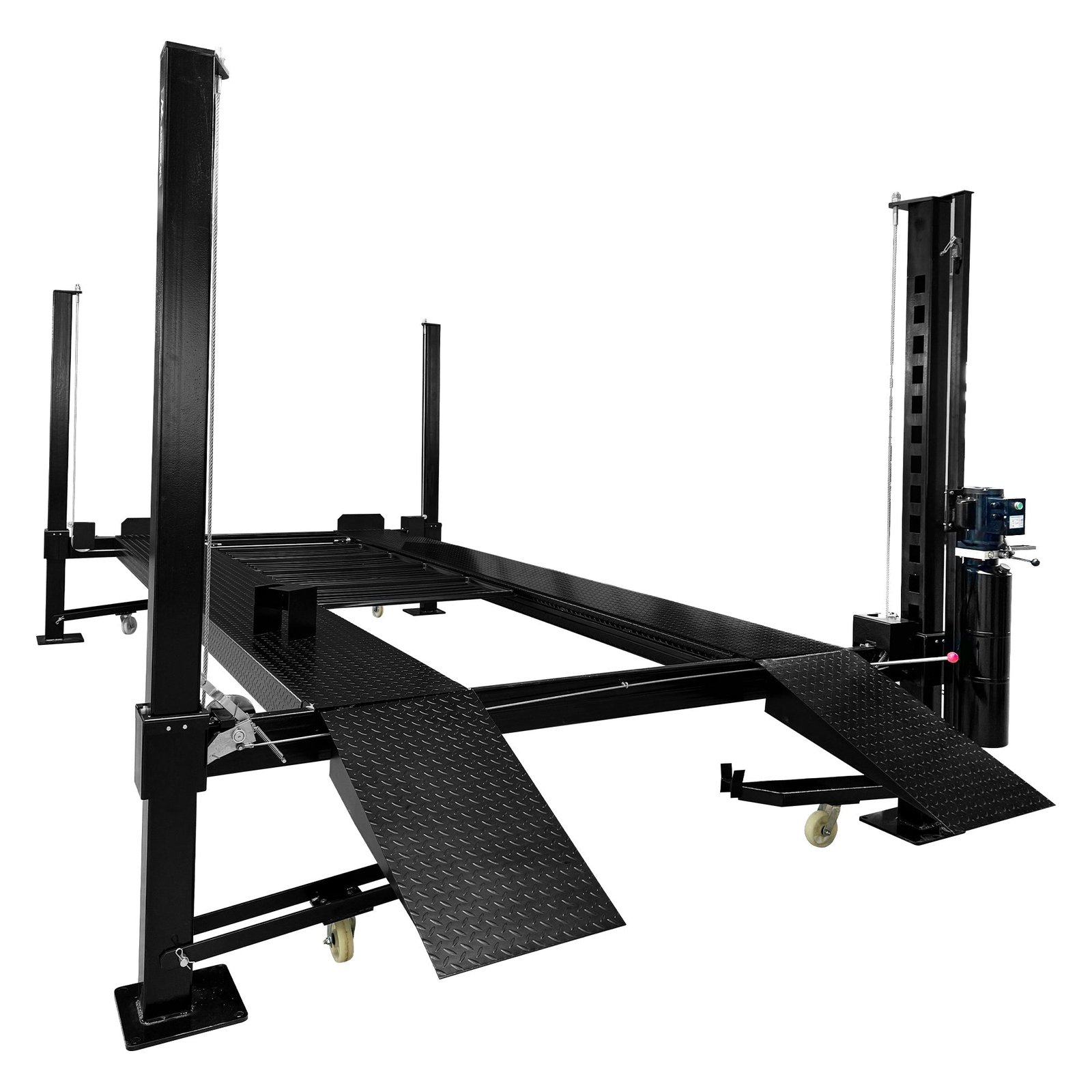

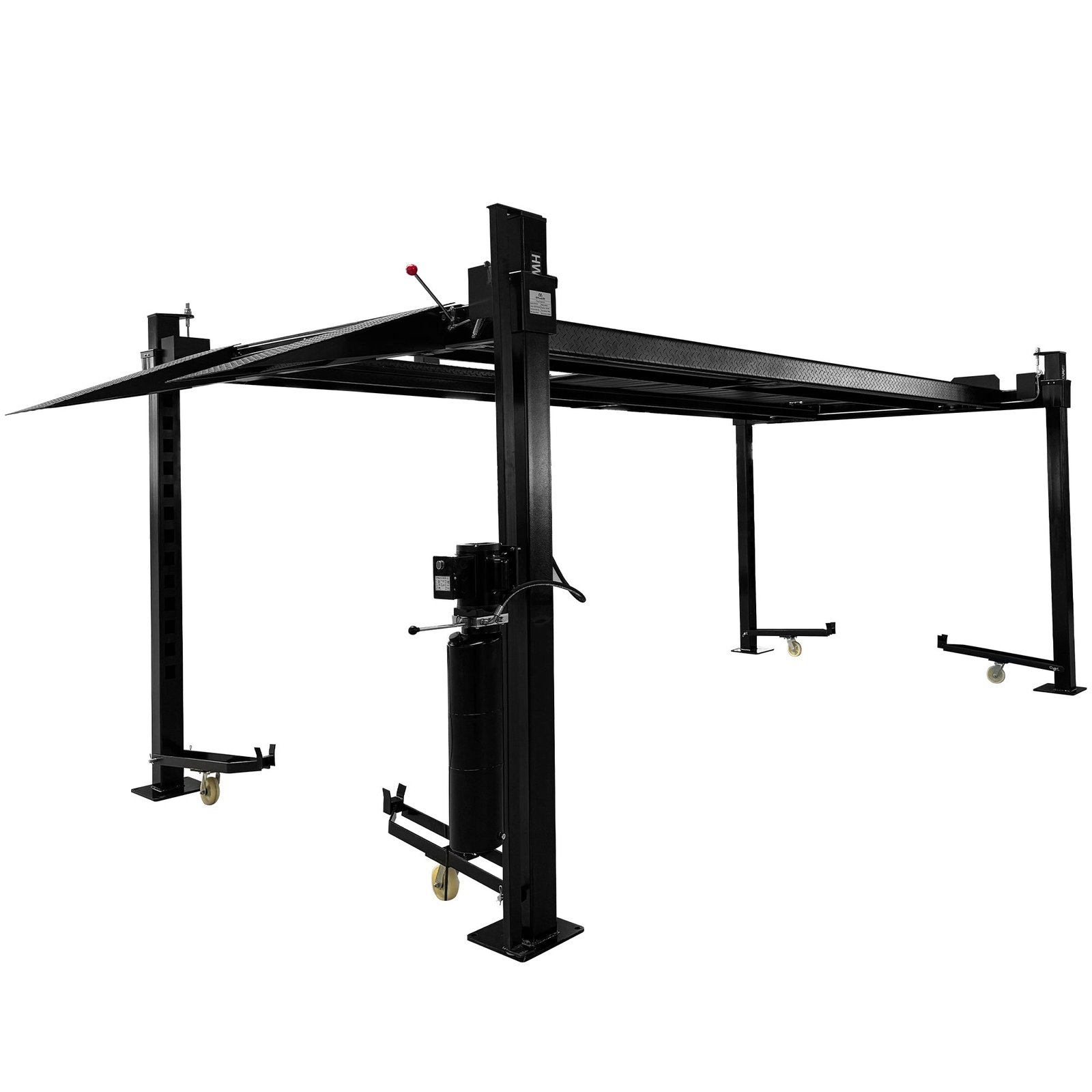

APlusLift HW-4P11S 4-post car auto lift truck hoist package includes a caster kit with polyurethane wheels, a jack tray, and two removable approach ramps. The caster kit allows customers to move the lift around the garage easily and can be installed or removed in minutes. The jack tray allows customers to use a jack to lift one end of the vehicle. The drip trays(Optional) prevent fluid from the top vehicle from dripping onto the bottom vehicle. Optional sliding jacks and drip trays are available for purchase.
Specifications and Features
- Installation Manual
- Foot Print
- 3 Years (36 Months) Warranty
- Lifting Capacity: 11,000LB
- Usage: Parking/Storage/Service
- Powder Coated Finish with Superior Corrosion Resistance
- Caster Kit, Jack Tray, And 2 Removable Approach Ramps Included

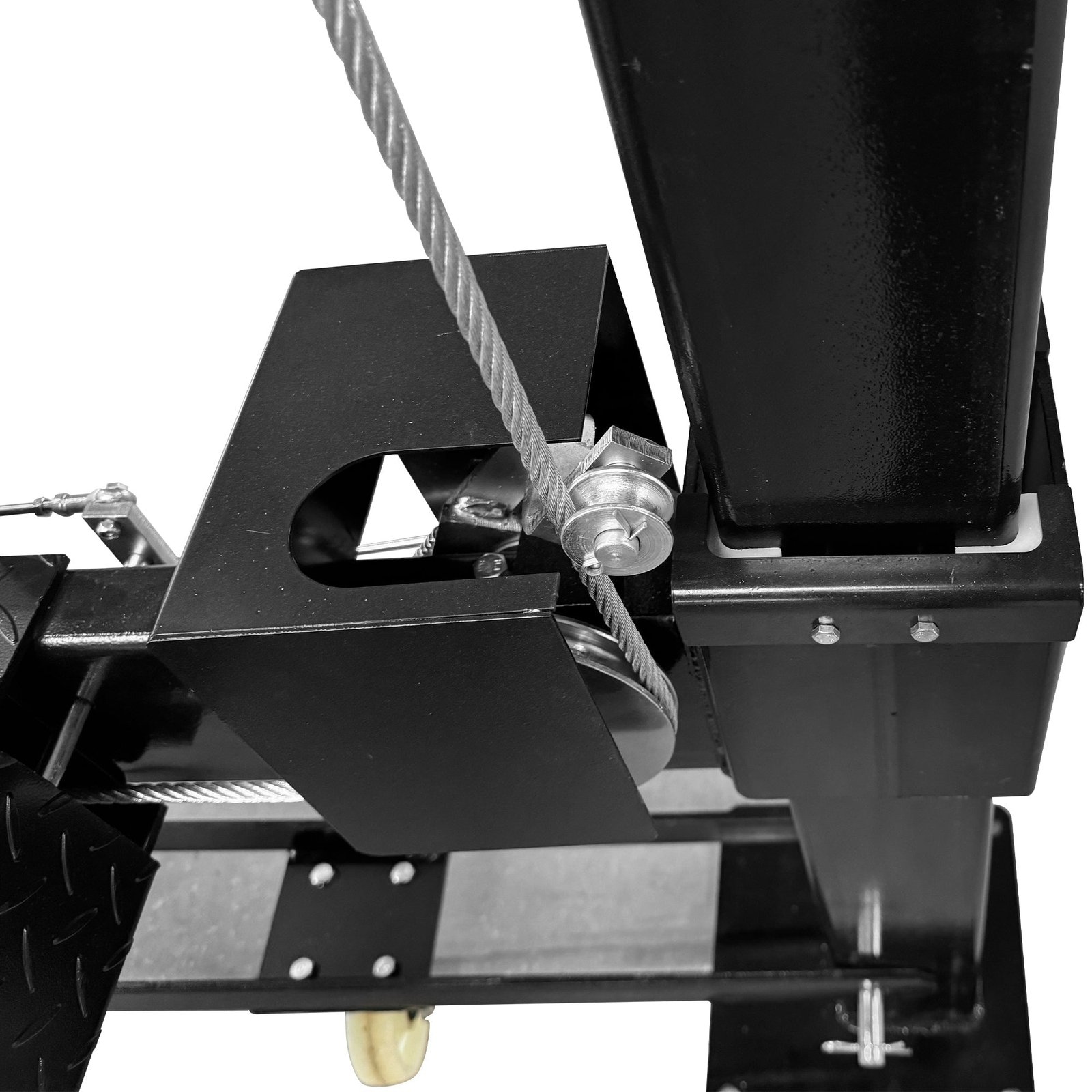

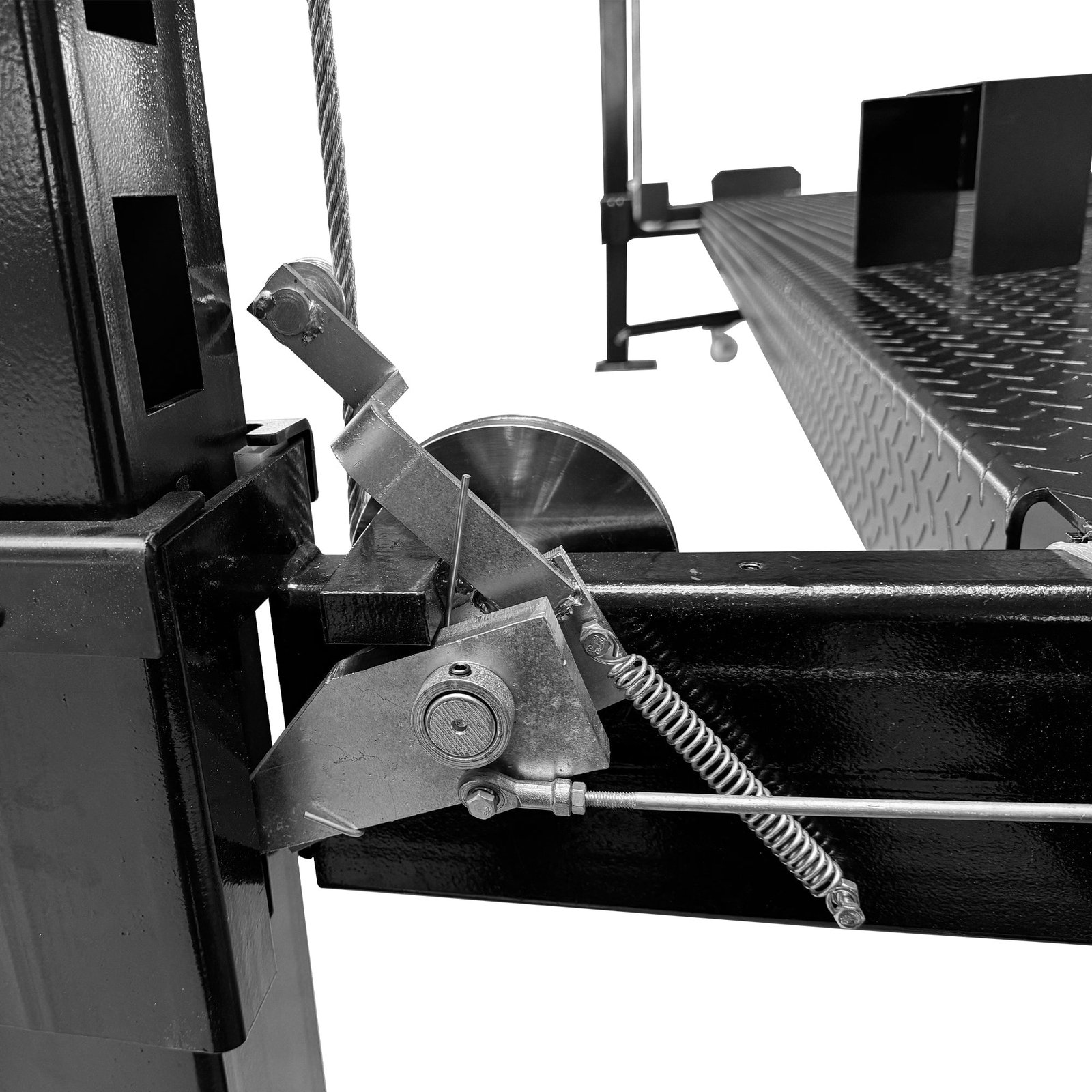

- Heavy duty 3/8″ diameter cables that reduce high stress on synchronization process and increase cable life
- Overall Length: 247 1/8″
- Overall Width: 122 7/16″
- Overall Height: 99 15/32″
- Lifting Height: 88 21/32″
- Clearance Under Runway: 82 15/16″
- Drive Through Width: 112″
- Runway Size: 204 23/32″L x 20″W
- Width Between Runways: 44 13/32″
- Runway Gauge Steel: 14/64″
- Column Cross Section: 4 23/32″Lx4 23/32″L
- Removable Approach Ramps Size: 35 23/32″L x 18 23/32″W
- Lock Positions: 14
- Lifting Time: 90 seconds
- Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
- Hydraulic Oil: 4.3-5 gallons AW32/AW46 (Not Included)
- Concrete Thickness: 4″
- Shipping Weight: 2,500LB
- Shipping package size: 210″L x 22″W x 34″H
