Description
-
Single Point Safety Lock Release System
-
Two Set of 2 3/4″ Tall and 5 1/2″ Tall Truck Adapters Included; 6’7″ Lift Height Maximum with Truck Adapters
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-
All Robot Welded Structure with Durable Powder Coated Finish

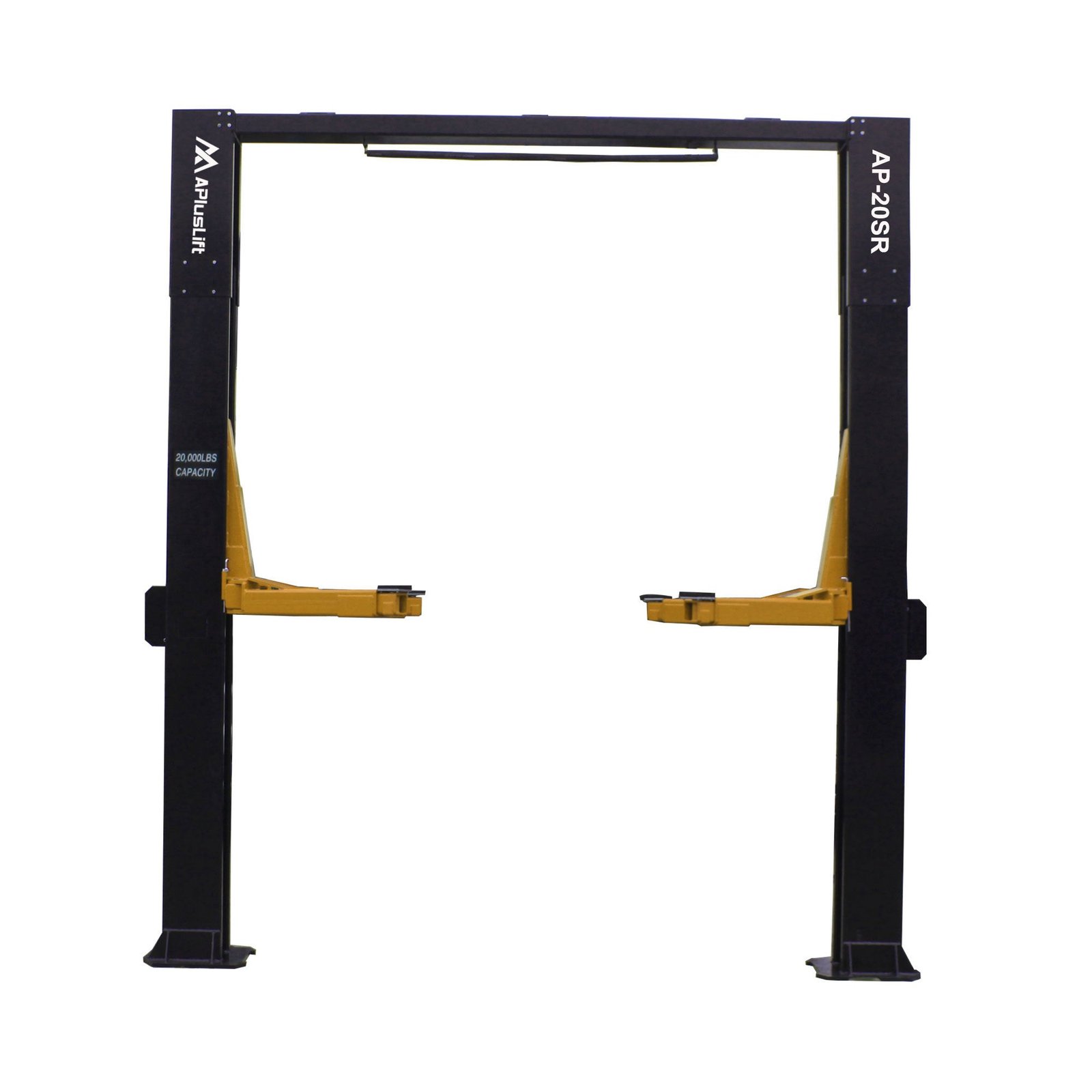

APlusLift AP-20SR is a 20000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications |
|||||||||
| Model | AP-20SR (This Model) |
AP-14SR (for Comparison) | |||||||
| Manual | AP-20SR Manual | AP-14SR Manual | |||||||
| Style | Overhead | Overhead | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 Months) | 3 Years (36 Months) | |||||||
| Lifting Capacity | 20,000 LB | 14,000 LB | |||||||

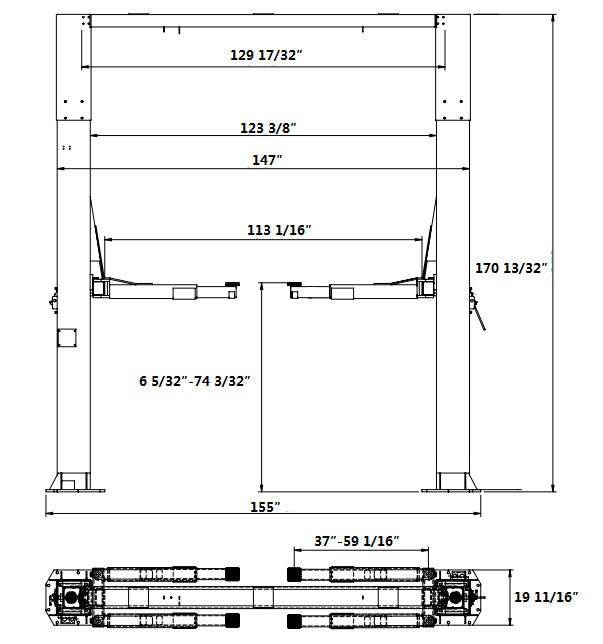

| Overall Height | 170 13/32″ | 165 11/32″ | |||||||
| Overall Width | 155″ | 142 1/8″ | |||||||
| Maximum Lift height with Truck Adapters | 79 19/32″ | 79 19/32″ | |||||||
| Maximum Lift height without Truck Adapters | 74 3/32″ | 74 3/32″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 6 5/32″ | 6 11/16″ | |||||||
| Drive Through Width (Carriage to Carriage) | 113 1/16″ | 104 1/8″ | |||||||
| Column to Column Width | 123 3/8″ | 114 11/16″ | |||||||
| Column Cross Section | 12 7/32″L x 11 13/16″W | 12 7/32″L x 9 27/32″W | |||||||
| Shipping Weight | 2900 LB | 2300LB | |||||||

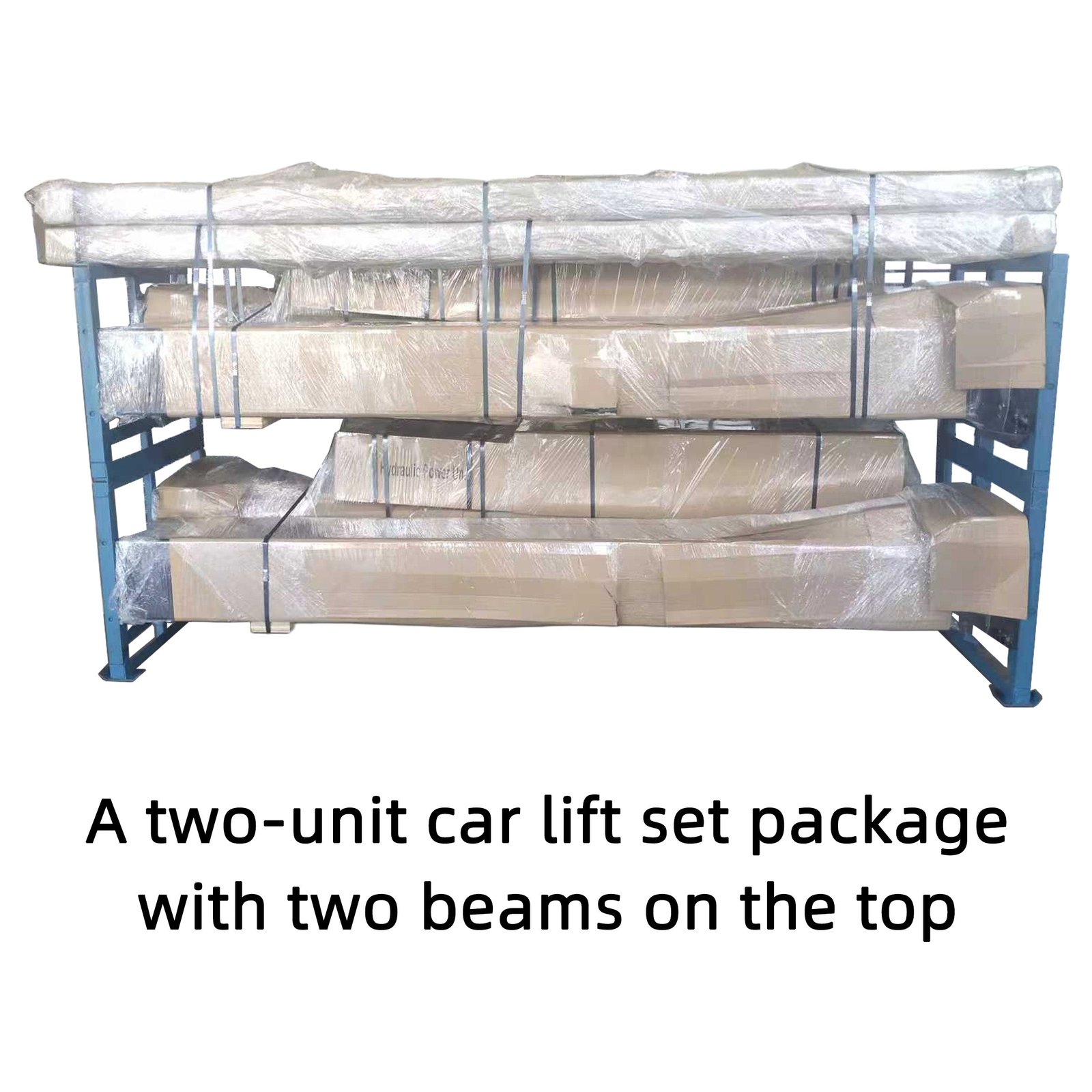

| Shipping package size | 145 11/16″L x 32 11/16″W x28 15/16″H | 149 5/8″L x 32 11/16″W x21 1/4″H | |||||||
| Column Steel Thickness | 1/4″ | 1/4″ | |||||||
| Carriage Steel Thickness | 13/32″ | 1/4″ | |||||||
| Carriage Yoke Thickness | 13/32″ | 13/32″ | |||||||
| Arm Steel Thickness | 5/16″ | 5/16″ | |||||||
| Base Plate Steel Thickness | 25/32″ | 5/8″ | |||||||
| Truck Adapters (Height Extensions) | Two Sets: 4pcs: 5 1/2″ Tall 4pcs: 2 3/4″ Tall |
Two Sets: 4pcs: 5 1/2″ Tall 4pcs: 2 3/4″ Tall |
|||||||
| Front Arms | Straight Front 2 stages reach from 37″ to 59 1/16″ | Straight Front 2 stages reach from 32 5/32″ to 49 7/32″ | |||||||
| Back Arms | Straight Rear 2 stages reach from 37″ to 59 1/16″ | Straight Rear 2 stages reach from 32 5/32″ to 49 7/32″ | |||||||
| Driving Mode | Dual hydraulic cylinders, direct drive | ||||||||
| Motor | 220V Single Phase 3HP (recommend a 30A breaker) | ||||||||
| Hydraulic Oil | 5.3-6 gallons AW32/AW46 (Not Included) | ||||||||
| Time to full rise | 75 seconds | ||||||||
| Arm Assembly | Symmetrical Arm Assembly | ||||||||
| Other Parts Included |
|
||||||||
| Optional Parts | 2 3/4″ and 6″ Tall Truck Adapters | ||||||||
| Concrete Requirement | ≥13″ thick ≥C25 strength |
||||||||
| Model | AP-20SR (This Model) |
AP-14SR (for Comparison) | |||||||
Features
- Direct drive mode
- Durable hydraulic system
- Easy to operate and maintain
- Single point safety lock release
- Double Seal Rings Protecting PU Material
- Carriage and Coloumn Material Q235B Steel
- Lifting operation by pressing “UP” button on motor
- Manual lowering operation by pressing lever
- Relief valve built in power pump to prevent overloading
- Automatic arm lock restraints
- Relief valve built in power pump to prevent overloading
- Door guards protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 3″ pulley that reduce high stress on synchronization process and increase cable life
- Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
