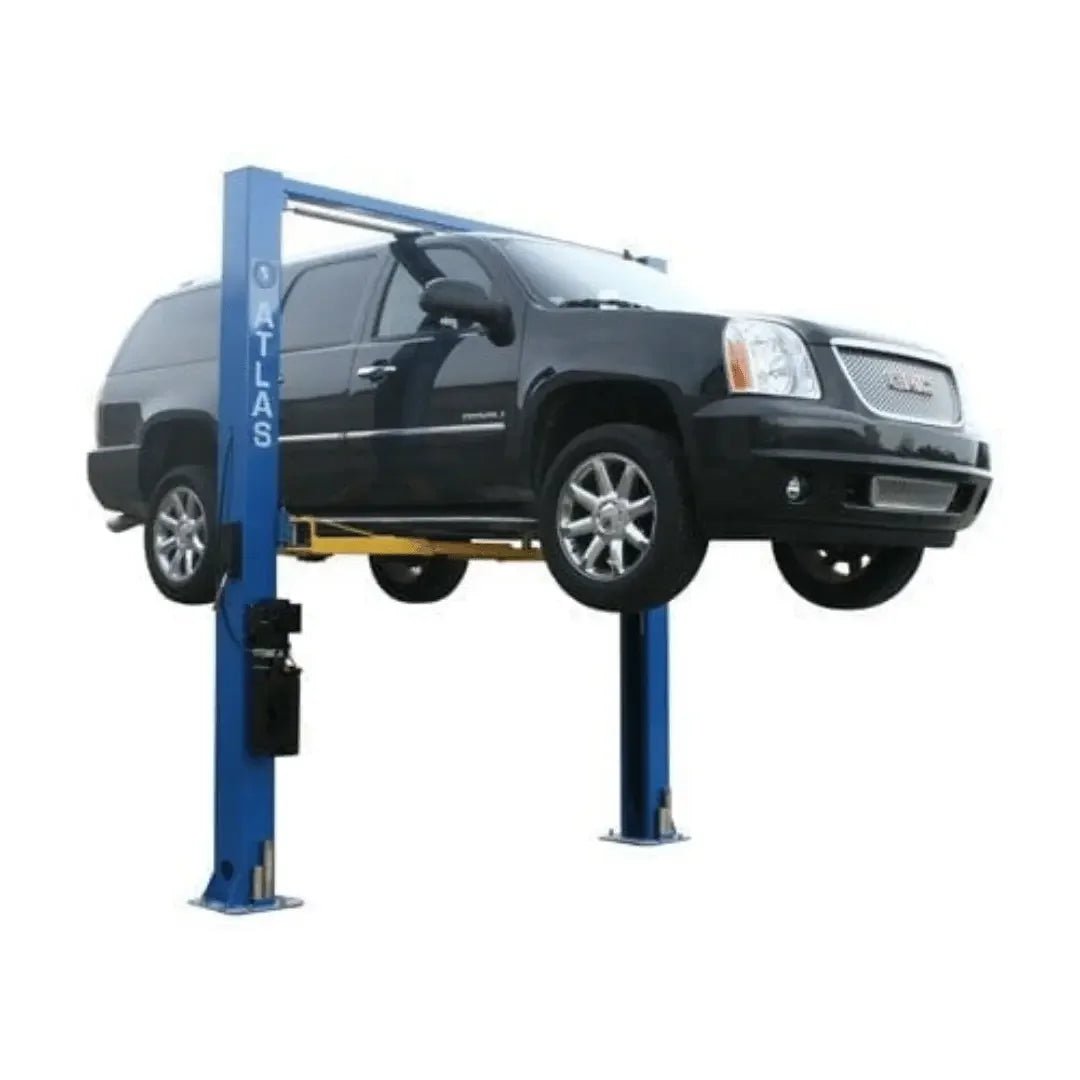

Atlas 9OHSC Overhead 9,000 lb. Capacity 2-Post Lift
Introducing the Atlas 9OHSC, a state-of-the-art 2-post lift, meticulously designed for the modern professional garage or home workshop. Available at Mechanic Superstore, this overhead, open-floor lift is engineered to elevate your vehicle servicing capabilities with its impressive 9,000 lb. capacity. The Atlas 9OHSC is the embodiment of strength and precision, ensuring a seamless and safe operation for a wide variety of vehicles.

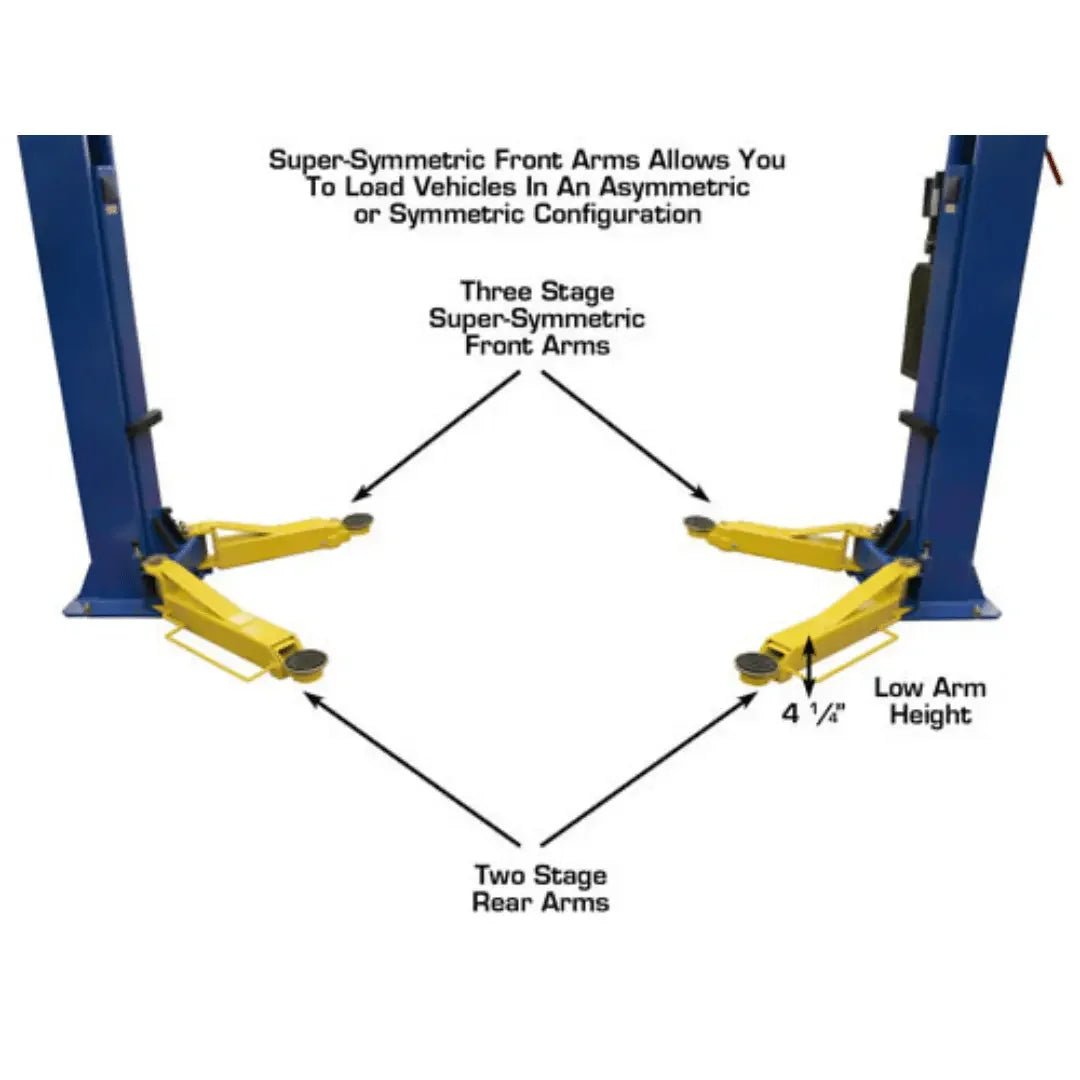

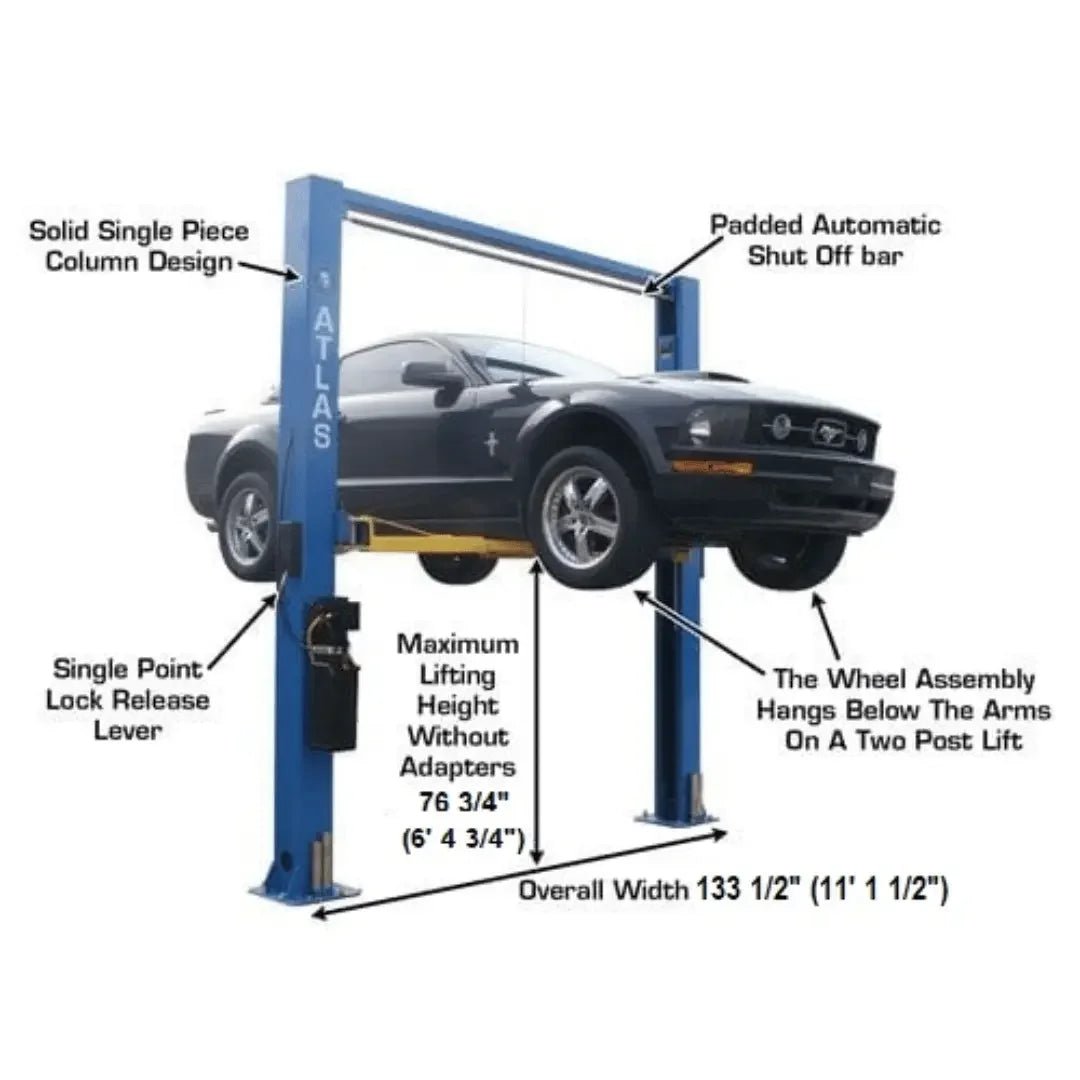

With an overall height of 142 inches (11 feet 10 inches), the Atlas 9OHSC incorporates a single-piece column design that enhances its stability and durability. The lift features 3-stage front arms and 2-stage rear arms, allowing for flexible adjustments to accommodate different vehicle sizes and shapes. This versatility is further complemented by automatic arm restraints, which ensure that arms stay securely in place during lifting operations.
Safety and convenience are at the forefront of the Atlas 9OHSC design. Equipped with single-point lock release, operators can easily and quickly disengage the lift’s safety locks from a single location, streamlining the lowering process. Rubber guards on the carriages protect vehicles from accidental scratches or damage, while the dual hydraulic chain-drive cylinders provide smooth and reliable lifting power.
Every Atlas 9OHSC comes with a free 12 piece truck adapter set and all the necessary mounting hardware, ensuring you have everything you need for installation and operation right out of the box. The shipping weight stands at 1,430 lbs., reflecting the lift’s robust construction and quality materials.
Product Features
- 9,000 lb. Capacity
- Overhead, Open-Floor Lift
- Single-Piece Column Design
- Overall Height: 142″ (11′ 10″)

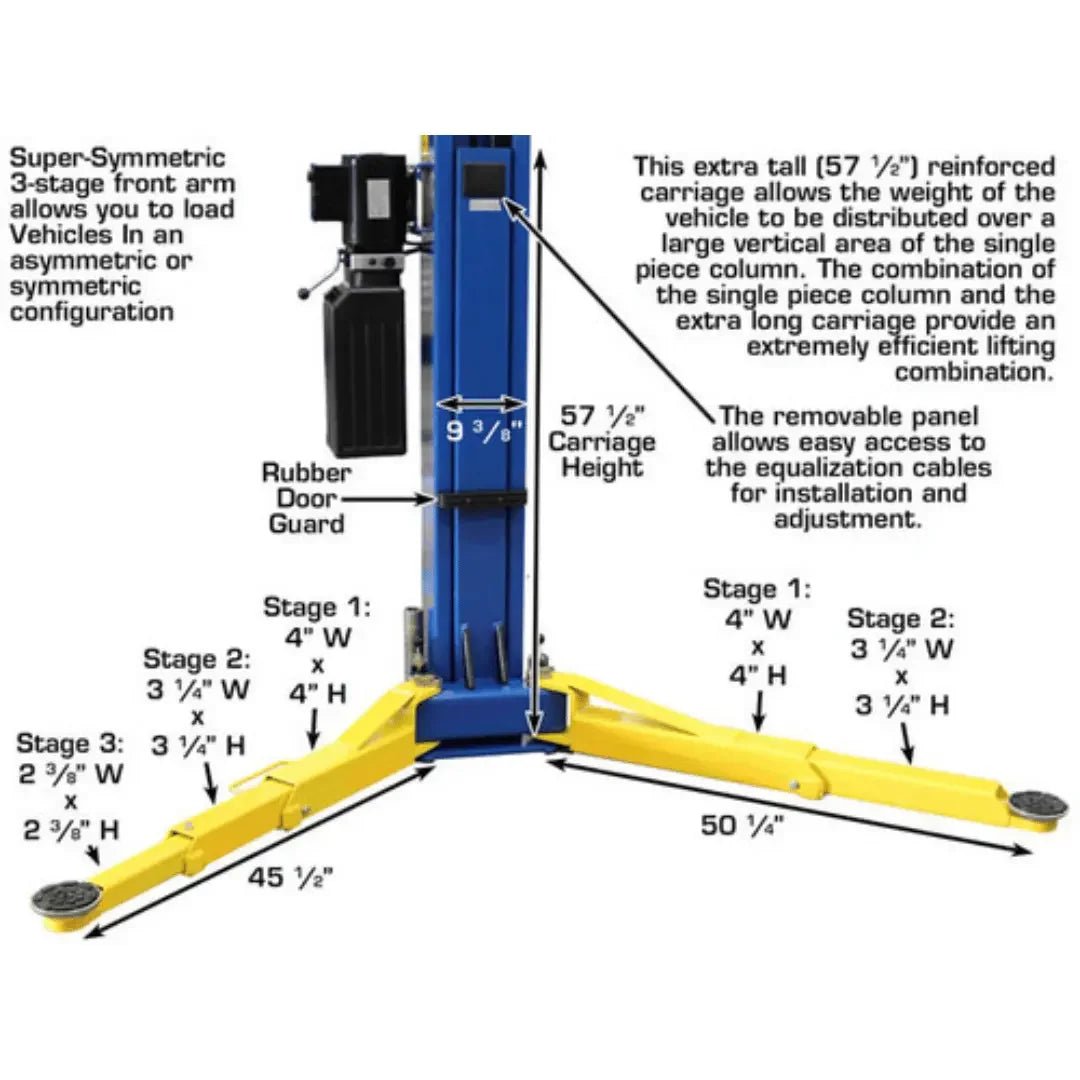

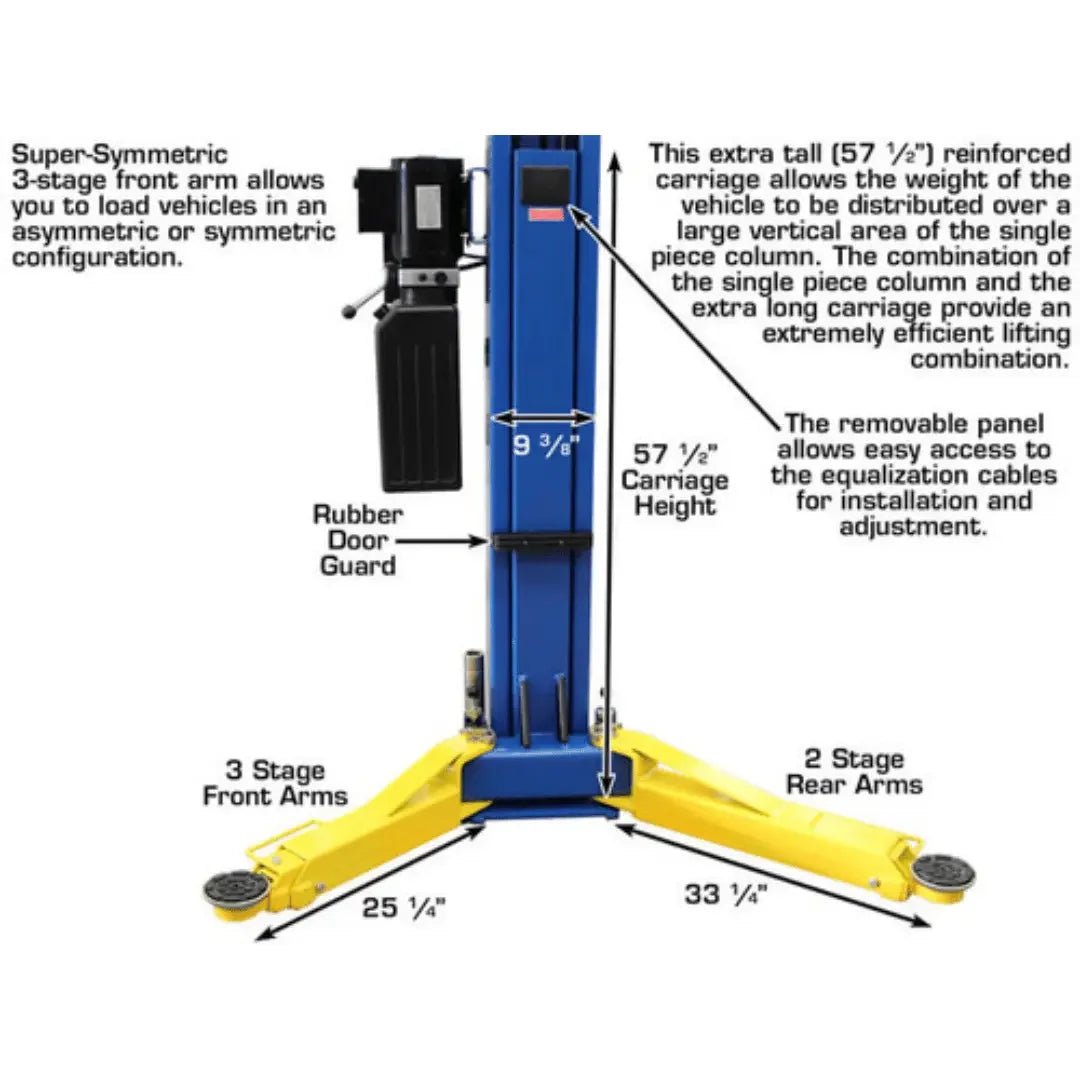

- 3-Stage Front Arms/2-Stage Rear Arms

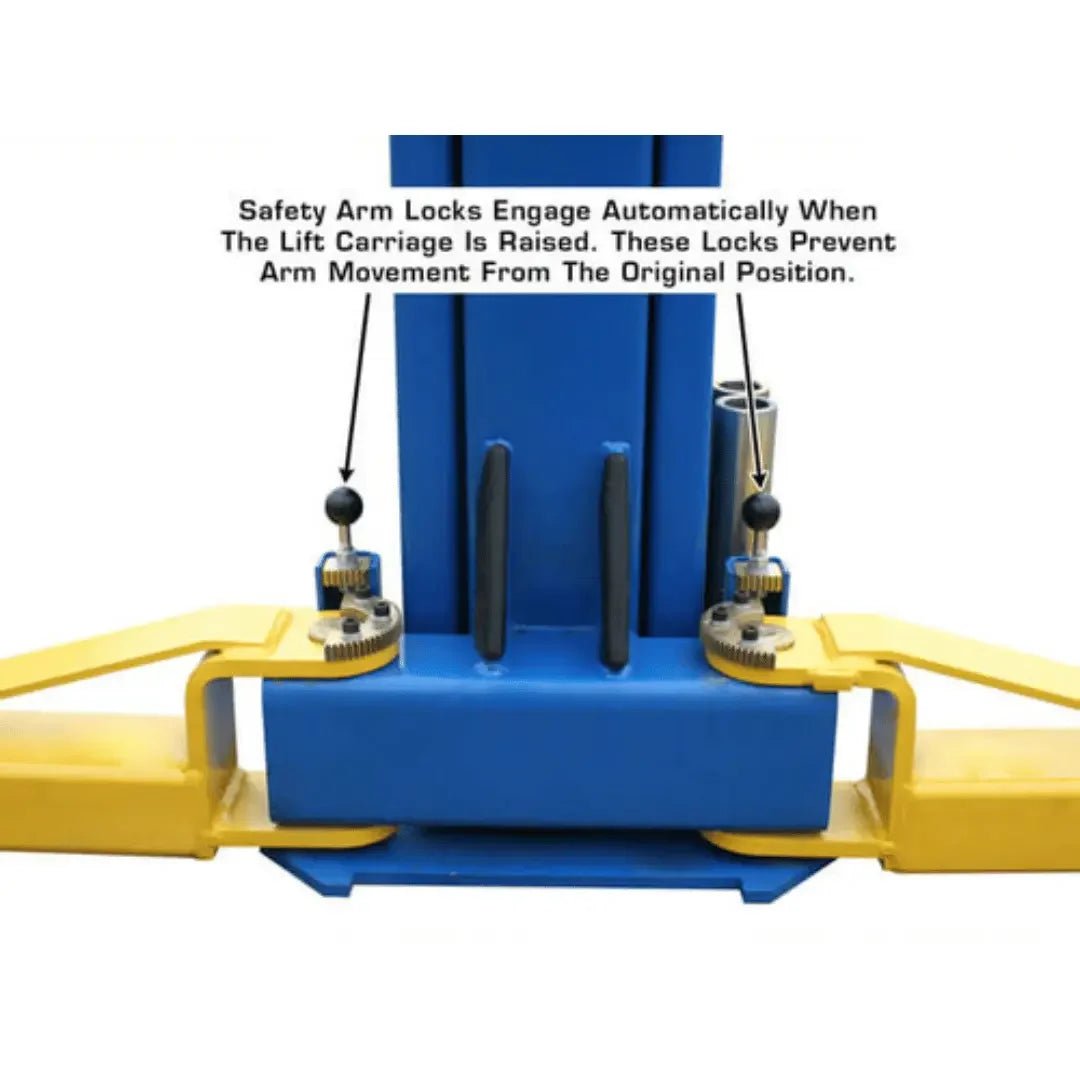

- Automatic Arm Restraints

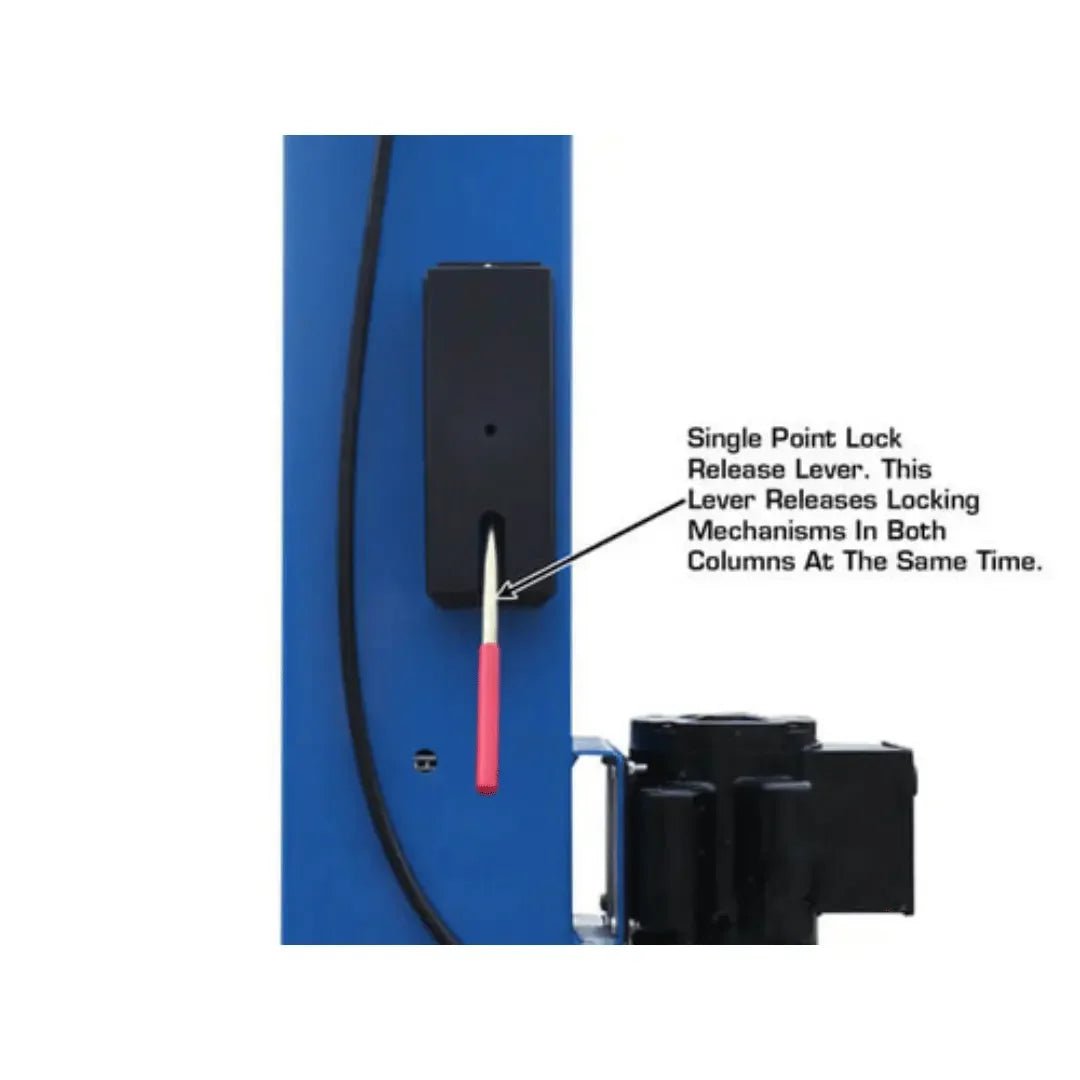

- Single-Point Lock Release
- Rubber Guards on Carriages

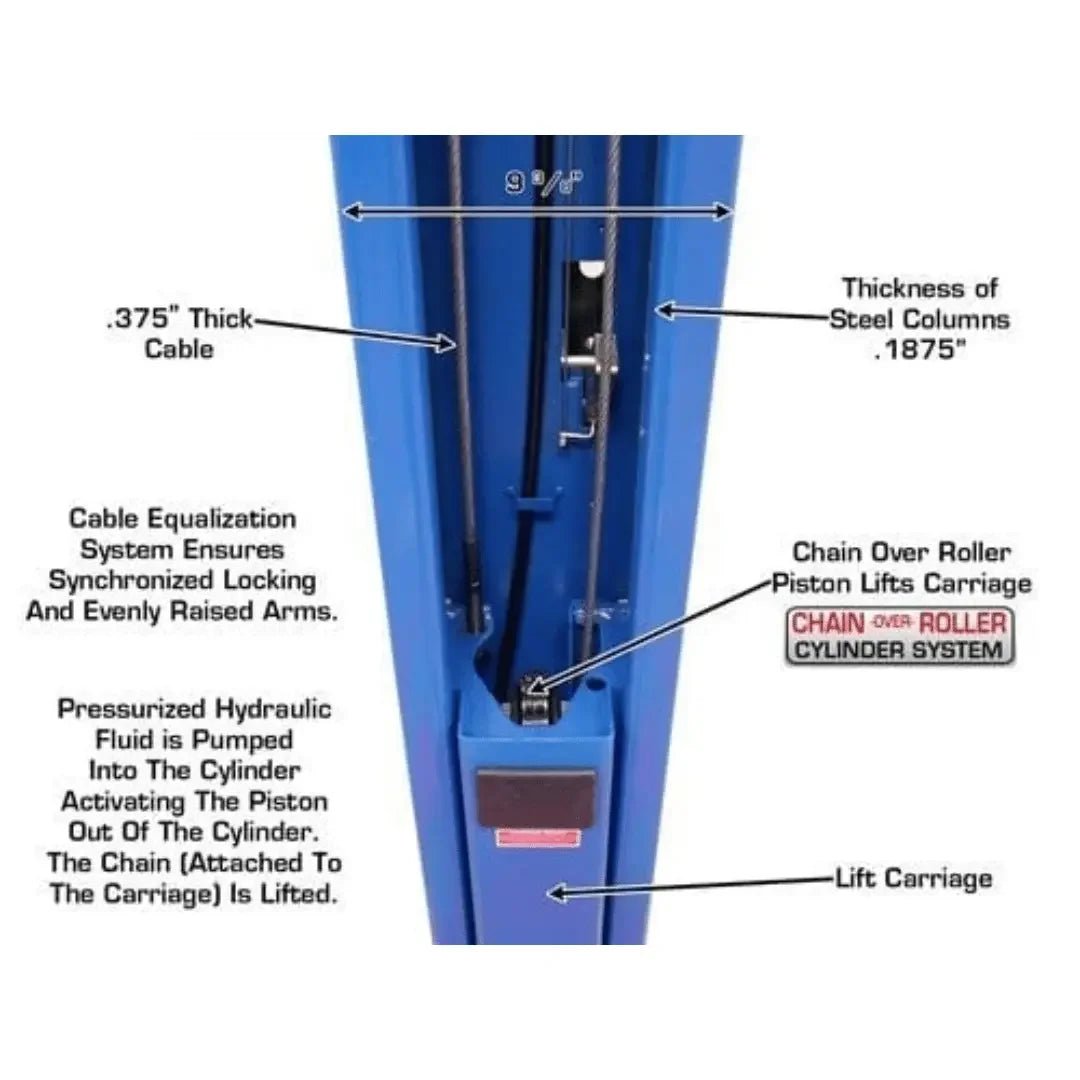

- Dual Hydraulic Chain-Drive Cylinders
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,430 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
- This part number FREIGHT PREPAID
Product Specifications
| Model | ATTD-9OHSC-SS |
| Capacity | 9,000 lbs. |

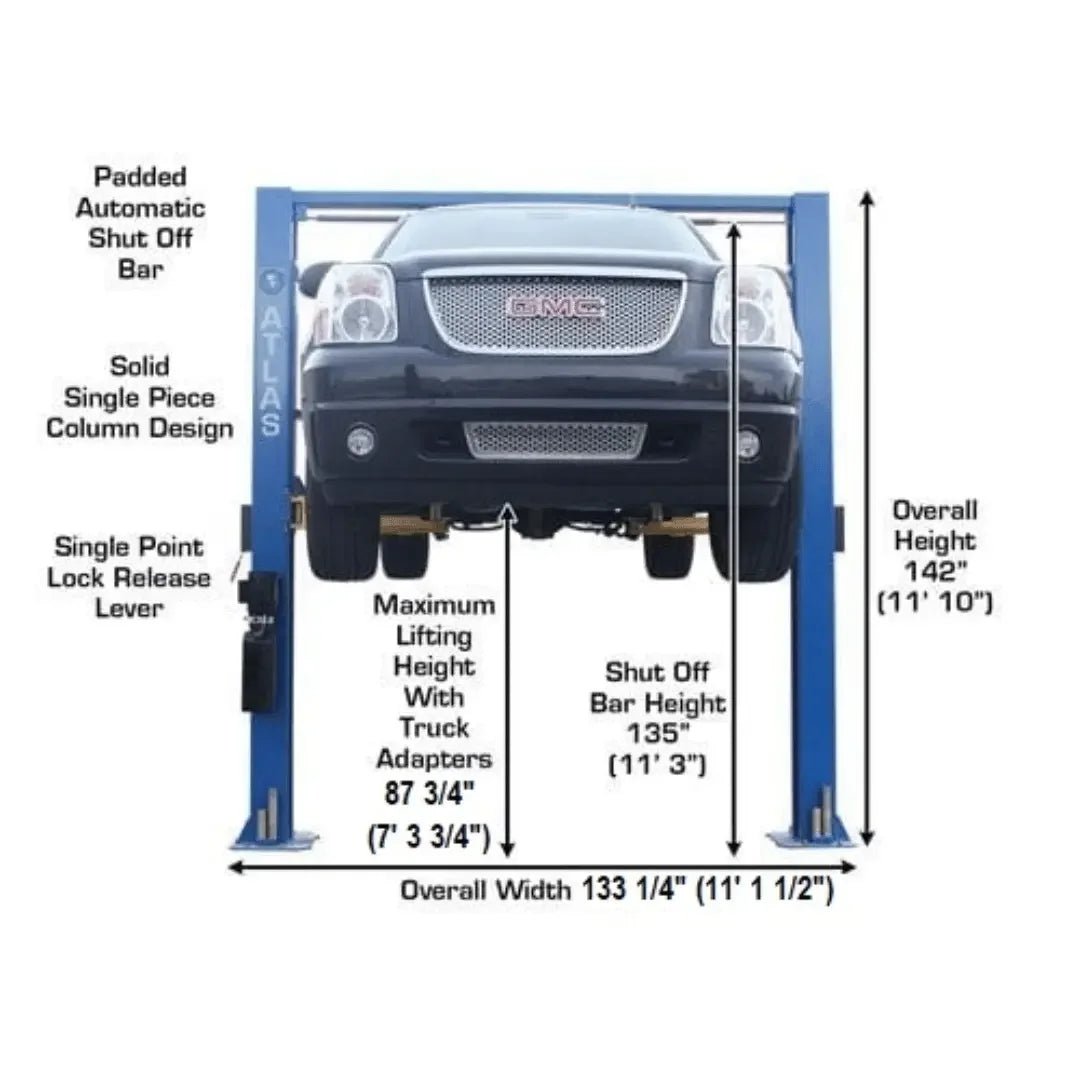

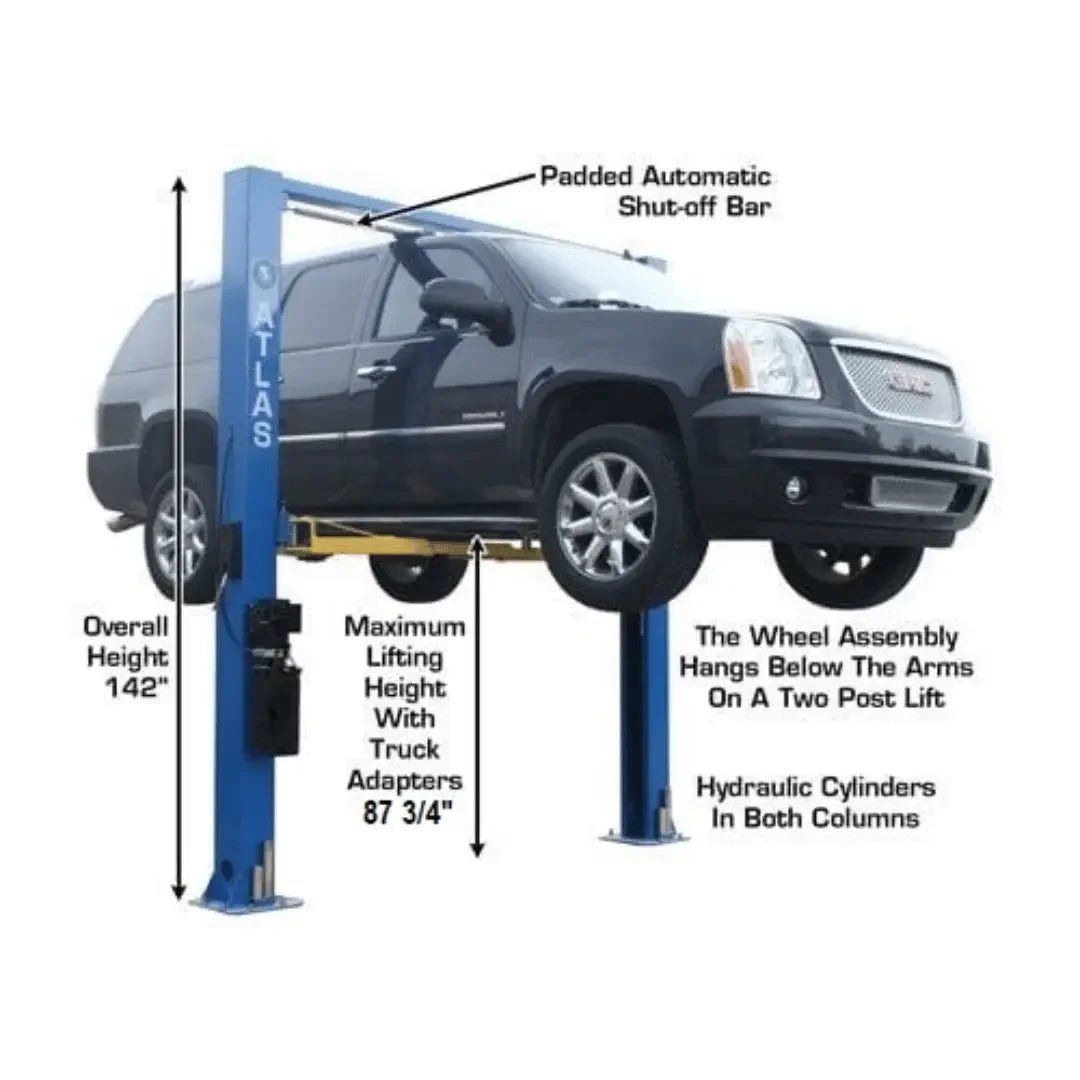

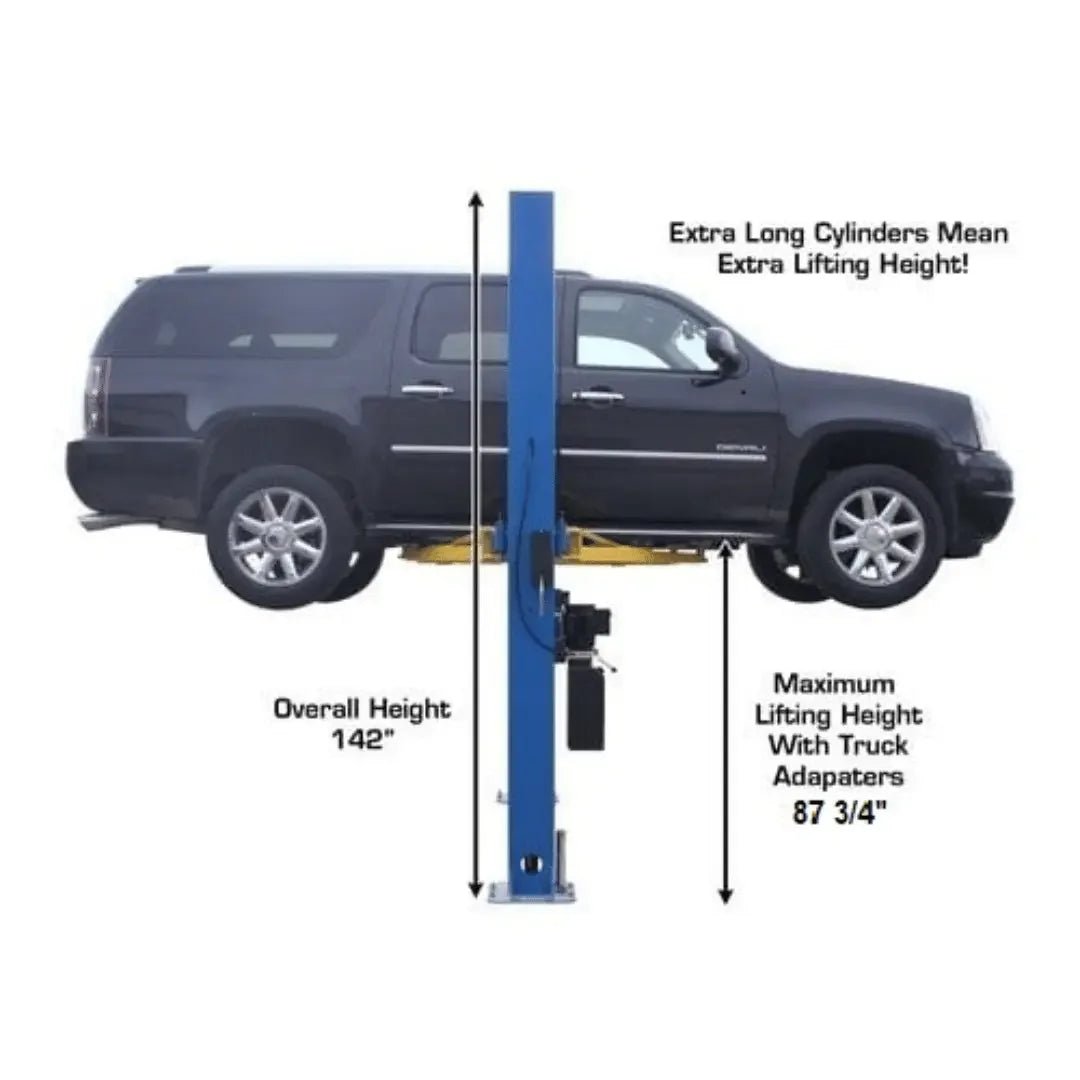

| Overall Height | 142″ (11′ 10″) |

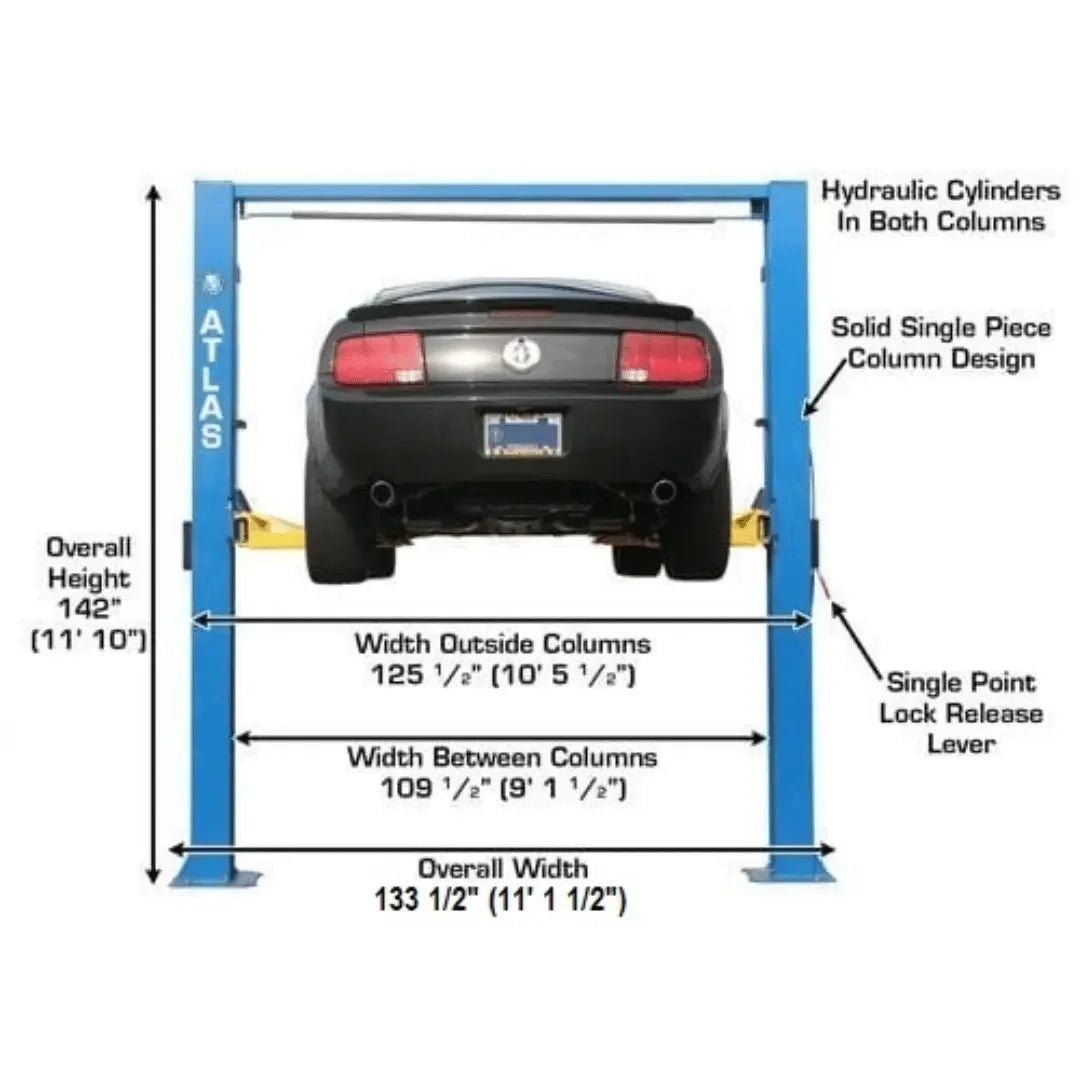

| Overall Floor Width | 133 1/2″ (11′ 1 1/2″) |
| Outside Column to Outside Column | 125 1/2″ (10′ 5 1/2″) |
| Maximum Lift Height (Without Adapters) | 76 3/4″ |

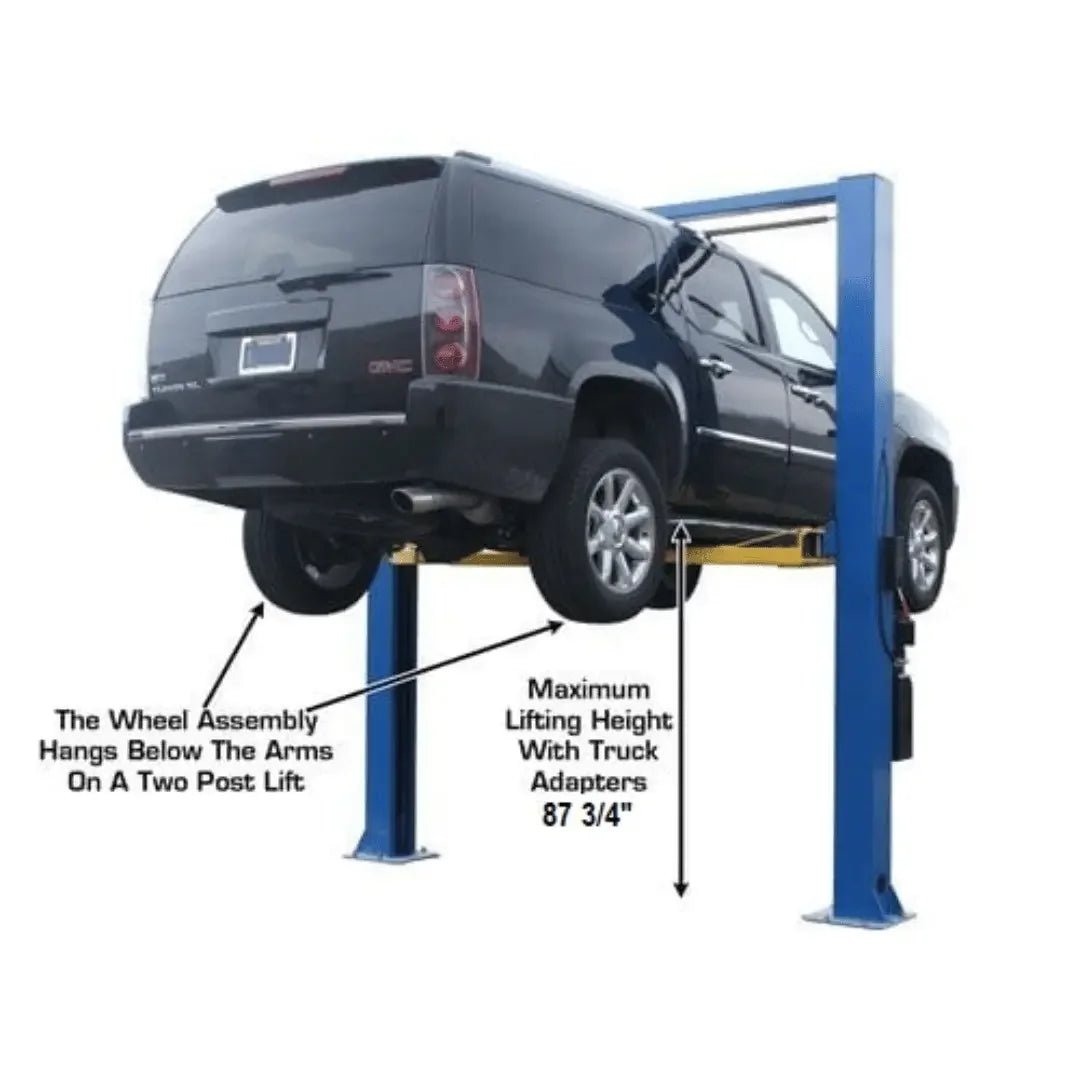

| Maximum Lift Height (With Adapters) | 87 3/4″ |
| Minimum Arm Height | 4″ |
| Inside Column | 109 1/2” (9′ 1 1/2”) |
| Drive Thru | 100 1/2” (8′ 4 1/2”) |

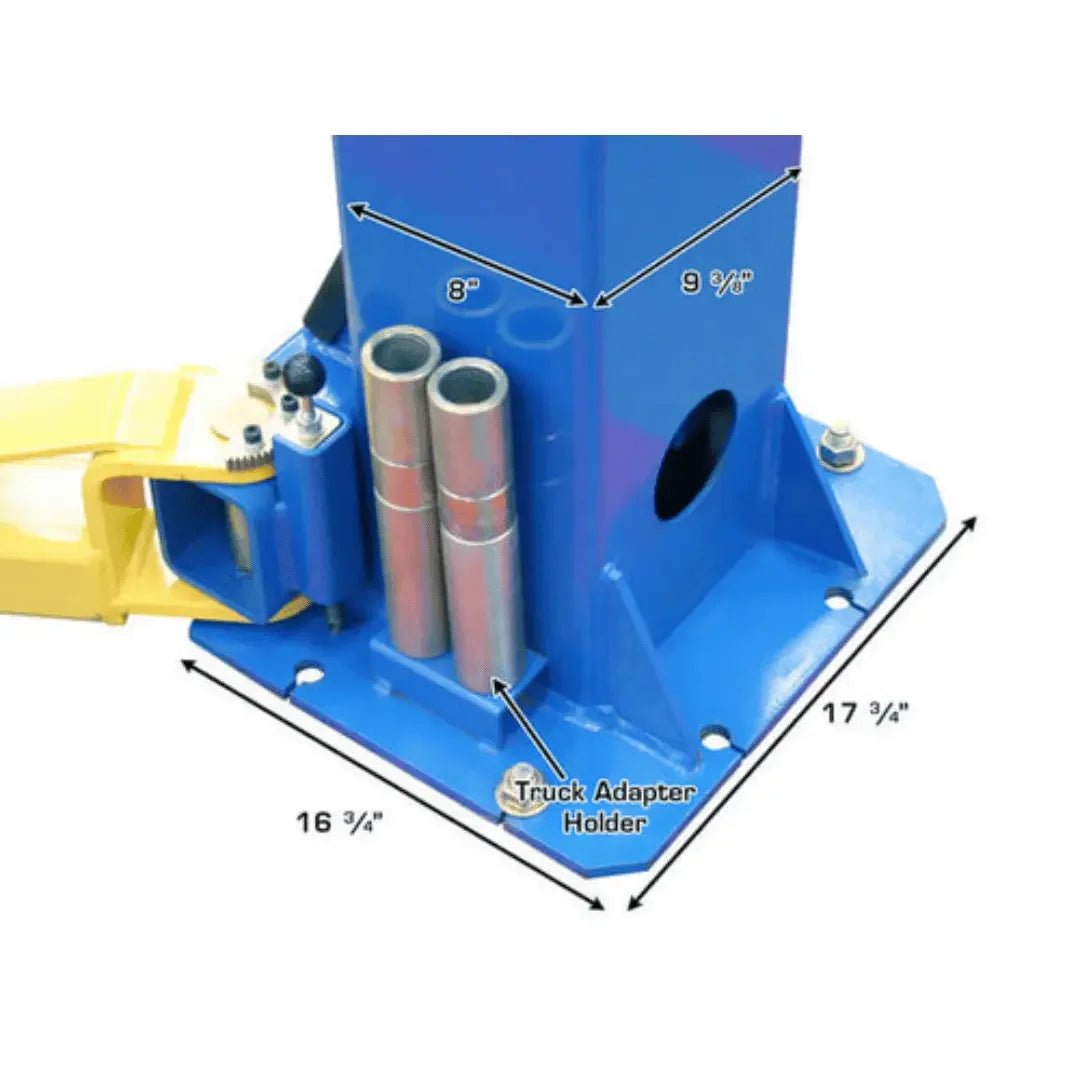

| Column Size | 8″ x 9 3/8″ |
| Column Thickness of Steel | 5mm |
| Base Of Lift | 16 3/4″ x 17 3/4″ |
| Motor/Electrical Requirement | 220 volt single (1) phase. (A 30 amp breaker is recommended) |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |

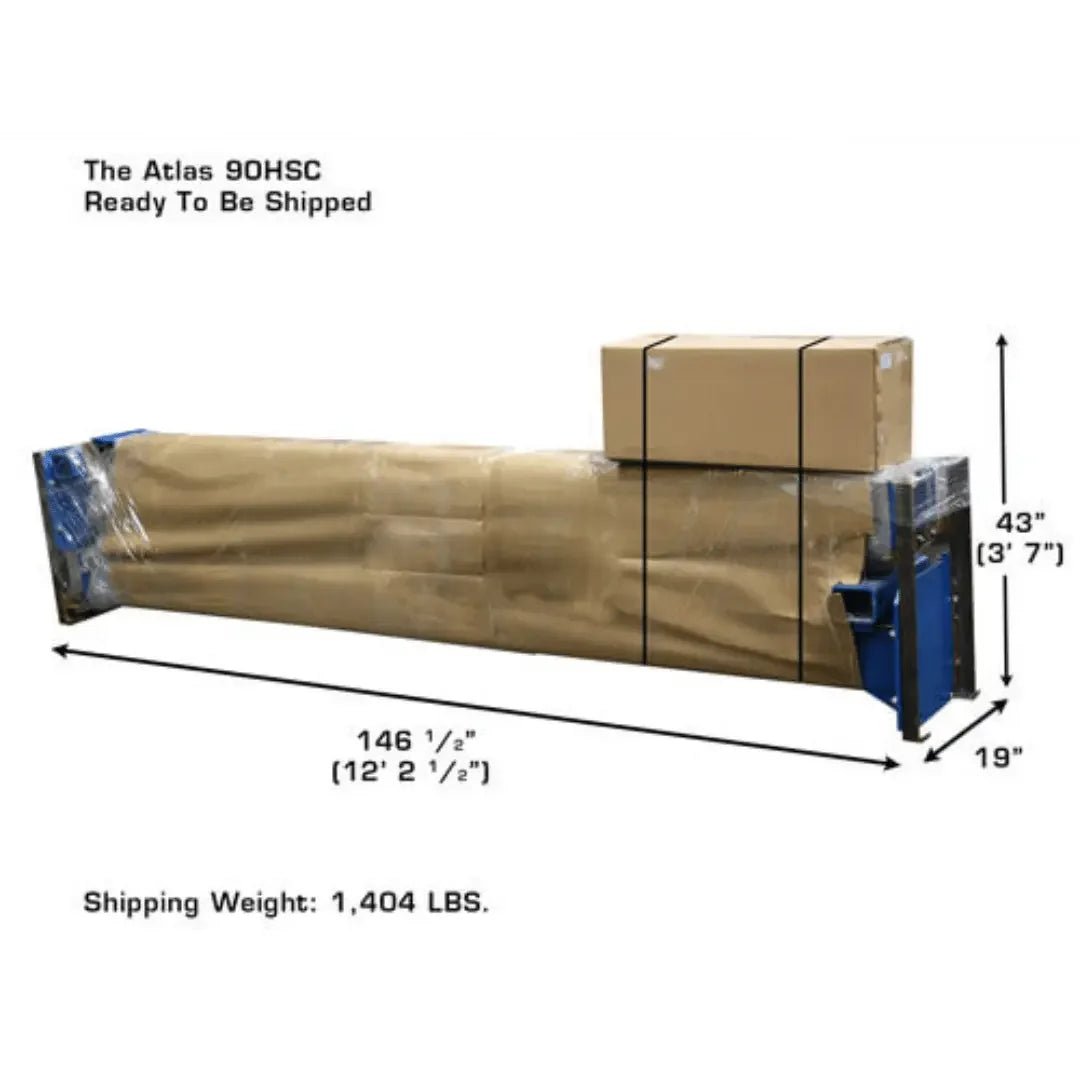

| Shipping Weight | 1,430 Lbs |

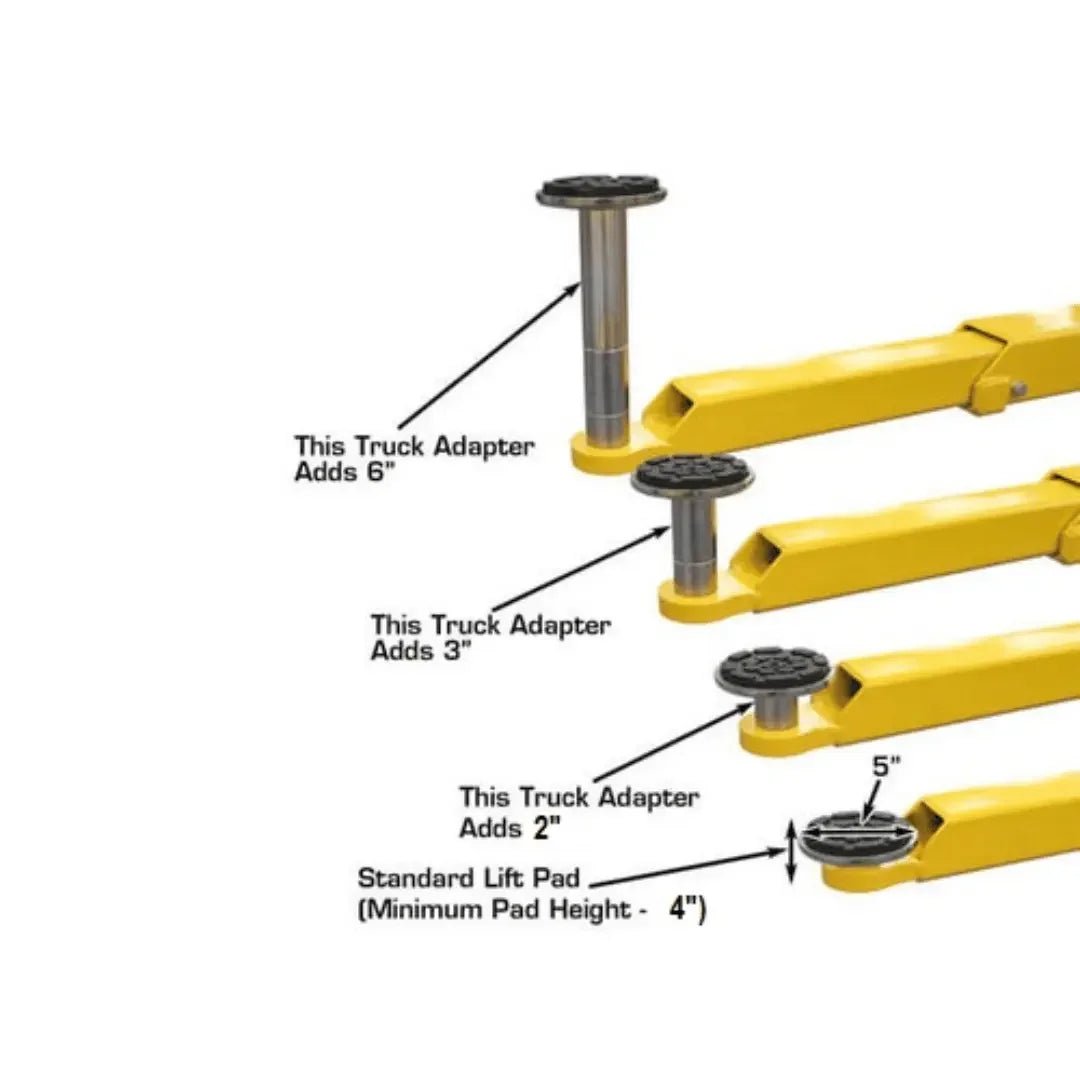

| Adapter Heights | 4 Each 2”, 3”, 6” |
| Arm Hole/Adapter Peg Size | 1.5” |
| Requires a minimum of | 4″ of concrete with a 3000 psi. rating |
