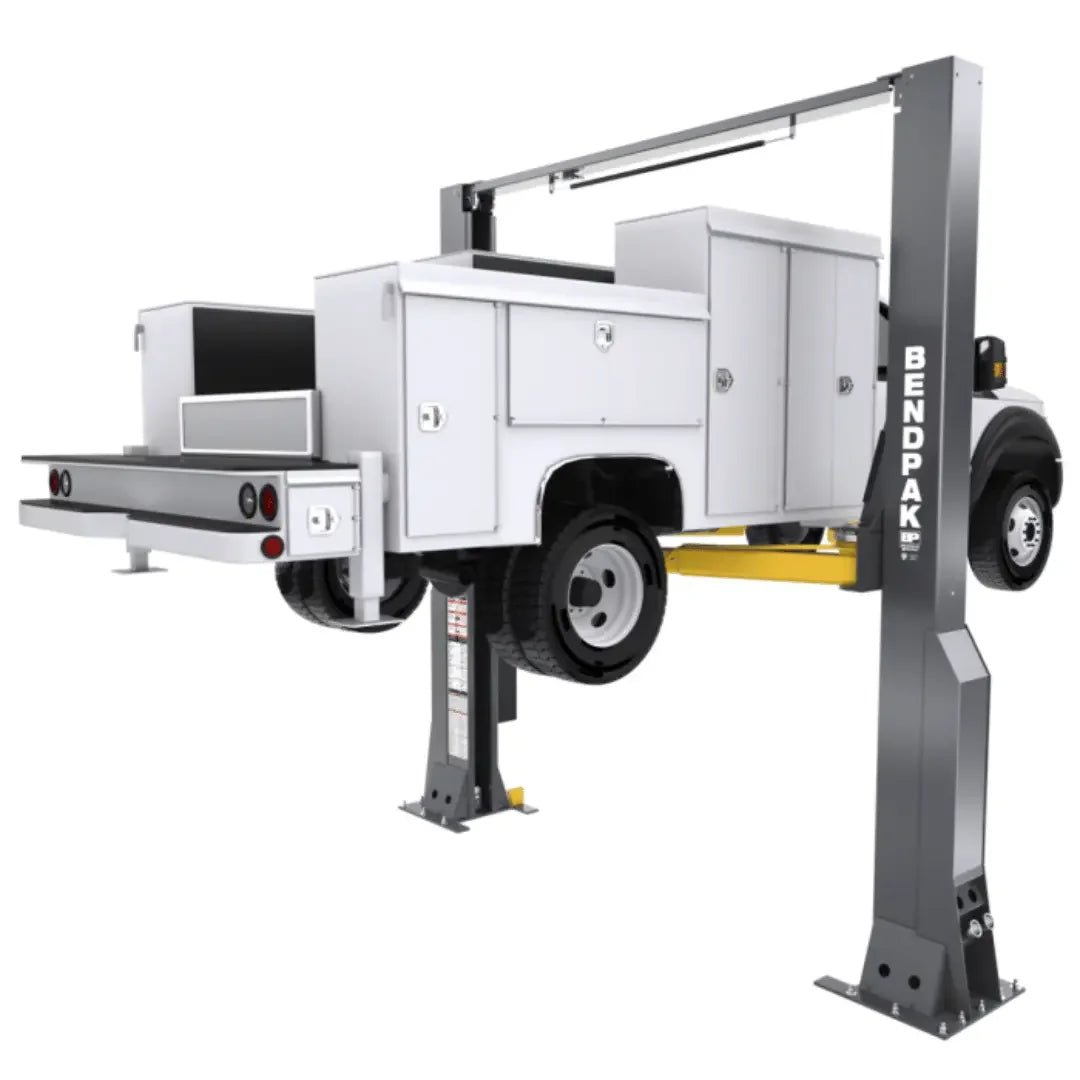

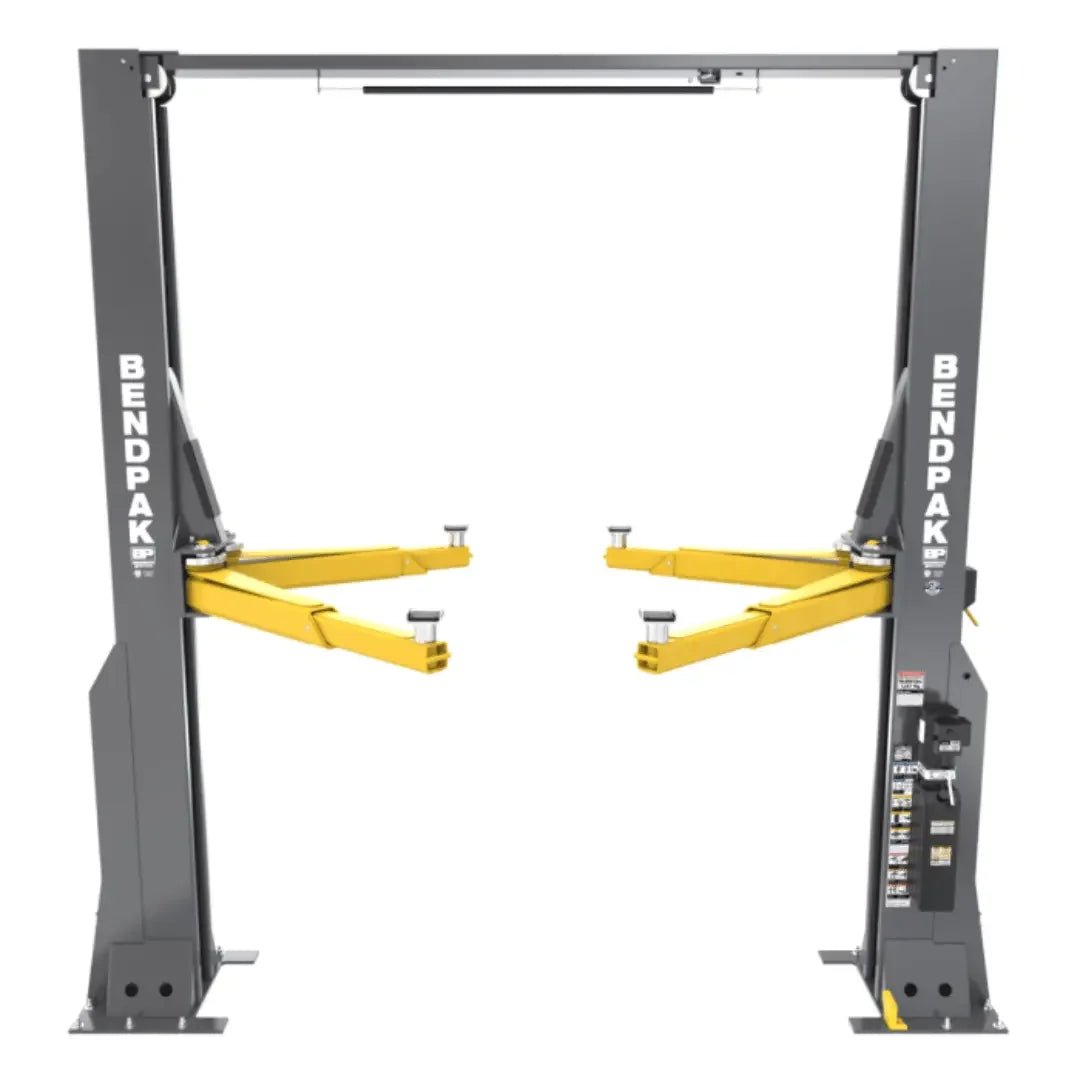

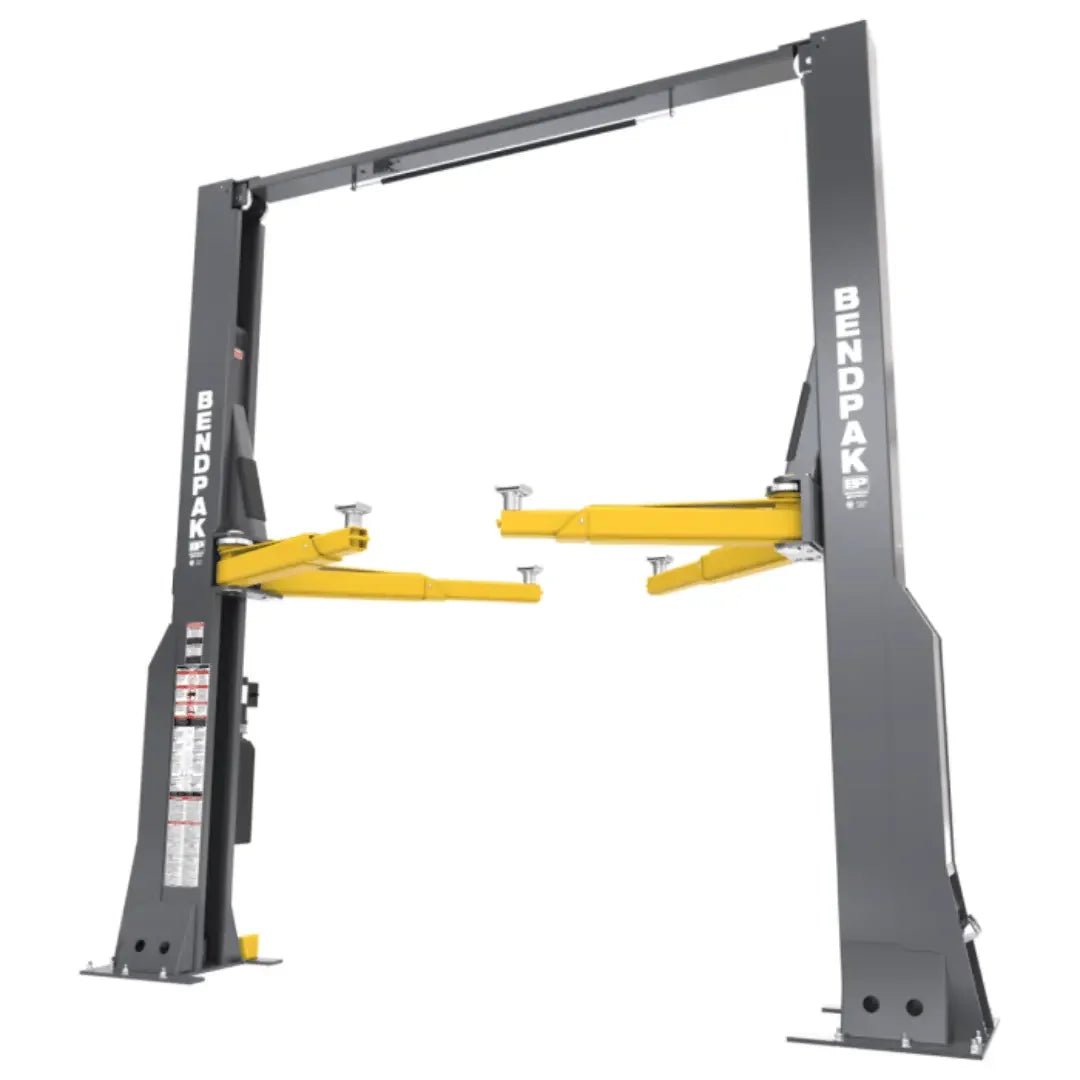

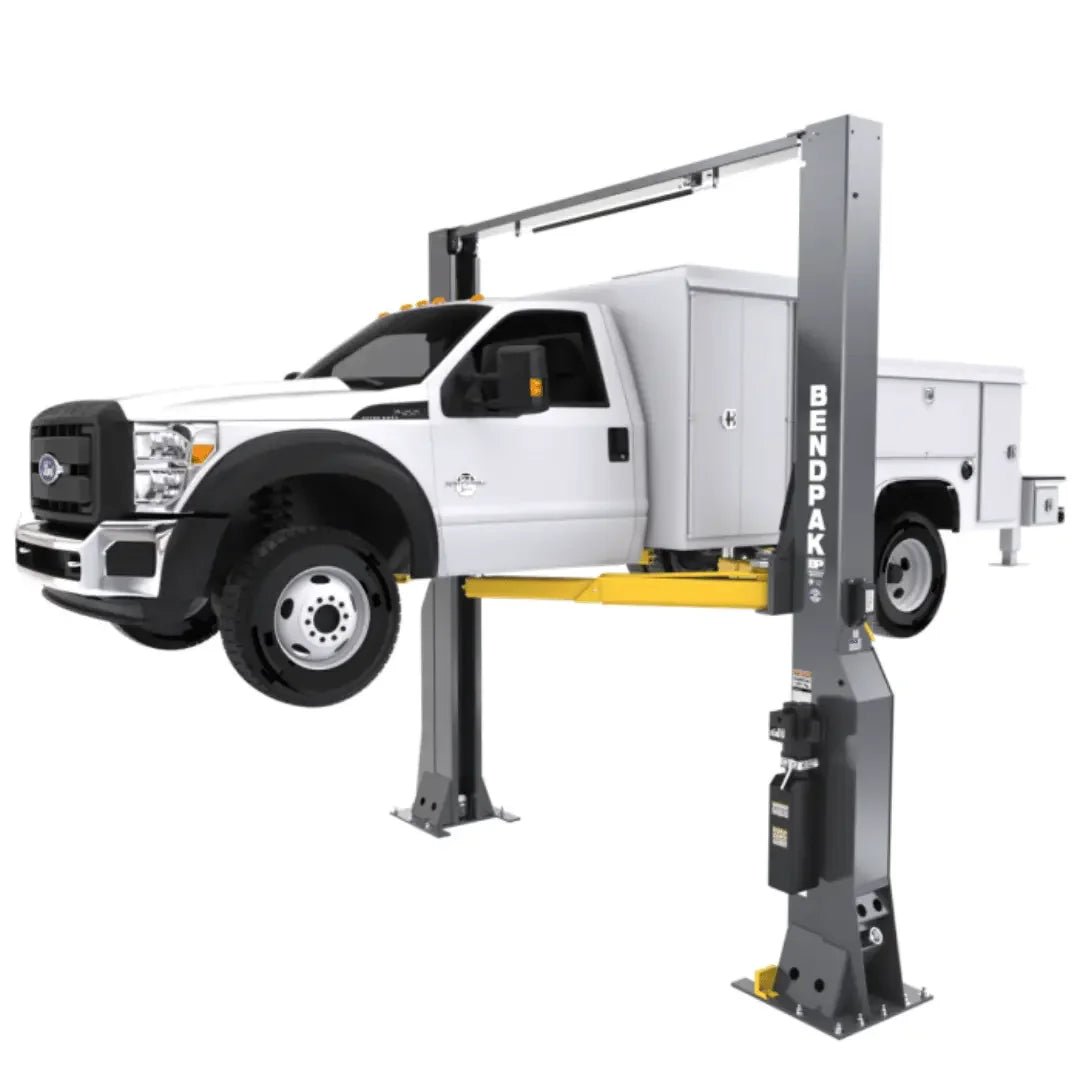

BendPak 16AP 16,000-lbs. Capacity 2 Post High-Rise Car Lift
The 16AP two-post lift delivers exceptional direct-drive lifting performance. Equipped with cutting-edge technology, top-of-the-line materials, and a design that’s ahead of its time, the 16AP is what you’ll want when you’re working on vehicles weighing up to 16,000 lbs.
Experience the next generation of two-post lifting with the revolutionary 16AP – the latest in the AP Series.
Designed to meet the demands of modern automotive shops, the 16AP combines cutting-edge engineering with unparalleled safety and efficiency, ensuring optimal performance for heavy vehicle service.
Redefining Safety and Stability Through ASARS (Automatic Swing Arm Restraint System)
Thanks to BendPak’s patented Automatic Swing Arm Restraint System, you can finally say goodbye to unplanned movement. Engineered to withstand extreme forces, this system delivers over 2000 pounds of load holding force, ensuring secure arm positioning during vehicle service. With a full 360-degree grip and a quick-release lever for effortless operation, ASARS provides unmatched stability and control.
Next-Level Safety Lock System
Experience peace of mind with BendPak’s automatic safety lock system. Designed for seamless operation, this innovative system engages automatically during lift rising operations, with a single-point release for effortless descent. Streamline your workflow and prioritize your safety (and the safety of your vehicle) with BendPak’s industry-leading safety features.
Rugged Enough to Stand up to Anything
Every Super-Duty AP Series lift delivers the no-compromise construction, durability, and other advantages that only the industry’s number one lift manufacturer can provide. Including the highest consumer confidence and safety rating, longest warranty, lowest cost of ownership and superior ergonomics that make your operators more productive and your operation more profitable. Bottom line, BendPak lifts are designed better, built better, and supported better than any other vehicle service lift in the world – which explains why BendPak makes and sells more lifts than anyone.
Product Features
- Durable powder coat finish
- Expandable top beam accommodates wide or narrow drive-thru
- Double-telescoping screw pads offer increased versatility
- Padded overhead safety shutoff bar
- Single-point safety release
- Drop-end arms provide a lower pad height
- Dual hydraulic direct-drive cylinders
- Electric / hydraulic HVLP power system
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Automatic arm restraints withstand over 2000-pounds of side force
- Oversized cable sheave diameter reduces cable fatigue
- ALI Certified
configurations
Product Specifications
| Lifting capacity | 16,000 lbs. / 7,257 kg |
| A – Under Clearance (Top Lock) | 76 in. / 1,930 mm |
| B1 – Max. Lifting Height (Top Lock) | 82.25 in. / 2,089 mm |
| B2 – Max Rise | 82.75 in. / 2,102 mm |
| C – Max. Lifting Height w/ Adapters | 89.75 in. / 2,280 mm |
| D – Min. Height w/ Pad | 7.75 in. / 195 mm |
| E – Overall Height | 169 in. / 4,294 mm |
| F – Overall Width | 168 in. / 4,267 mm |
| G – Outside Posts | 149 in. / 3,785 mm |
| H – Inside Posts | 126 in. / 3,199 mm |
| I – Drive-Thru Width | 107.75 in. / 2,740 mm |
| J – Floor to Top Switch | 163 in. / 4,128 mm |
| K –Lift Arm Reach | 36 in. / 931 mm (min) | 65 in. / 1,651 mm (max) |
| L – Base Plate Width | 28 in. / 710 mm |
| M – Post to Base Plate | 9.5 in. / 241 mm |
| Max. load per Lift Arm | 4,000 lbs. / 2,268 kg |
| Motor | 220 VAC, 60 Hz, 1 Phase |
| Sound | <70 dB |
Pick Up and Delivery
Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions. 866-774-7743
