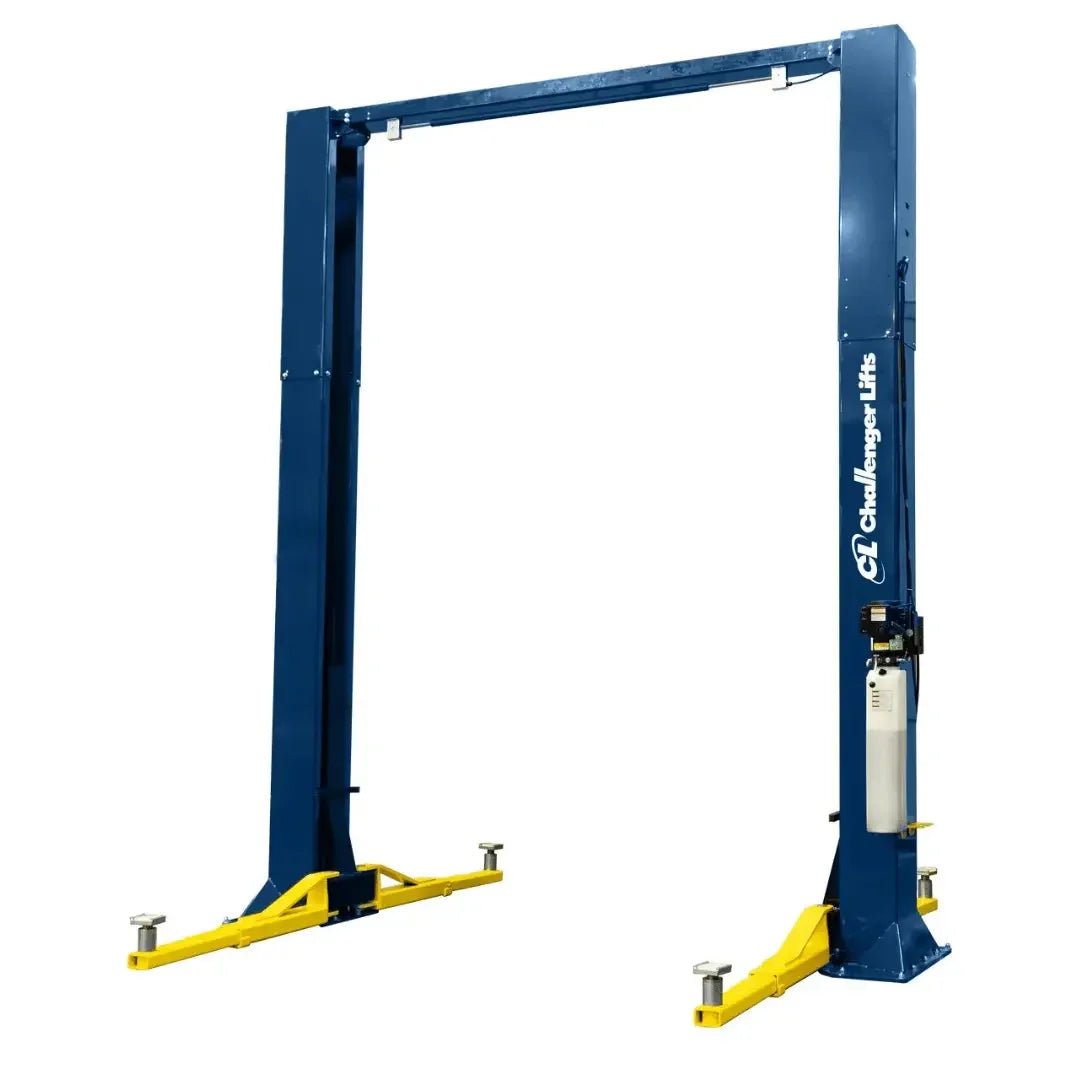

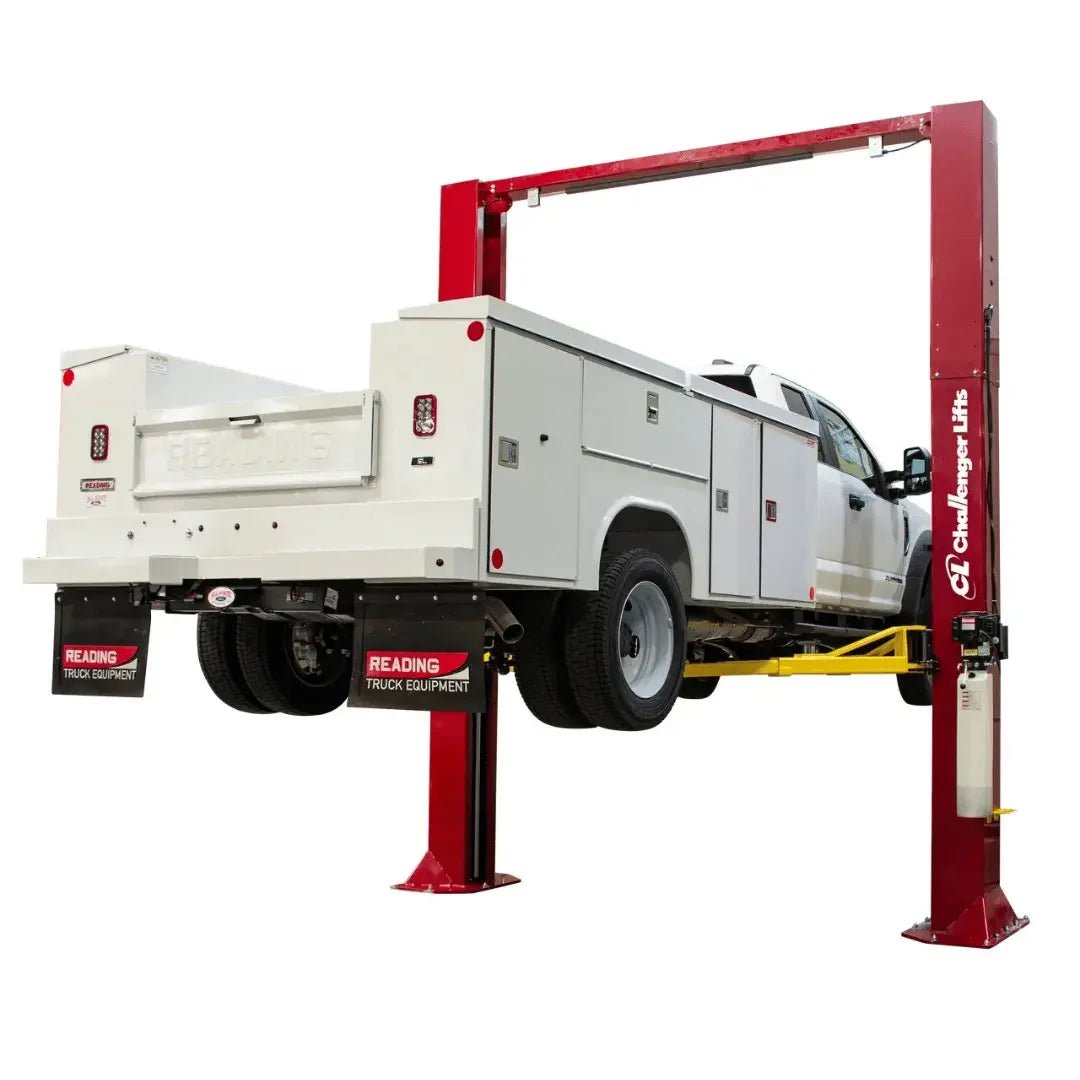

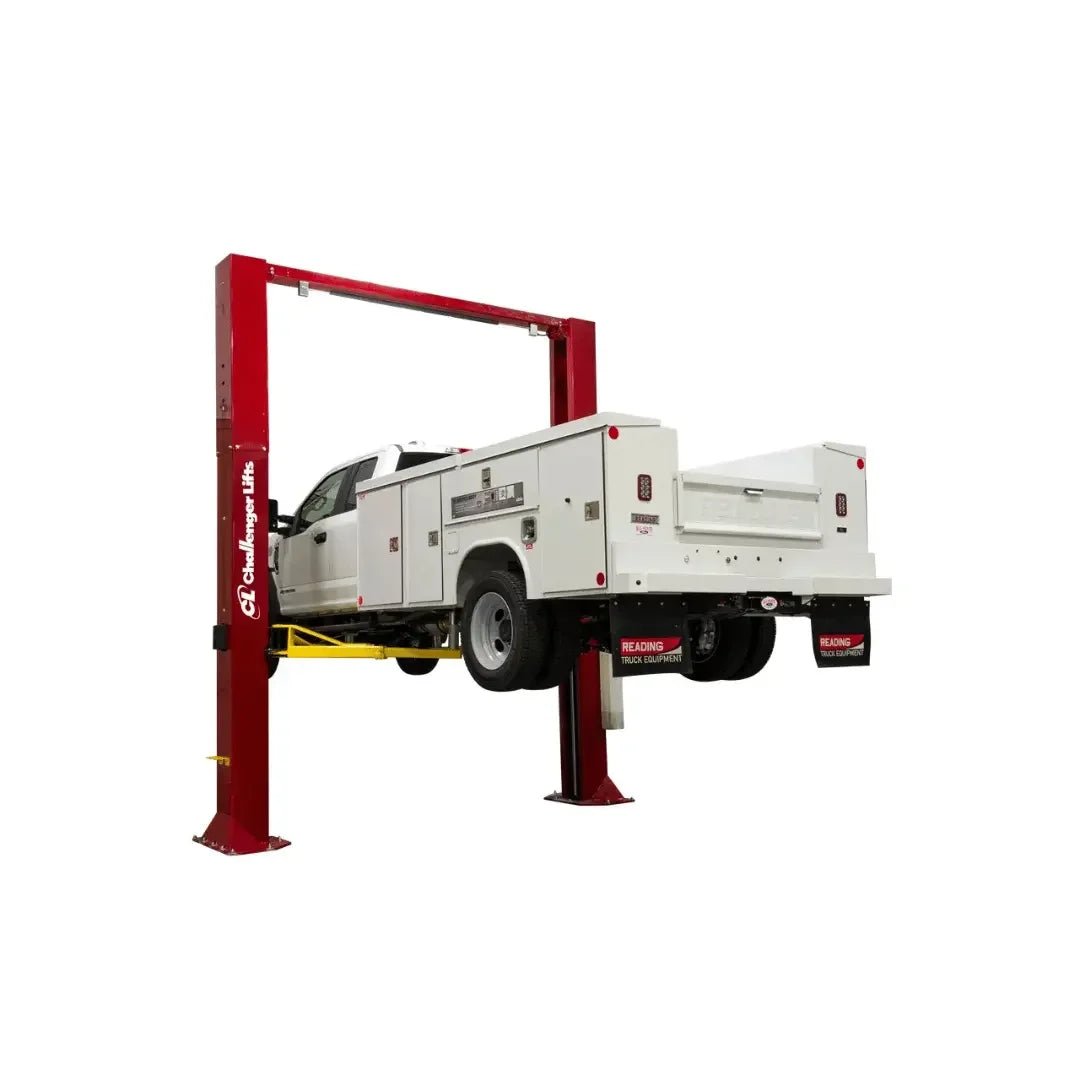

Challenger Lifts CL20-0 20000 lbs Heavy-Duty 2 Post Adjustable Lift
Introducing our heavy-duty lifting solution, specifically engineered for vehicles weighing up to 20,000 lbs. Our lift is wider and taller, providing a robust and durable option for your fleet maintenance needs. The 2-Stage arms ensure stability during lifting, while the adjustable width makes it suitable for various vehicle sizes. The optional 2′ column extensions allow your shop to handle even taller vehicles.
This versatile lift is essential for any fleet maintenance operation. With adjustable columns and superior strength, this lift is your ultimate lifting solution for heavy-duty vehicles. ALI® Certified.
Product Features
- 20,000 lbs. capacity
- 2-Stage Front & Rear arms
- Adjustable width from 12′ 10.75″ to 13′ 10.75″
- Adjustable columns allow for easy installation
- Optional 2′ Column Extensions available
Product Specifications
| Model | CL20-0 |
|---|---|
| Description | 20K Standard |
| Lifting Capacity | 20,000 lbs. |
| Lift Configuration | Symmetric |
| Arm Configuration | 2-Stage Front/Rear |
| Maximum Load Per Arm | 5,000 lbs. |
| Rise Height (Maximum with Stack Adapters) | Min. 76.6″ Max. 84.6″ |
| Overall Height Options | 162″, 168″, 174″ |
| Overall Width Options | 166.75″, 160.75″, 154.75″ |
| Drive-Thru Clearance | 104.25″, 110.25″, 116.25″ |
| Floor to Overhead Switch | 155″, 161″, 167″ |
| Arm Reach | Min. 38.5″ Max. 62″ |
| Screw Pad Height | Min. 6.2″ Max. 7.6″ |
| Between Columns | 120″, 126″, 132″ |
| Motor/Voltage | 3HP, 1Ph, 60Hz, 208/230v |
| Air Supply Required | 90-120 psi |
| Rise Time | 62s |
| Min. Ceiling Height Required | 13’8″, 14’2″, 14’8″ |
