Description

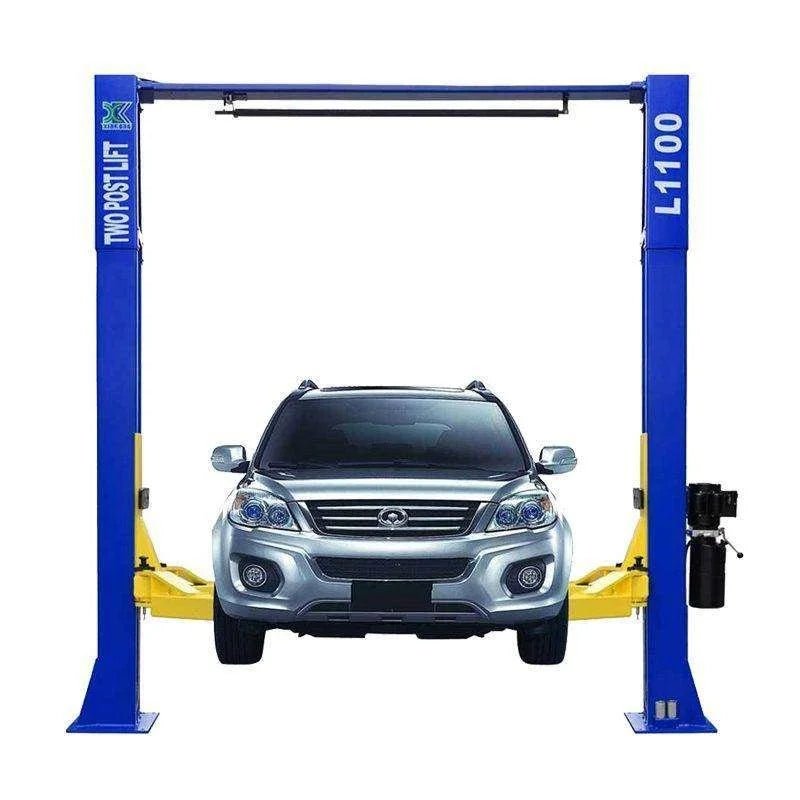

L1100 2-Post Car Lift Auto Truck Hoist 10,000 lb Overhead Clear Floor 220V

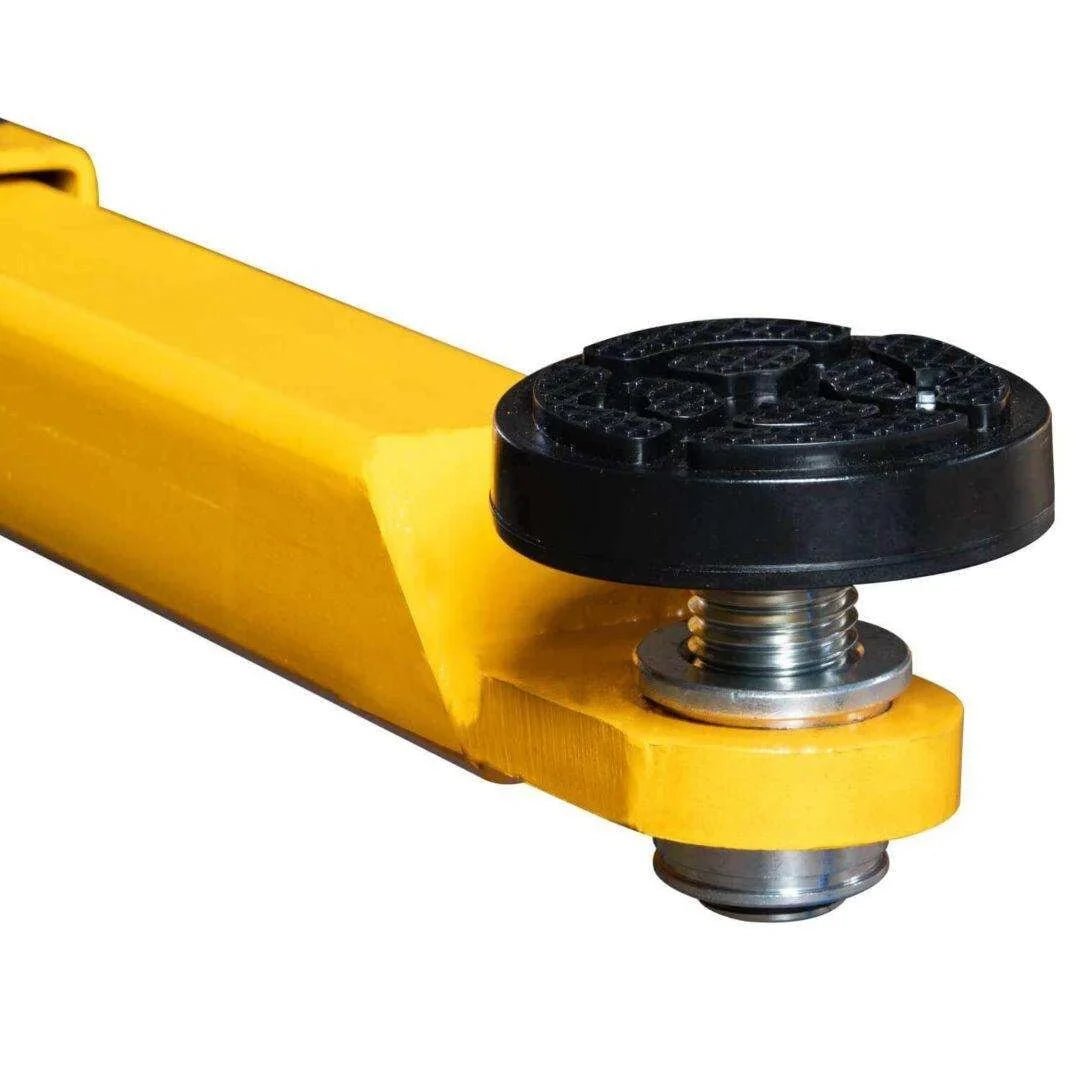

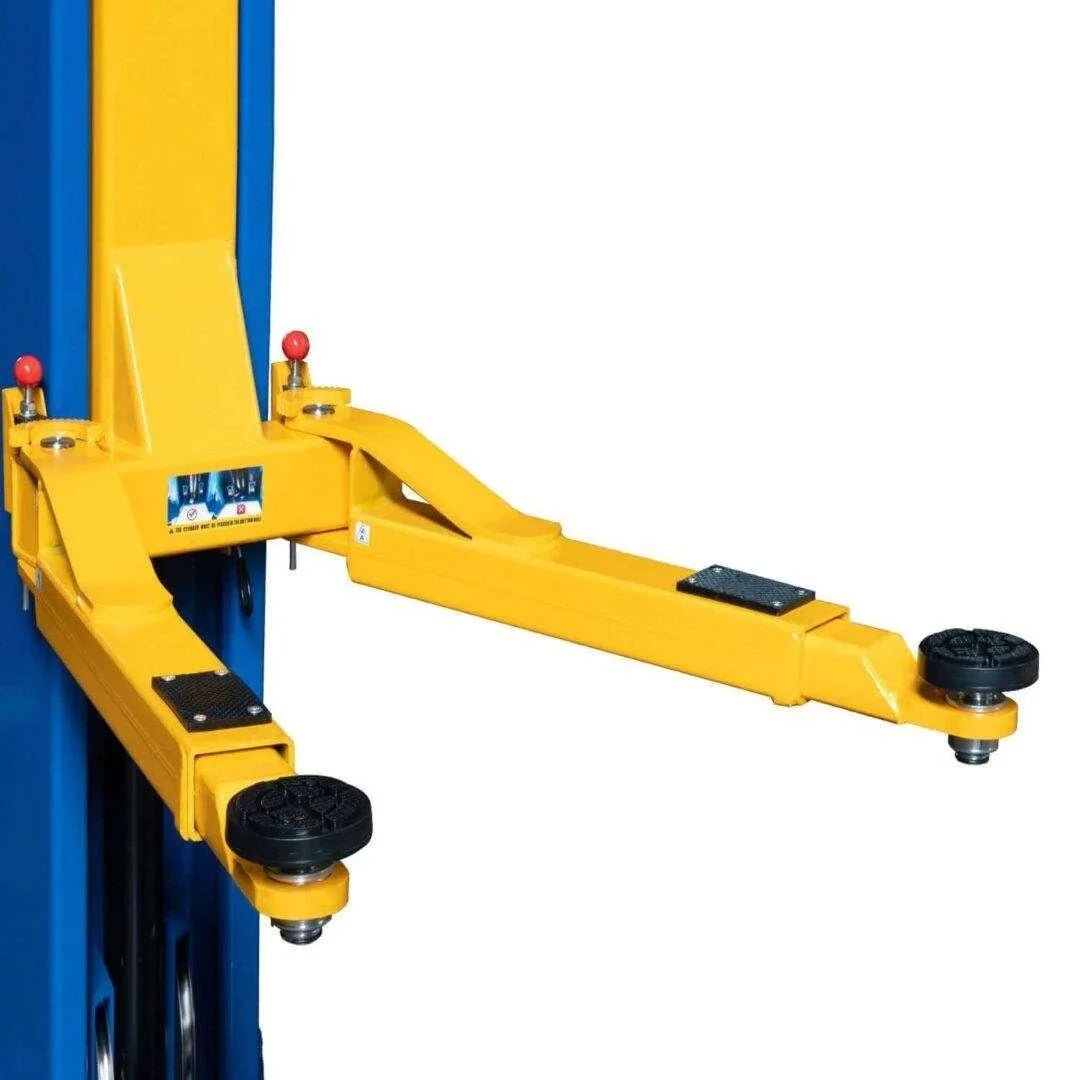

Auto Car Lift L1100 220V 60HZ 1PH 3HP MOTOR features Symmetrical Arm Assembly with Straight Front / Rear 2 Stage reach from 30 1/4″ to 49 1/5″ and Equal length of front and rear arm design Drop-in type lifting pads and truck adapters are included.
Features:
Safety Mechanism:
-
Double Point Safety Lock Release
-
Automatic arm lock restraints
-
Relief valve built in power pump to prevent overloading
-
Door guards protection rubber
-
Up-limit switch to protect cylinders working stroke used in safe length scope
-
Heavy duty 5/16″ diameter cable and 4.56″ pulley reduce high stress on synchronization process and increase cable life
-

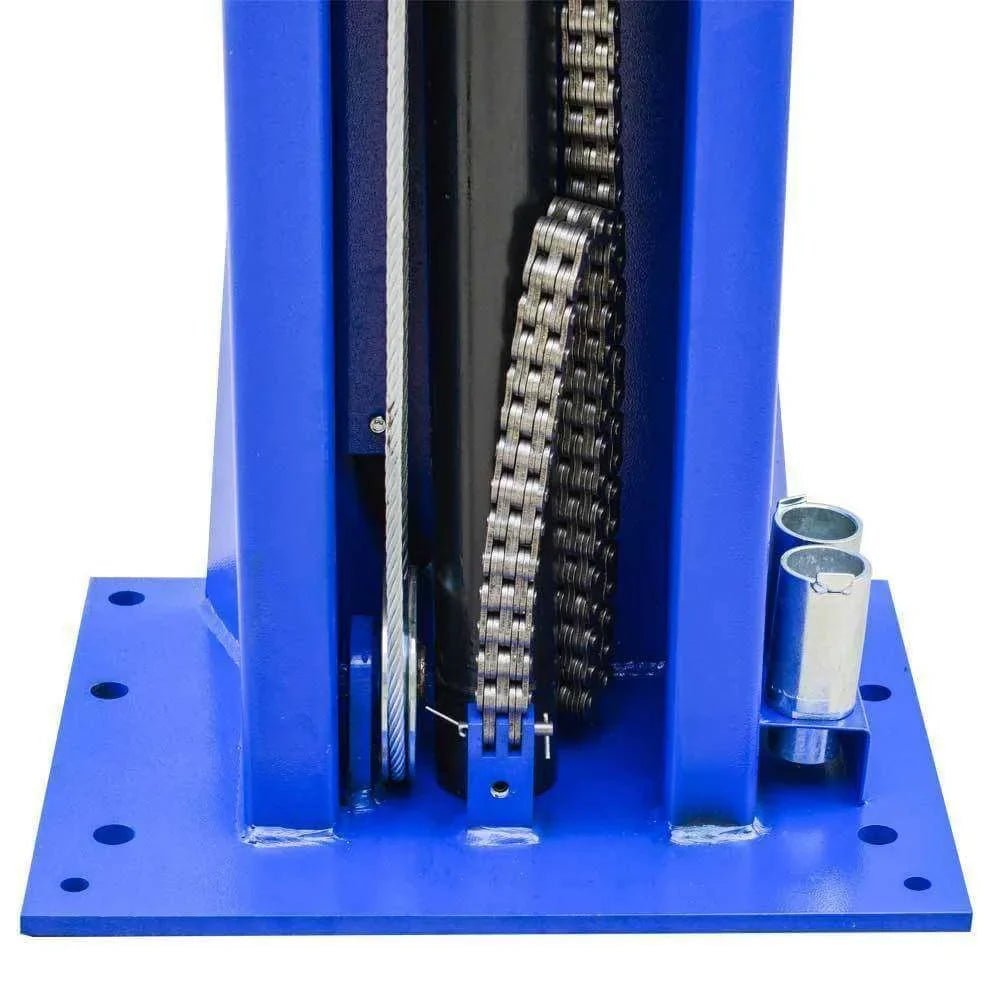

Stiffened base plate 5/8″ thickness
-
Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down
-
Anchor bolts/mounting hardware included
Control System:
-
Lifting operation by pressing “UP” button on motor
-
Manual lowering operation by pressing lever
-
Relief valve built in power pump to prevent overloading
-
1 sets truck adapters included
-
Lifting Capacity: 10,000 lbs
-
The overall Height 145-5/8″
-
The overall Width 133-1/4″
-
Column Width 10.62″
-
Base Width 18.89″
-
Column Thickness of Steel 3/16″
-
Carriage Thickness of Steel 15/64″
-
Arms Thickness of Steel 15/64″
-
Front Arm 30.7″ to 48
-
Rear Arm 30.7″ to 48″
-
Min pad height: 3-7/8″
-
Lift height max: 78-7/8″
-
Drive-thru width clearance: 100″
-
Time to full rise: 20-60 sec
-
Shipping Weight: 1460 lbs
Site Selection:
Before installing your auto lift, check the following:
-
Lift Location: Always use architect’s plans when available.
-
Check layout dimension against floor plan requirements making sure adequate space is available.
-
Your lift requires a 220v, 30amp, single phase, grounded electrical source. There should be room enough to operate the lift in a safe manner and without restrictions.
-
Overhead Area: The area where the lift will be located should be free of overhead obstructions such as heaters, building supports, electrical lines, doors, lights, etc.
-
Floor Area: Visually inspect the site where the lift is to be installed and check for cracked or defective concrete.
Floor Requirements:
-
A level floor is suggested for proper installation and level lifting. Small differences in floor slopes may be compensated for by proper shimming. If a floor is of questionable slope, consider a survey of the site and/or the possibility of pouring a new level concrete slab.
-
New concrete must be adequately cured for at least 30 days.
-
DO NOT install auto lift on any asphalt surface or any surface other than concrete.
-
DO NOT install auto lift on expansion seams or on cracked or defective concrete.
-
DO NOT install auto lift on a second/elevated floor without first consulting building architect.
-
DO NOT install auto lift outdoors unless special consideration has been made to protect the power unit from inclement weather conditions.
Concrete Specifications:
All models MUST be installed on 3,000 PSI reinforced concrete only. Additional concrete requirements will vary by lift.
-
8,500 lbs – 10,000 lbs lifts: 4″ Minimum Thickness
-
11,000 lbs – 15,000 lbs lifts: 6″ Minimum Thickness
specifications:
- Condition: New
- Modified Item: No
- Custom Bundle: No
- Material: Metal
- Capacity: 10000lbs.
- Type: 2-Post Lift
- Features: Hydraulic
- Vehicle Type: Passenger Vehicle
- Brand: ,XK USA
Shipping Information:
-
Free Shipping: Residential delivery within 5 to 8 days to all U.S. states.
