Description
-
Industry leading 3 YEAR WARRANTY (a $499 value!)
-
Three Sets of Truck Adapters (High Extension) Included
-

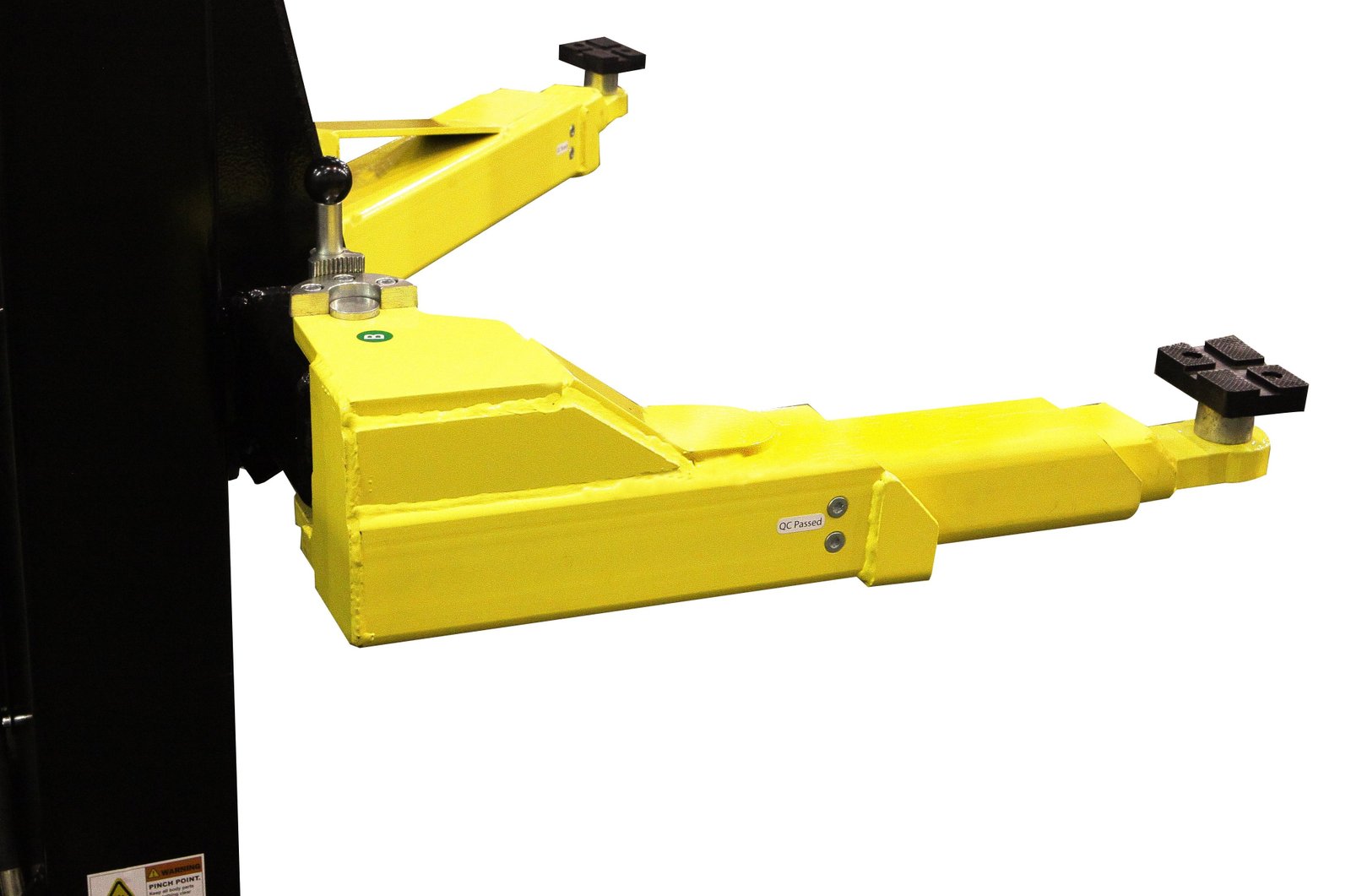

Three variable Drive Through 88 1/8″, 94 1/16″, 100″! Triple Telescoping Arm Design!
-
Dual Direct Drive Hydraulic Cylinders
-
All Robot Welded Structure with Durable Powder Coated Finish
-
Flawless Manual Single Point Lock Release System
-
Oversized 57″ Tall Carriages

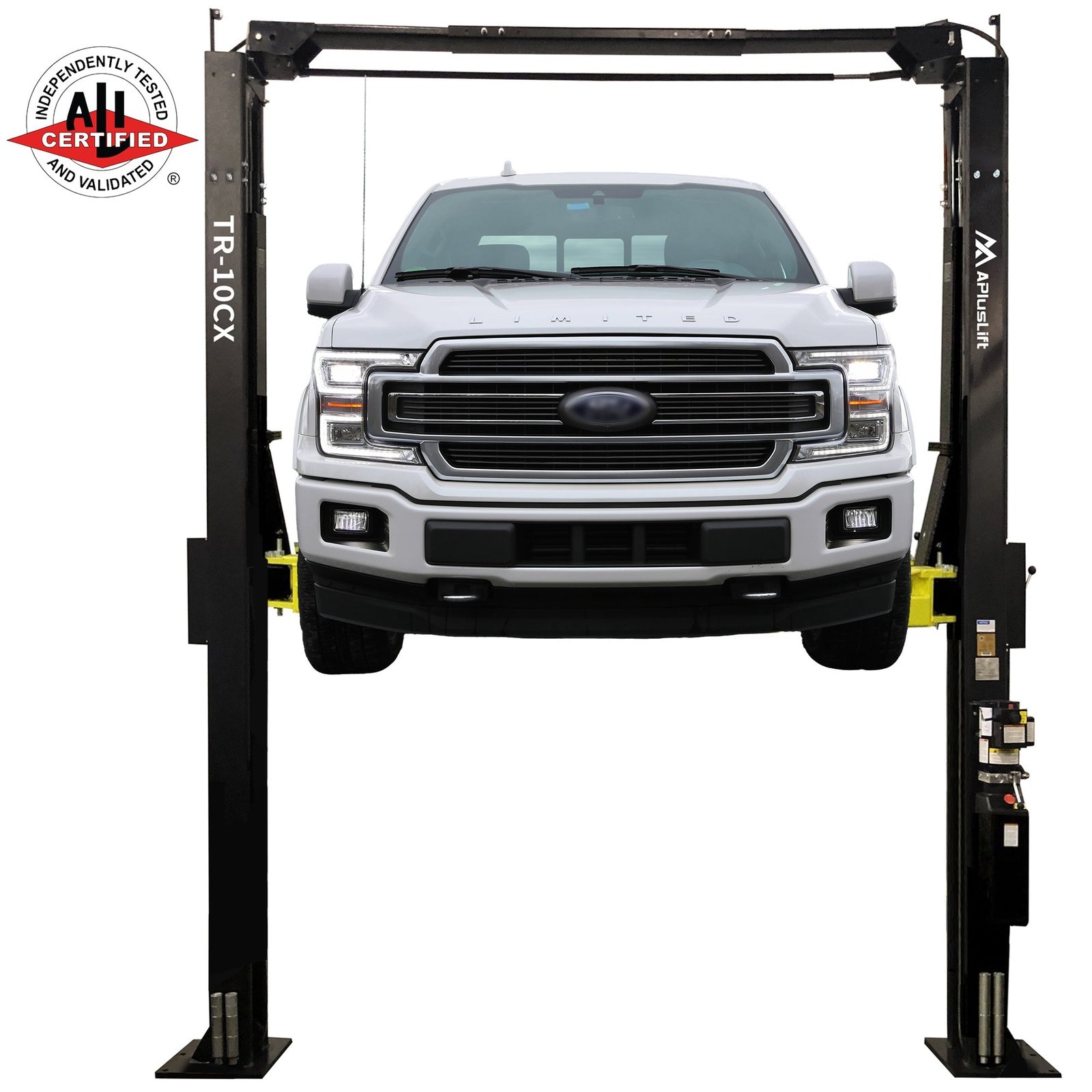

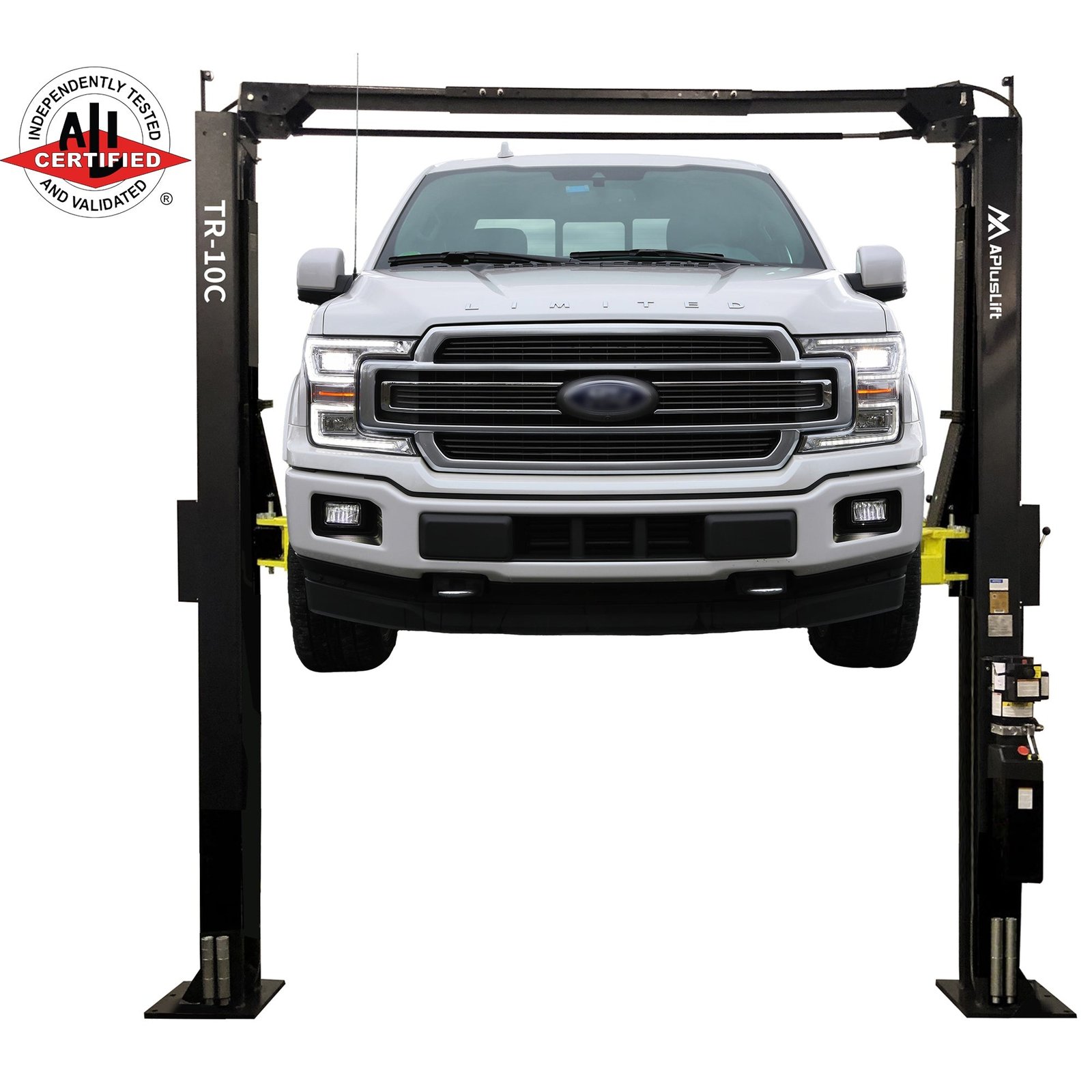

Falcon TR-10C and TR-10CX models achieve the prestigious Gold Label for ALI Certification! This mark signifies rigorous testing and compliance with the toughest industry standards, and they satisfy all insurance company requirements. To learn more about the Automotive Lift Institute (ALI) and the ANSI/ALI/ETL Certification Program, please visit www.autolift.org.
We are proud to offer an industry leading 3 year warranty for all parts (a $499 value)! Replacement parts are available upon request. We welcome suggestions to improve our products and service!
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $200 Discount): Chicago (IL), Mobile (AL), Tacoma (WA), and Watsontown (PA).
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications |
|||||||||
| Model | TR-10C and TR-10CX This Model |
HW-10ASY for Comparison |
|||||||
| Manual |
|
HW-10ASY Manual | |||||||
| Certificate | ALI Certified | CE Certified | |||||||
| Lock Release | Single Point Release | Single Point Release | |||||||
| Warranty | 3 Years (36 months) | 3 Years (36 months) | |||||||
| Lifting Capacity | 10,000 LB | 10,000 LB | |||||||
| Overall Height |
|
141 3/16″ | |||||||
| Overall Width |
|
139 1/8″ (standard) 140 15/32″ (post rotated) |
|||||||
| Maximum Lift height with Truck Adapters | 78″ | 81″ | |||||||
| Maximum Lift height without Truck Adapters | 69″ | 75″ | |||||||
| Minimum Height of Adjustable Pads from Ground | 4″ | 4″ | |||||||
| Drive Through Width (Carriage to Carriage) |
|
104″ (symmetric) 97″ (asymmetric) |
|||||||
| Column to Column Width |
|
113″ (symmetric) 107″ (asymmetric) |
|||||||
| Driving Mode | Direct Drive | Dual hydraulic cylinders, chain drive | |||||||
| Motor | 220V Single Phase 3HP 10A (recommend a 30A breaker) | 220V Single Phase 3HP 10A (recommend a 30A breaker) | |||||||
| Time to full rise | 50 seconds | 50 seconds | |||||||
| Hydraulic Oil | 3-5 gallons AW32/AW46 (not included) | 3-5 gallons AW32/AW46 (Not Included) | |||||||
| Truck Adapters | 3 sets: 1 1/2″, 3″, and 6″ tall | 1 set: 4″ tall | |||||||
| Front Arms | 3 Stage reach from 19 5/16″ to 41 7/8″ | Straight Front 3 Stage reach from 22 7/8″ to 42 5/8″ | |||||||
| Back Arms | 3 Stage reach from 37 5/16″ to 60 3/16″ | Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″ | |||||||
| Column Steel Thickness | 1/4″ | 13/64″ | |||||||
| Carriage Steel Thickness | 1/4″ | 15/64″ | |||||||
| Carriage Yoke Thickness | 9/16″ | 9/16″ | |||||||
| Arm Steel Thickness | 1/4″ | 15/64″ | |||||||
| Base Plate Steel Thickness | 13/16″ | 5/8″ | |||||||
| Shipping Weight | 2000 LB and 200 LB (2 ft height extension for TR-10CX) | 1470 LB and 120 LB | |||||||

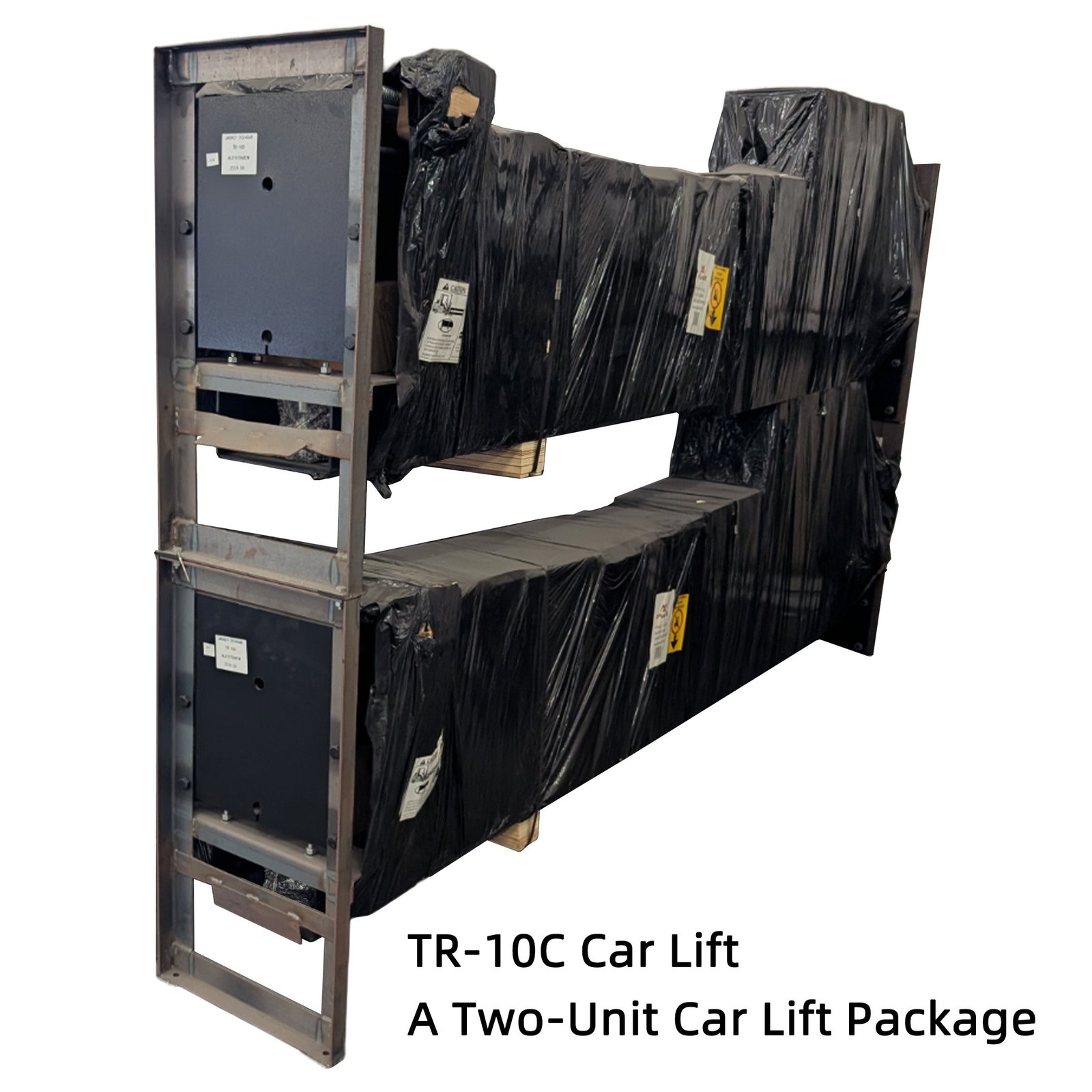

| Shipping package size | 142″L x 22″W x 38″H and 30″L x 17″W x 17″H (2ft height extension for TR-10CX) |
|
|||||||
| Concrete Requirement | 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below) | ||||||||
| Model | TR-10C and TR-10CX This Model |
HW-10ASY for comparison |
|||||||
Features
- Single-point safety lock release
- Automatic arm lock restraints
- Relief valve built-in power pump to prevent overloading
- Door guard protection rubber
- Up-limit switch to protect cylinders working stroke used in safe length scope
- Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
- Stiffened base plate 13/16″ thickness
- Ultra-high molecular self-lubricating nylon slider that ensures carriage smooth moving up and down
- Lifting operation by pressing the “UP” button on the motor
- Manual lowering operation by pressing the lever
- Relief valve built-in power pump to prevent overloading
