Amgo 409-DP 9,000 Lb Double Parking 4 Post Lift
Introduce unparalleled space-saving efficiency with the AMGO 409-DP 9,000 lb double parking 4 post car lift. This innovative 4 post vehicle lift allows you to park up to four vehicles in just two spaces, utilizing its clever double-deck design—ideal for maximizing garage or workshop capacity.
With a robust lifting capacity of 9,000 lb (up to 6,000 lb per vehicle), this low-profile 4 post auto lift combines strength with practicality. Equipped with dual safety locks, a concealed safety control system, and a single-point manual release, it prioritizes operator safety while remaining intuitive to use. The foldable drive-on ramps and non-slip diamond platforms provide effortless access and secure placement for vehicles.
Cutting-edge design minimizes storage and transport footprint, while double “S”-shaped columns reinforce structural integrity. Adjustable safety ladders and cable-slack protection further enhance reliability and longevity. Whether for residential or commercial settings, this lift transforms limited space into a highly efficient parking solution.
Product Features
- Lifting capacity: 9,000 lbs, max. car weight:6,000 lbs.
- Max lifting height:73 11/16” .
- Low profile design, minimum platform height only 6 1/8″.
- Both primary safety lock and cable-slack protection device are come as standard.
- AMGO’ patented design concealed safety lock control device, with manual single-point lock release.
- Exclusive: Foldable drive-on ramps of 4 units.
- Exclusive: Ingenious designs to minimize the package size, reduces the transportation charge and storage cost.
- Exclusive: Double S Shaped columns for increased strength.
- Non-slip diamond platforms.
- Adjustable multiple safety ladders.
- 110V power unit is worked with the lift (lifting time: 100s), please specify when ordering.

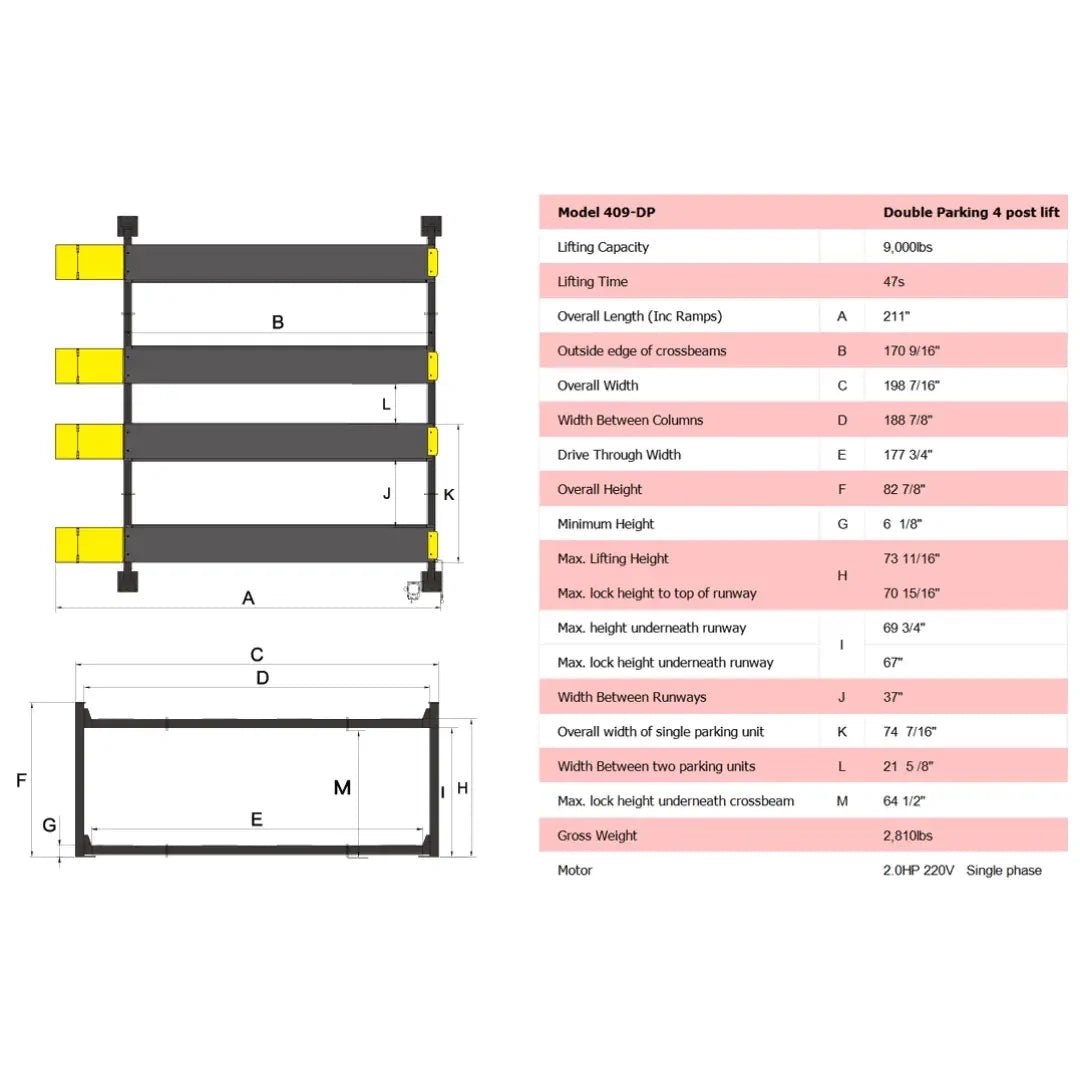

Product Specifications
| Model | 409-DP |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 47s |
| A: Overall Length (Inc Ramps) | 211″ |
| B: Outside Edge of Crossbeams | 170 9/16″ |
| C: Overall Width | 198 7/16″ |
| D: Width between Columns | 188 7/8″ |
| E: Drive-Thru Width | 177 3/4″ |
| F: Overall Height | 82 7/8″ |
| G: Minimum Height | 6 1/8″ |
| H: Max. Lifting Height | 73 11/16″ |
| H: Max. Locking Height to Top of Runway | 70 15/16″ |
| I: Max. height underneath runway | 69 3/4″ |
| I: Max. lock height underneath runway | 67″ |
| J: Width between runways | 37″ |
| K: Overall width of single parking unit | 74 7/16″ |
| L: Width between two parking unit | 21 5/8″ |
| M: Max. Lock Height Underneath Crossbeam | 64 1/2″ |
| Gross weight | 2,810 lbs |
| Motor | 2.0HP 220V/60Hz, Single Phase |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
