Description

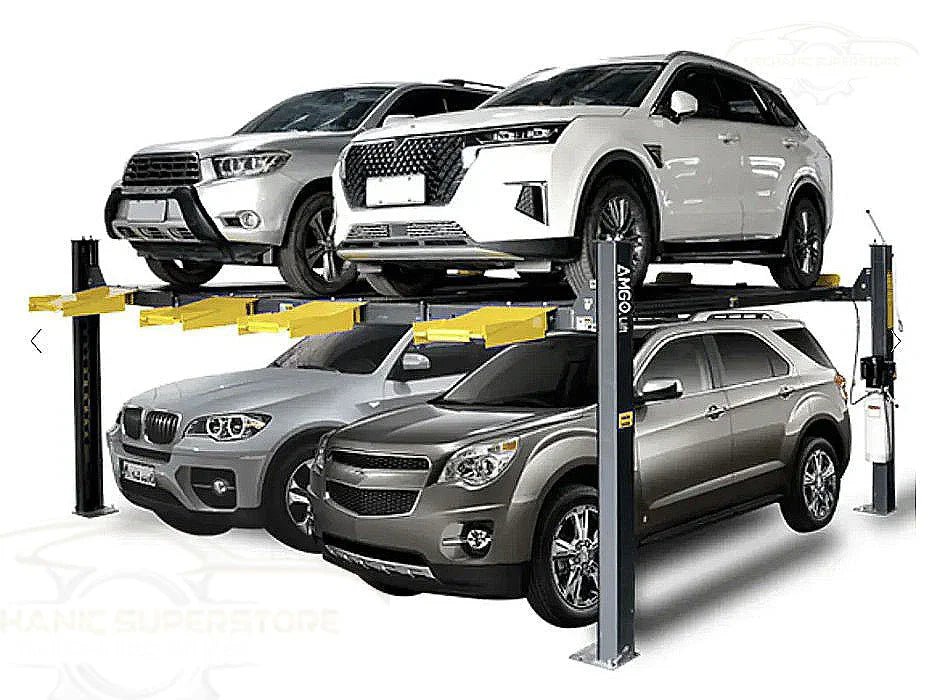

Amgo 409-DPX 9,000 lb Double Parking 4 Post Lift
The AMGO 409-DPX 9,000 lb double parking 4 post car lift expands capacity and functionality for residential and commercial garages alike. This advanced 4 post vehicle lift features a longer and taller design compared to the standard model, creating more vertical space beneath for taller vehicles like SUVs or light trucks.
Boasting a combined lifting capacity of 9,000 lb (up to 6,000 lb per vehicle), the 4 post auto lift includes a range of safety and convenience features:
-
Maximum lifting height of 87 11/16″ with a low-profile base just 6 1/8″ high
-
Standard safety components such as primary safety locks, cable-slack protection, and a concealed safety lock control with single-point manual release
-
Four foldable drive-on ramps and non-slip diamond platforms for effortless entry and secure placement
-
Sturdy double “S”-shaped columns, adjustable safety ladders, and a pull rope for added reliability
-
Operates on a 2.0 HP, 220 V single-phase motor (lifting time: 57 s)
Its generous dimensions include an overall length (with ramps) of approximately 238 9/16″, width of 198 7/16″, and drive-through clearance of around 177 3/4″—all designed to optimize space usage and service capacity.

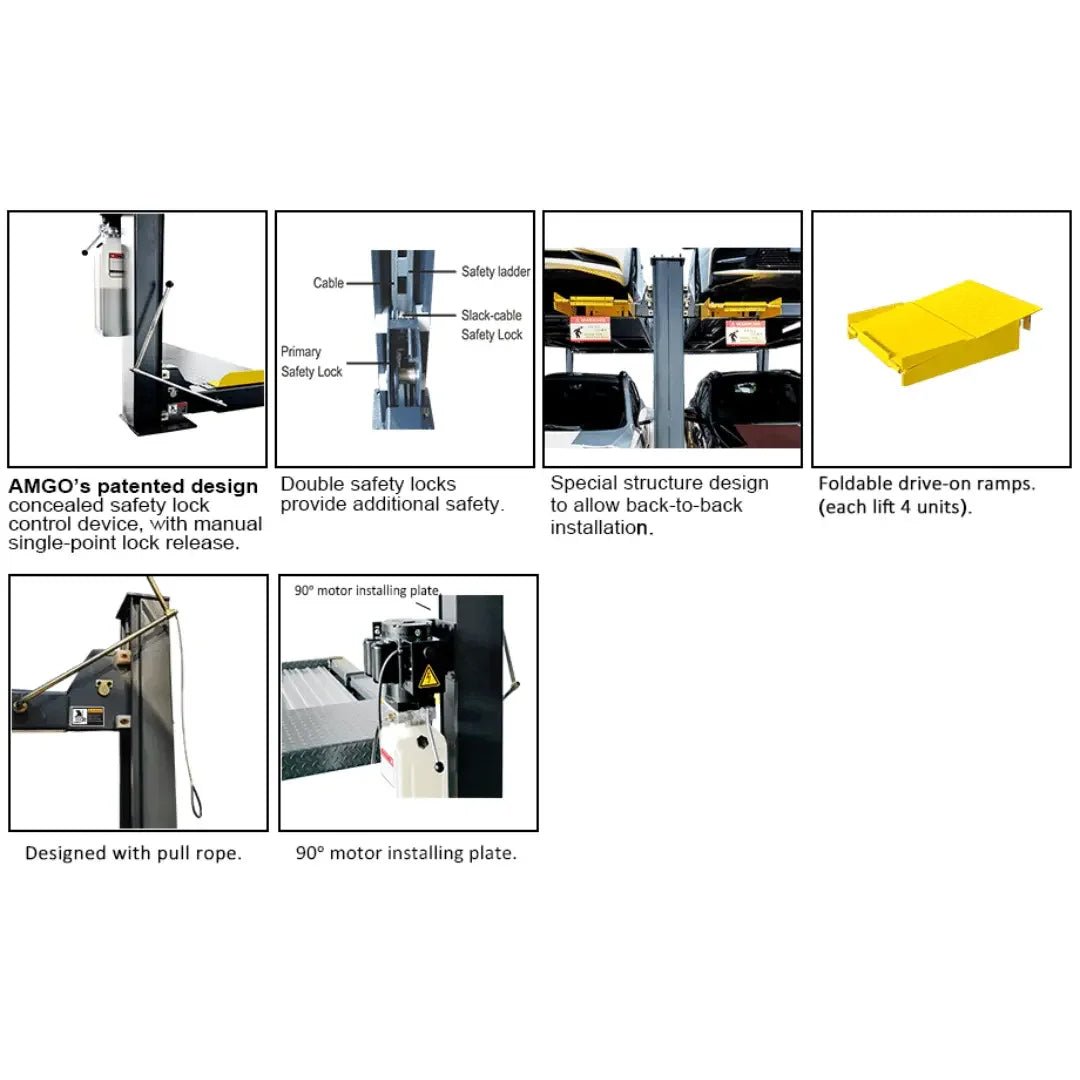

Product Features
- Lifting capacity: 9,000 lbs, max. car weight:6,000 lbs.
- Max lifting height:87 11/16” .
- Low profile design, minimum platform height only 6 1/8″.
- Both primary safety lock and cable-slack protection device are come as standard.
- AMGO’ patented design concealed safety lock control device, with manual single-point lock release.
- Exclusive: Foldable drive-on ramps of 4 units.
- Exclusive: Ingenious designs to minimize the package size, reduces the transportation charge and storage cost.
- Exclusive: Double S Shaped columns for increased strength.
- Non-slip diamond platforms.
- Adjustable multiple safety ladders.
- Pull rope comes as standard.
- 110V power unit is worked with the lift (lifting time: 100s), please specify when ordering.

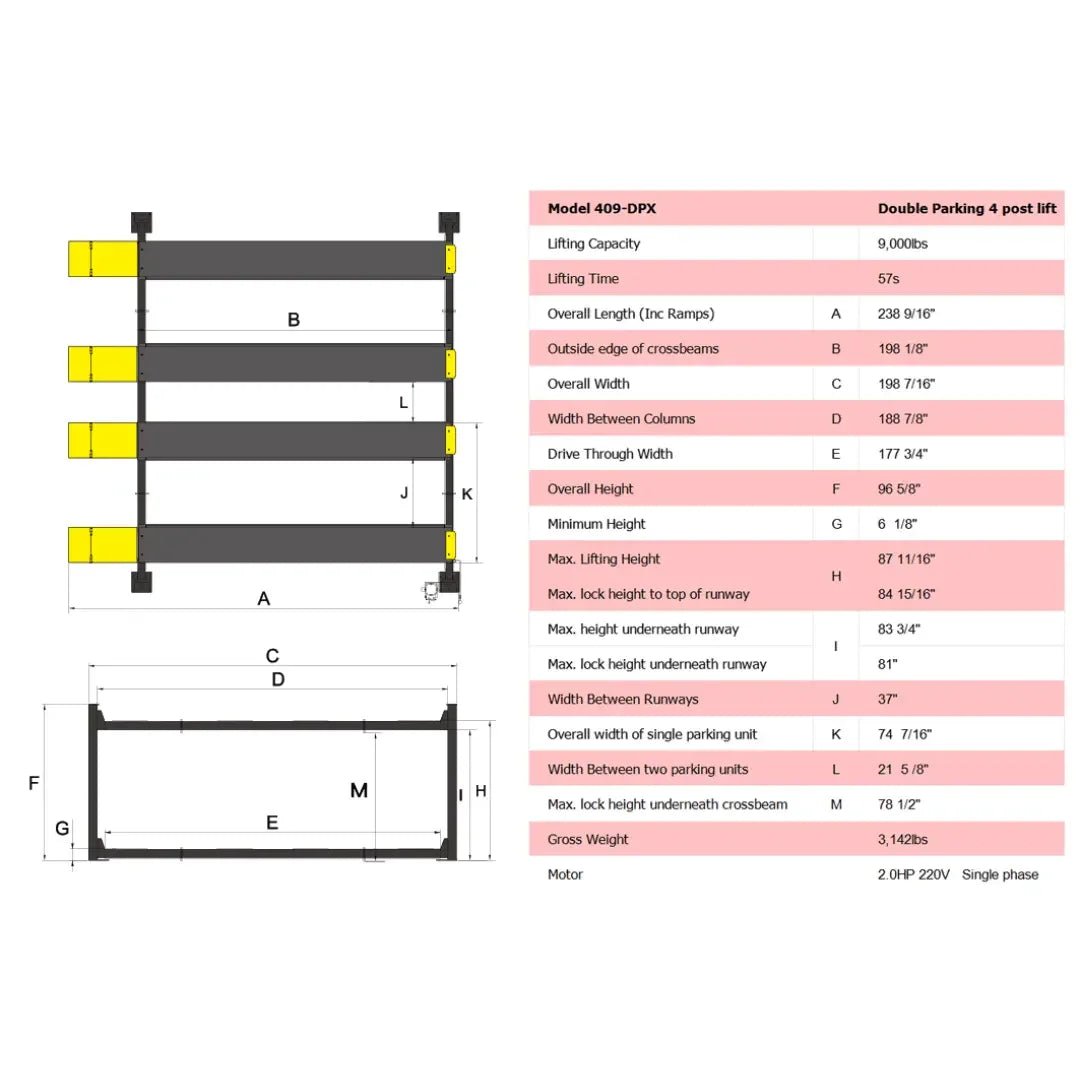

Product Specifications
| Model | 409-DPX |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 57s |
| A: Overall Length (Inc Ramps) | 238 9/16″ |
| B: Outside Edge of Crossbeams | 198 1/8″ |
| C: Overall Width | 198 7/16″ |
| D: Width between Columns | 188 7/8″ |
| E: Drive-Thru Width | 177 3/4″ |
| F: Overall Height | 96 5/8″ |
| G: Minimum Height | 6 1/8″ |
| H: Max. Lifting Height | 87 11/16″ |
| H: Max. Locking Height to Top of Runway | 84 15/16″ |
| I: Max. height underneath runway | 83 3/4″ |
| I: Max. lock height underneath runway | 81″ |
| J: Width between runways | 37″ |
| K: Overall width of single parking unit | 74 7/16″ |
| L: Width between two parking unit | 21 5/8″ |
| M: Max. Lock Height Underneath Crossbeam | 78 1/2″ |
| Gross weight | 3,142 lbs |
| Motor | 2.0HP 220V/60Hz, Single Phase |
