Description

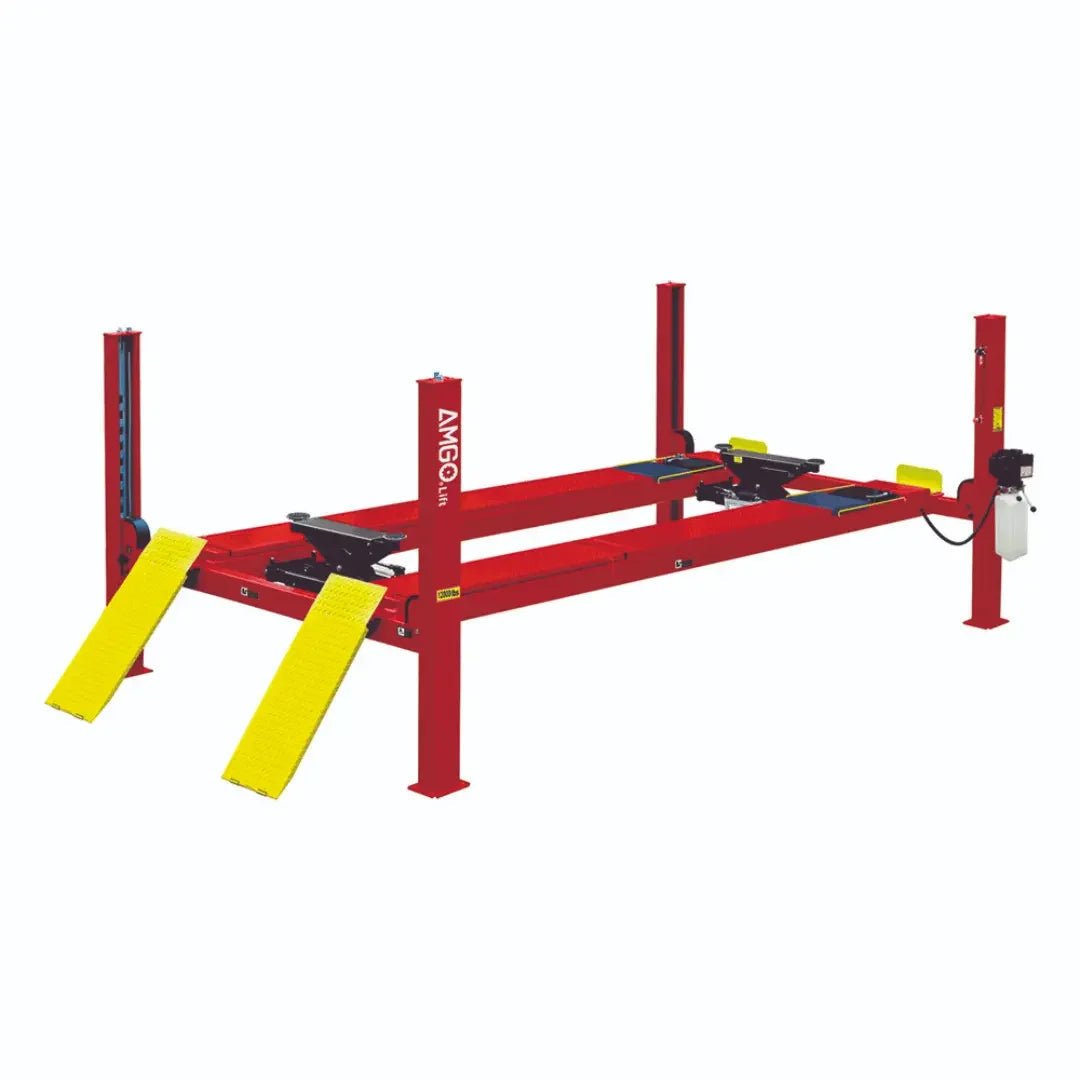

Amgo PRO-12A 12,000 lb 4 Post Lift
4 Post Vehicle Lift – Elevate your auto repair and maintenance capabilities with the AMGO PRO-12A 12,000 lb. 4-Post Lift. Engineered for strength and reliability, this high-capacity lift is ideal for both professional garages and serious DIY enthusiasts.
Key Features:
- Impressive Lifting Capacity: With a robust 12,000-pound lifting capacity, the AMGO PRO-12A can easily handle a wide range of vehicles, from sedans to heavy-duty trucks.
- Durable Construction: Built with industrial-grade steel, this lift ensures longevity and stability, offering peace of mind during operations.
- Versatile Design: The four-post configuration provides maximum stability and versatility, making it suitable for various maintenance tasks, including wheel alignment, brake work, and more.
- Smooth Operation: Equipped with a reliable hydraulic system, the PRO-12A guarantees smooth and efficient lifting and lowering of vehicles.
- Safety Features: Includes multiple locking positions and a secondary safety lock system to prevent accidental lowering, ensuring a safe working environment.
- Easy Installation: Designed for easy setup, the lift comes with all necessary hardware and a clear instruction manual to get you up and running quickly.
Whether you’re enhancing your professional workshop or upgrading your home garage, the AMGO PRO-12A 12,000 lb. 4-Post Lift is a dependable choice that combines power, safety, and ease of use. Invest in the best for your automotive lifting needs and experience unparalleled performance and reliability.

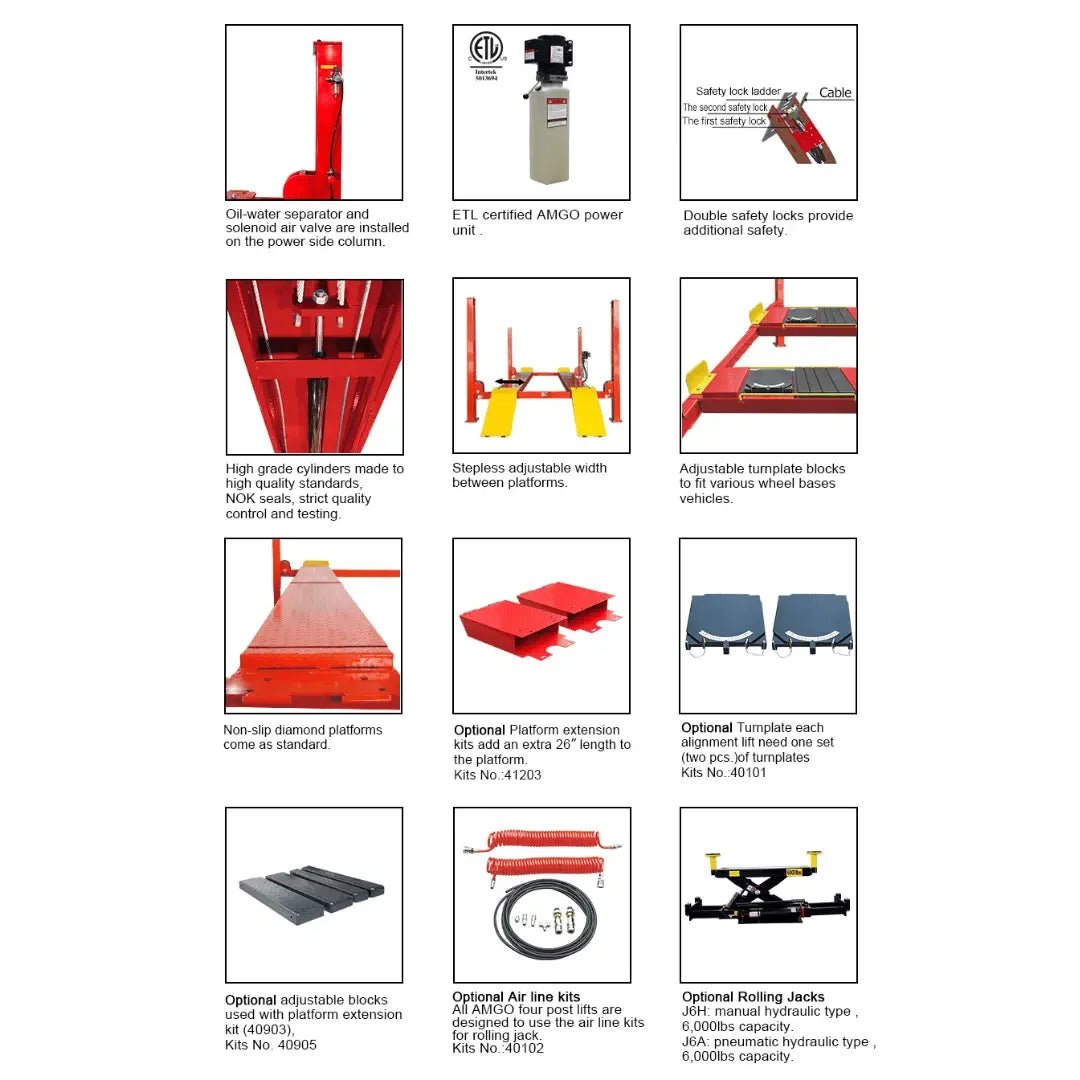

Product Features
- 12,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
- Stepless adjustable width between platforms.
- Integrated slip plates and adjustable turnplate pockets.
Product Specifications
| Model | PRO-12A |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 63S |
| A: Overall Length (Inc.Ramps) | 236 11/16″ |
| B: Overall Length (No.Ramps) | 200 3/4″ |
| C: Overall Width | 126 5/16″ |
| D: Width Between Columns | 112 1/4″ |
| E: Max. Lifting Height | 76″ |
| E: Max. Lock Height to Top of Runway | 72 7/8″ |
| F: Overall Height | 86″ |
| G: Minimum Height | 8 5/8″ |
| H: Max. Underneath Height | 68 1/8″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 98 3/8″ |
| J: Width Between Runways | 43 5/16″, Min. 39 3/8″, Max. 51 3/16″ |
| K: Outside Edge of Runways | 83 5/16″, Min. 43 3/8″, Max. 91 3/16″ |
| L: Min. Four Wheel Align | 78 3/4″ |
| M: Max. Four Wheel Align | 155 1/2″ |
| N: Max. Two Wheel Align | 163 3/8″ |
| Gross Weight | 2,919 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
