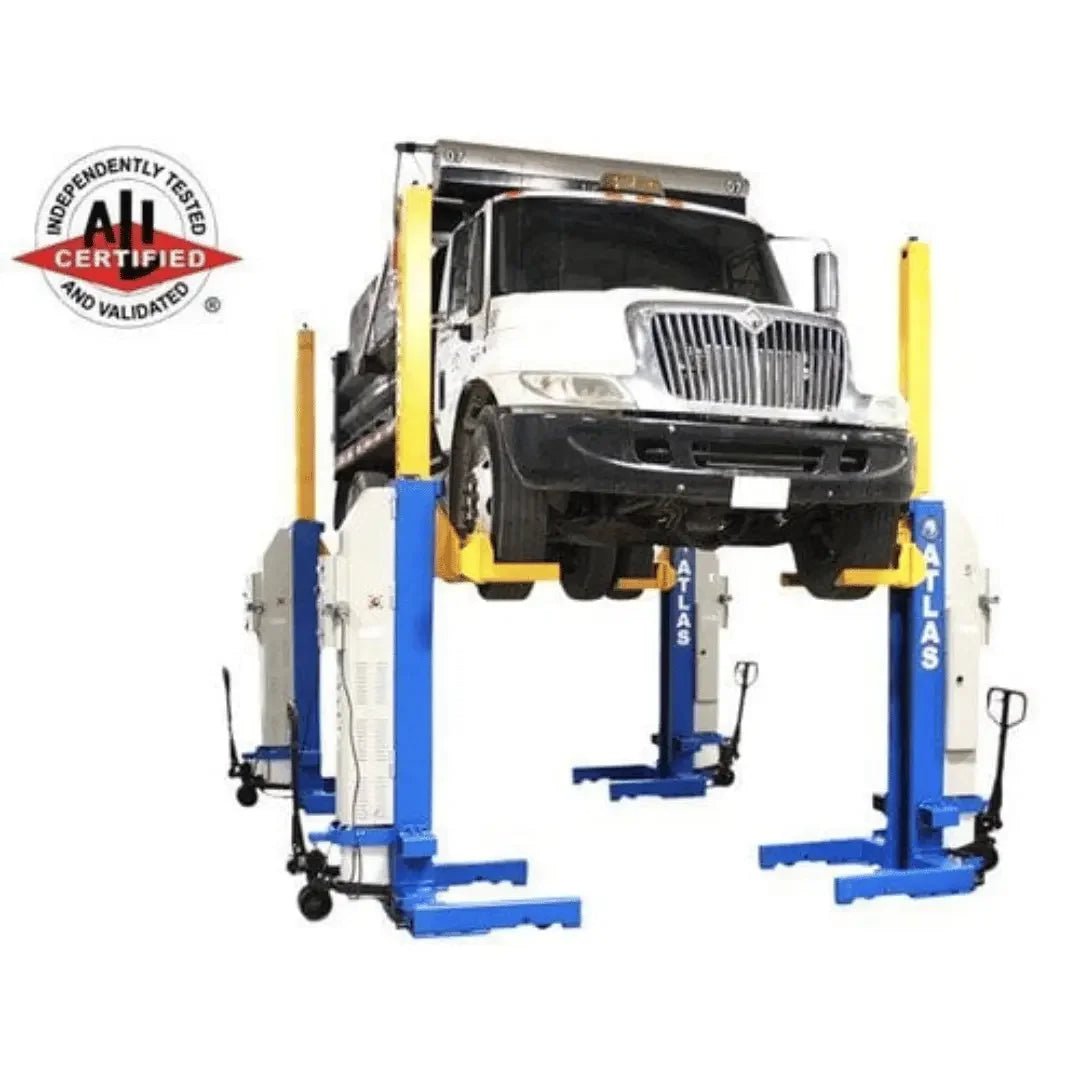

Atlas 74,000 LB. ALI Certified Battery Powered Mobile Column Lift System

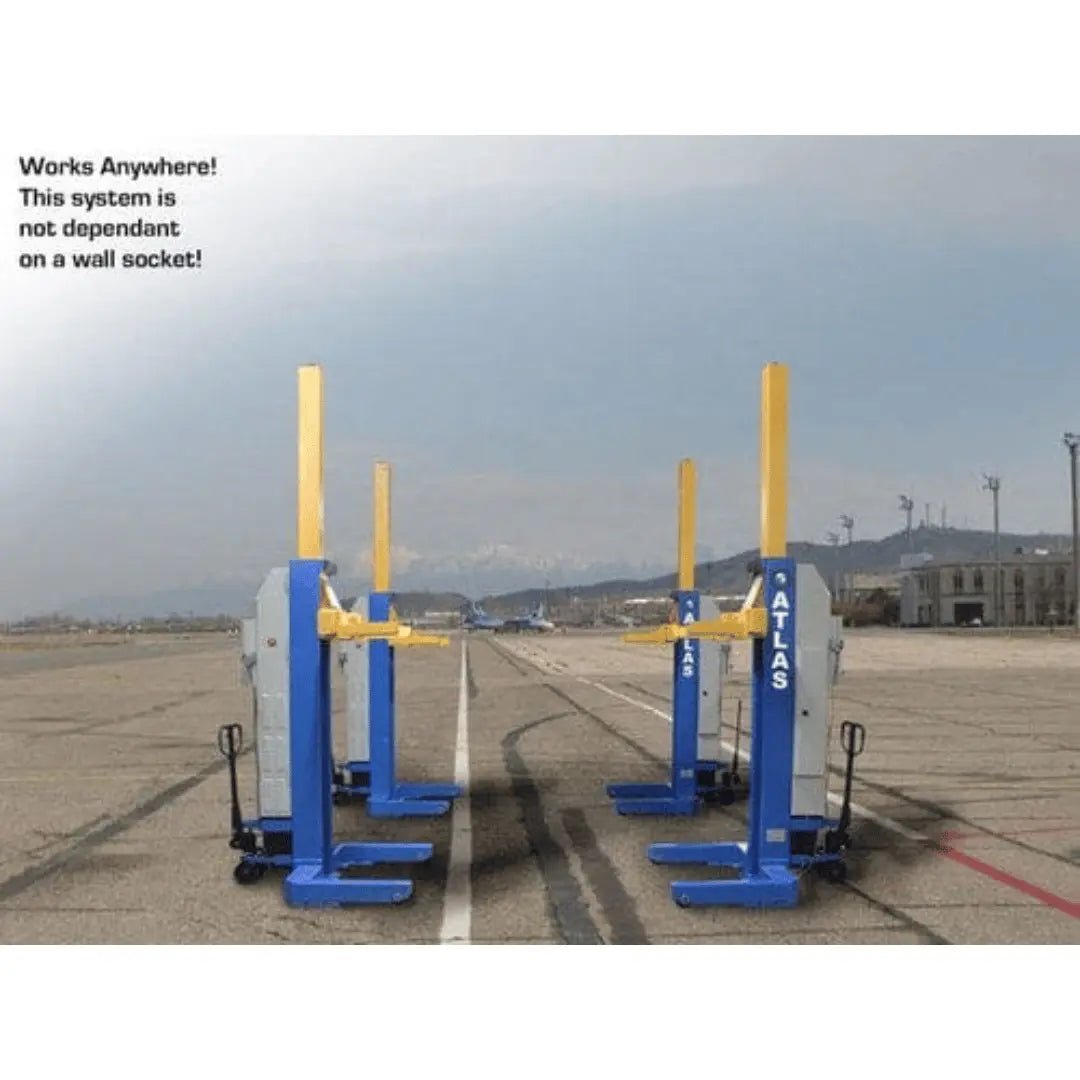

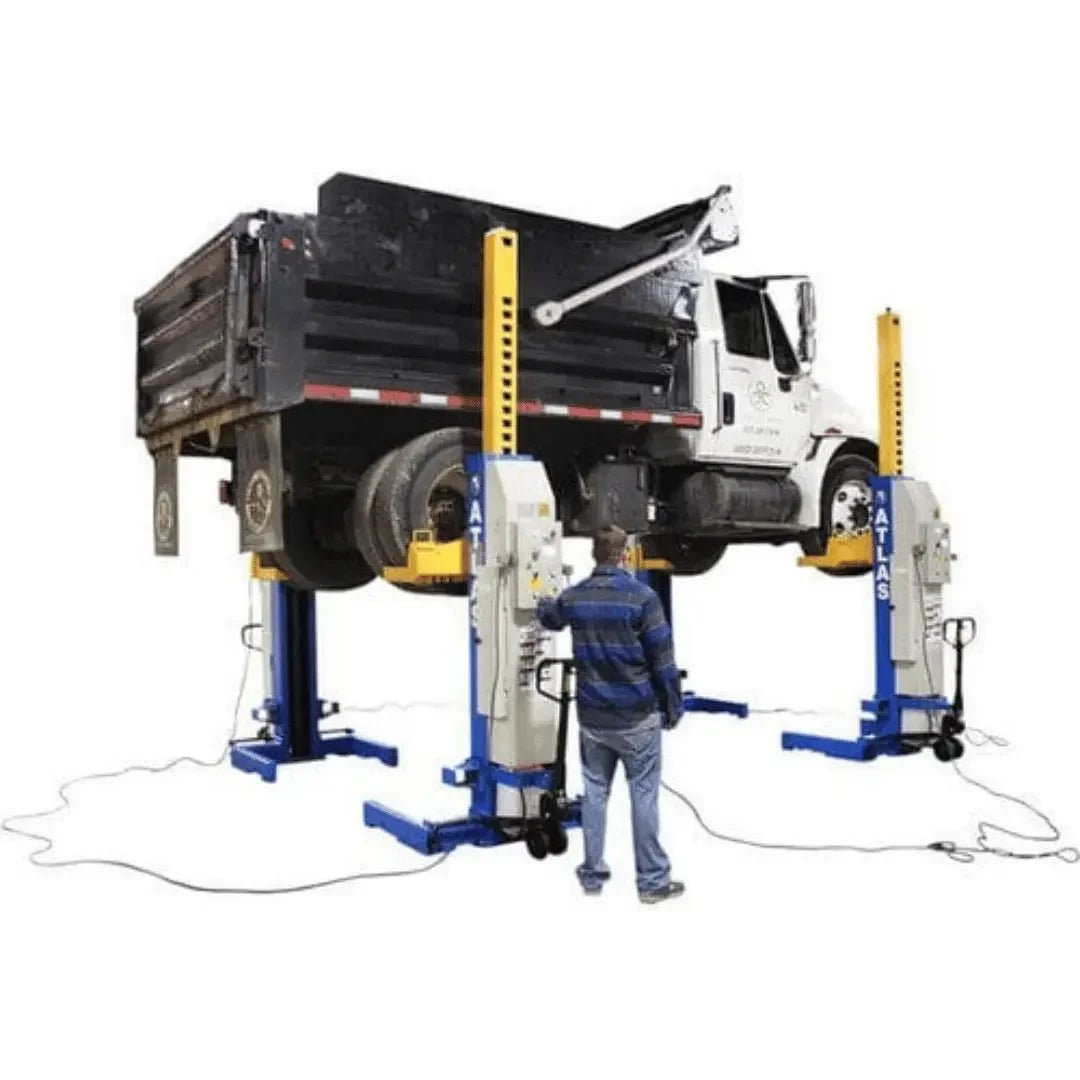

The ALI Certified Maxima® mobile column lift system is the perfect choice for any repair shop that needs to safely raise heavier trucks but has limited bay space. Each heavy duty mobile column is DC motor powered and equipped with rechargeable batteries. The hydraulic pallet jack system allows easy movement, even outside on level concrete (min. 6″ thick). Columns store easily when not in use.

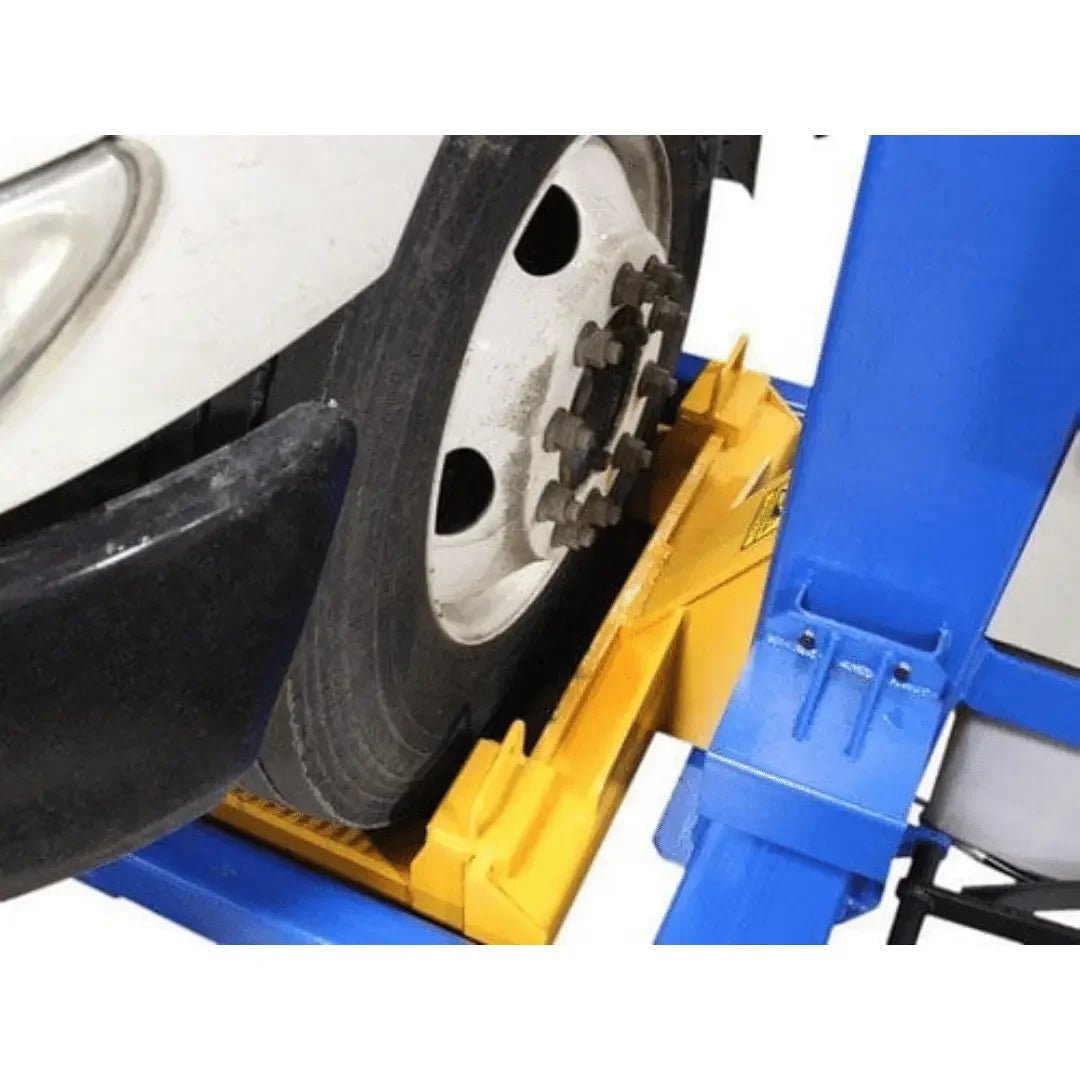

The Maxima® ML4034BC mobile column set supports short and long wheelbase vehicles. Capacity and wheelbase range increase by adding 2 or 4 extra columns. Forks adjust for tire diameters 19″–44″. Each column has an LCD screen, emergency stop, and lifts up to 18,500 lbs.

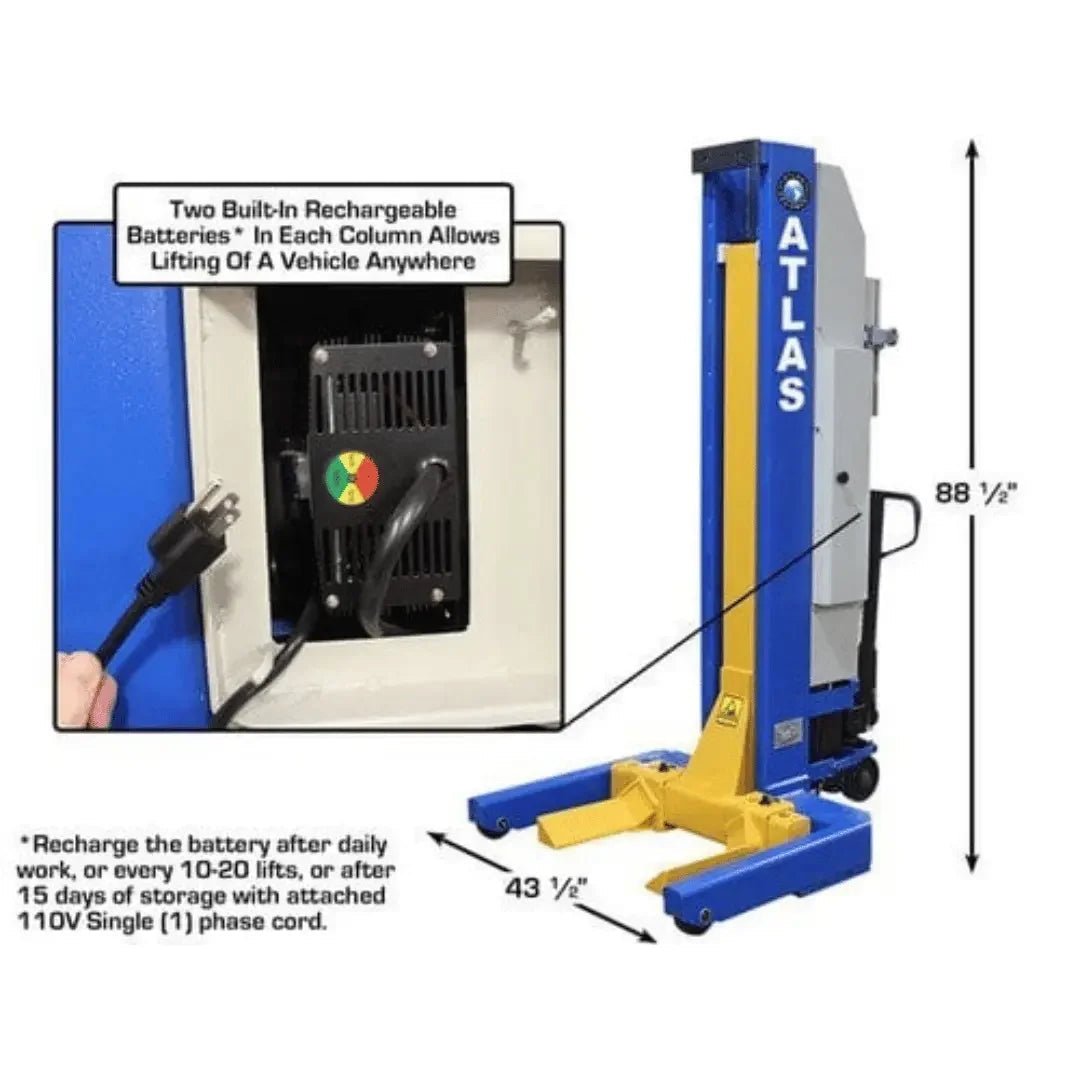

Battery life: 10–20 lifts (depending on load), rechargeable via 110V single-phase cord.
Optional Maxima® Tripod Support Stands available for wheel service support.
THIS PRODUCT DROP SHIPS FROM THE MANUFACTURER
Product Features

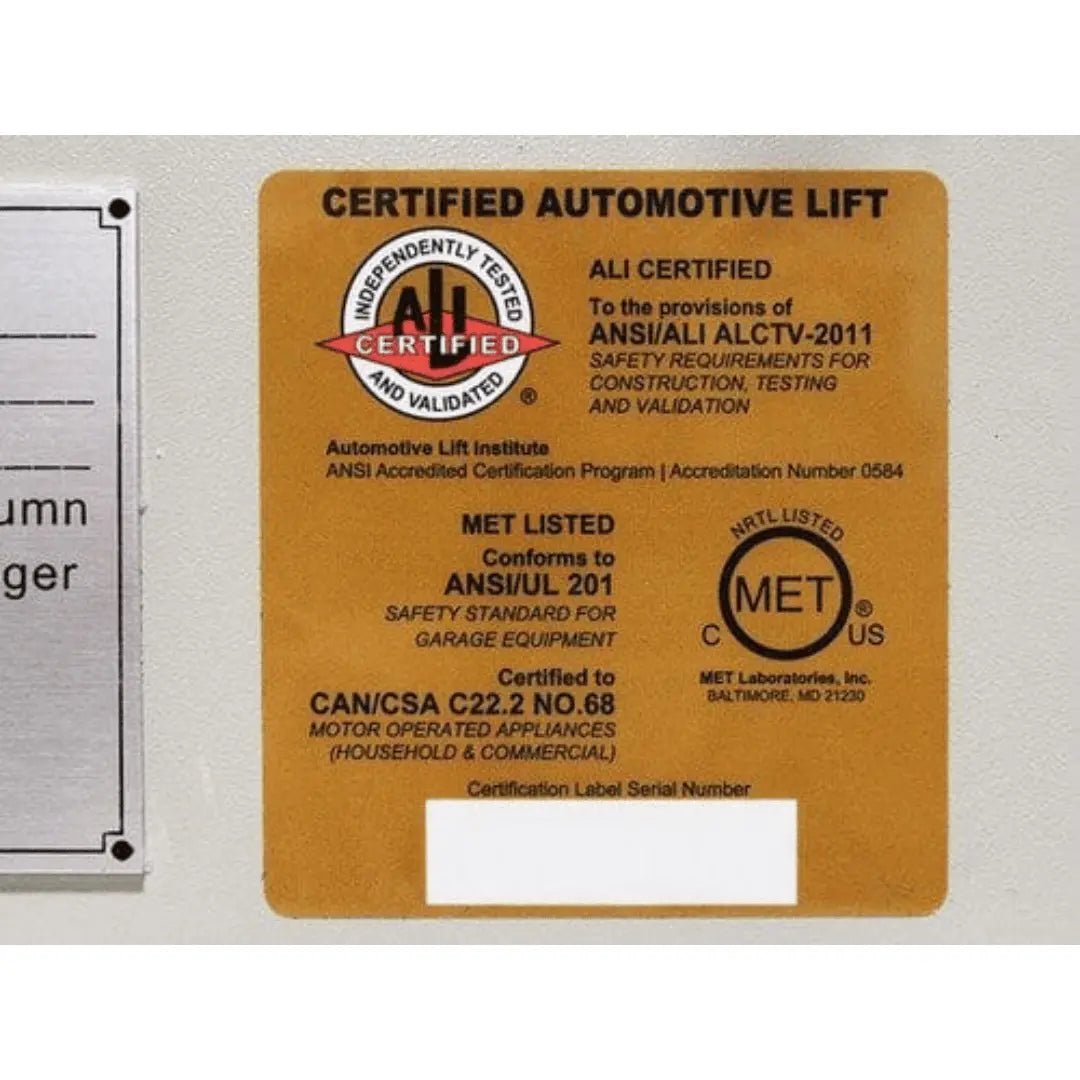

- ALI CERTIFIED
- Simultaneous column operation
- LCD screen per column
- Electronic sync system
- Dual safety: hydraulic + mechanical locks
- Fully portable columns

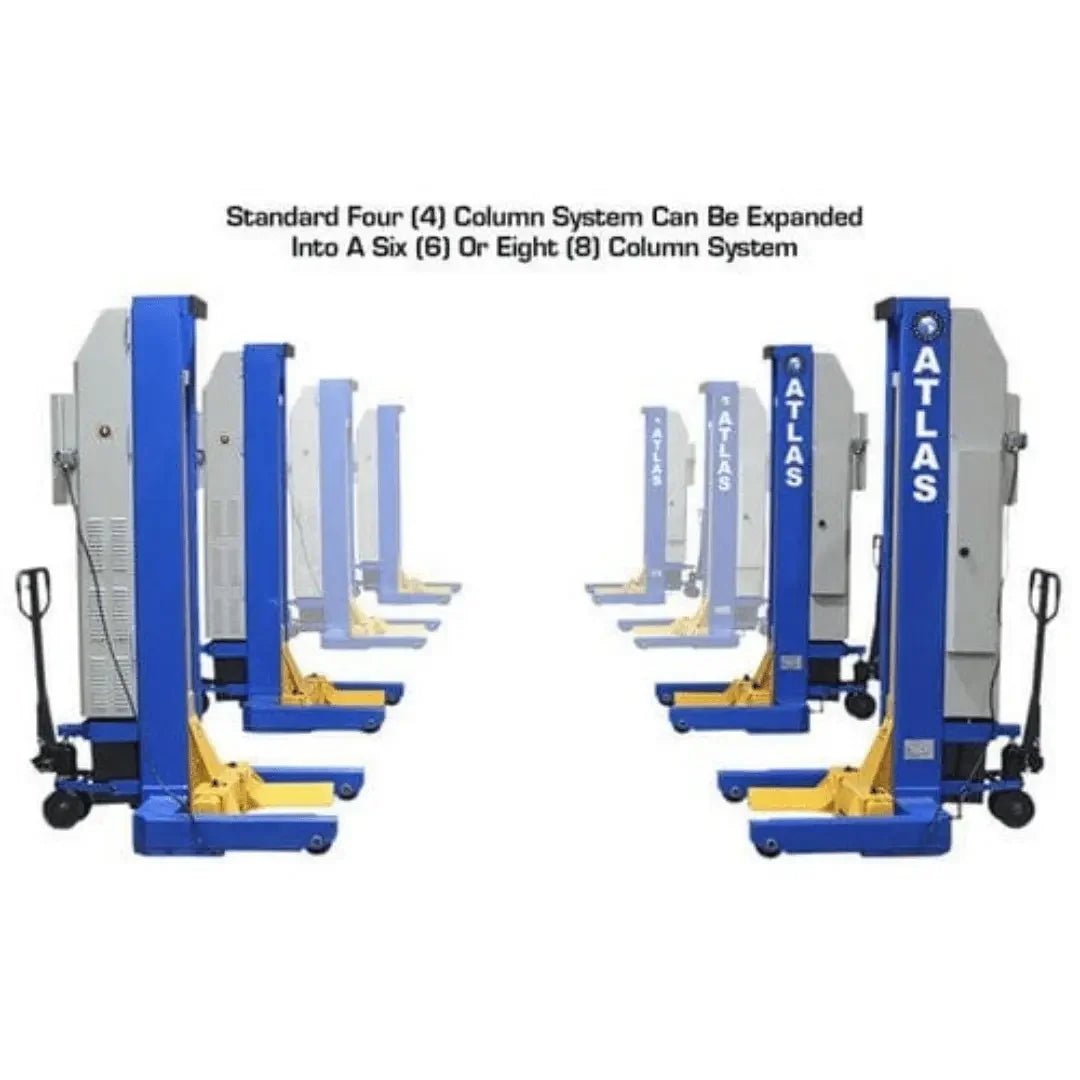

- Expandable system: 4 (74,000 lb.), 6 (111,000 lb.), 8 (148,000 lb.)

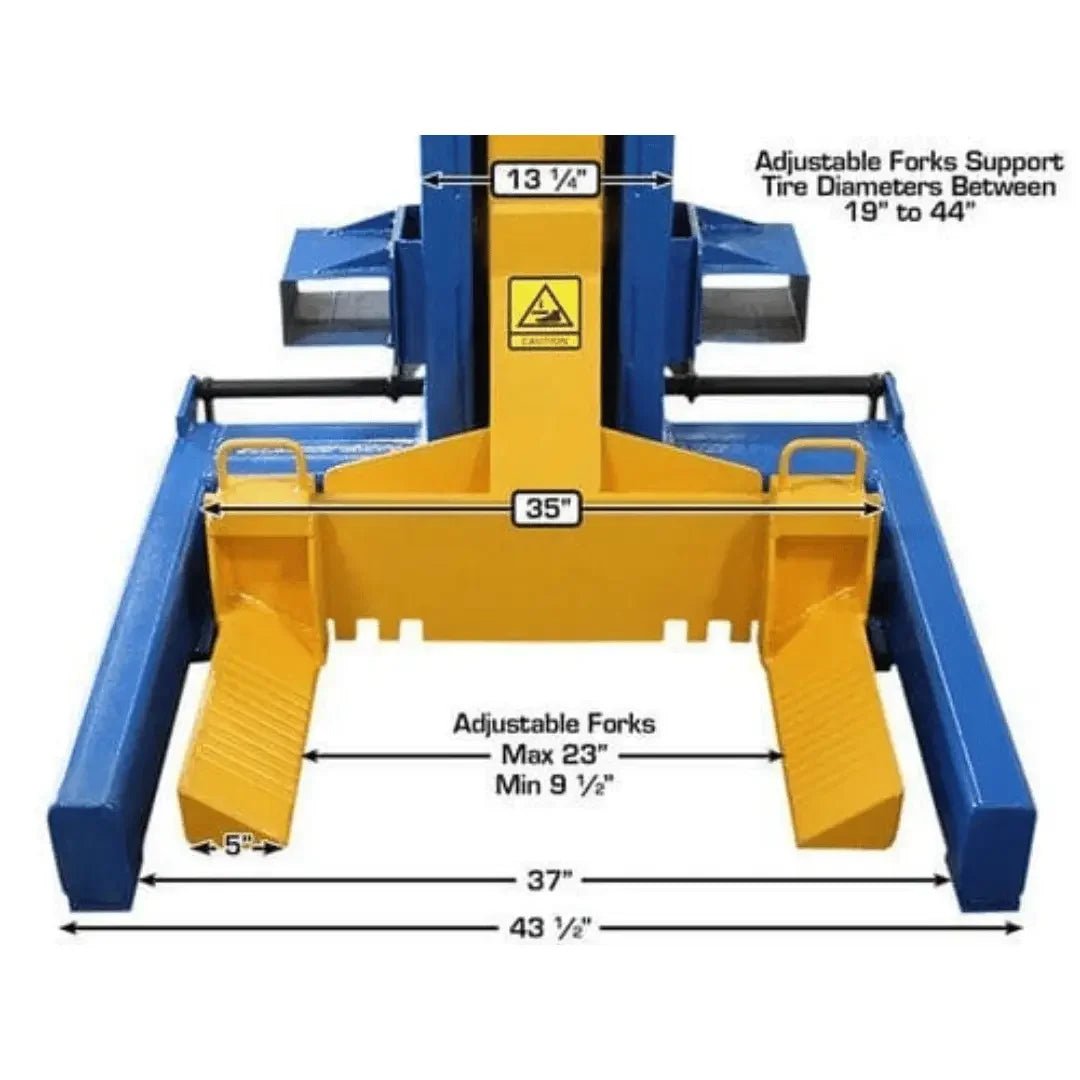

- Forks adjust for 19″–44″ tires
- Emergency stop per column
- Includes four 32′ connection cables
- 2.2 Kw 24V DC motor (2 batteries per column)
- 2-Year Limited Warranty
- Lift capacity per column: 18,500 lbs
- Weight per column: 1,700 lbs
- Shipping Weight (4 columns): 6,800 lbs
Product Specifications
| Model | ATEML-4034BC |
| Capacity per Column | 18,500 lbs. |
| Motor | 2.2 Kw 24V DC motor, 2 batteries/column |

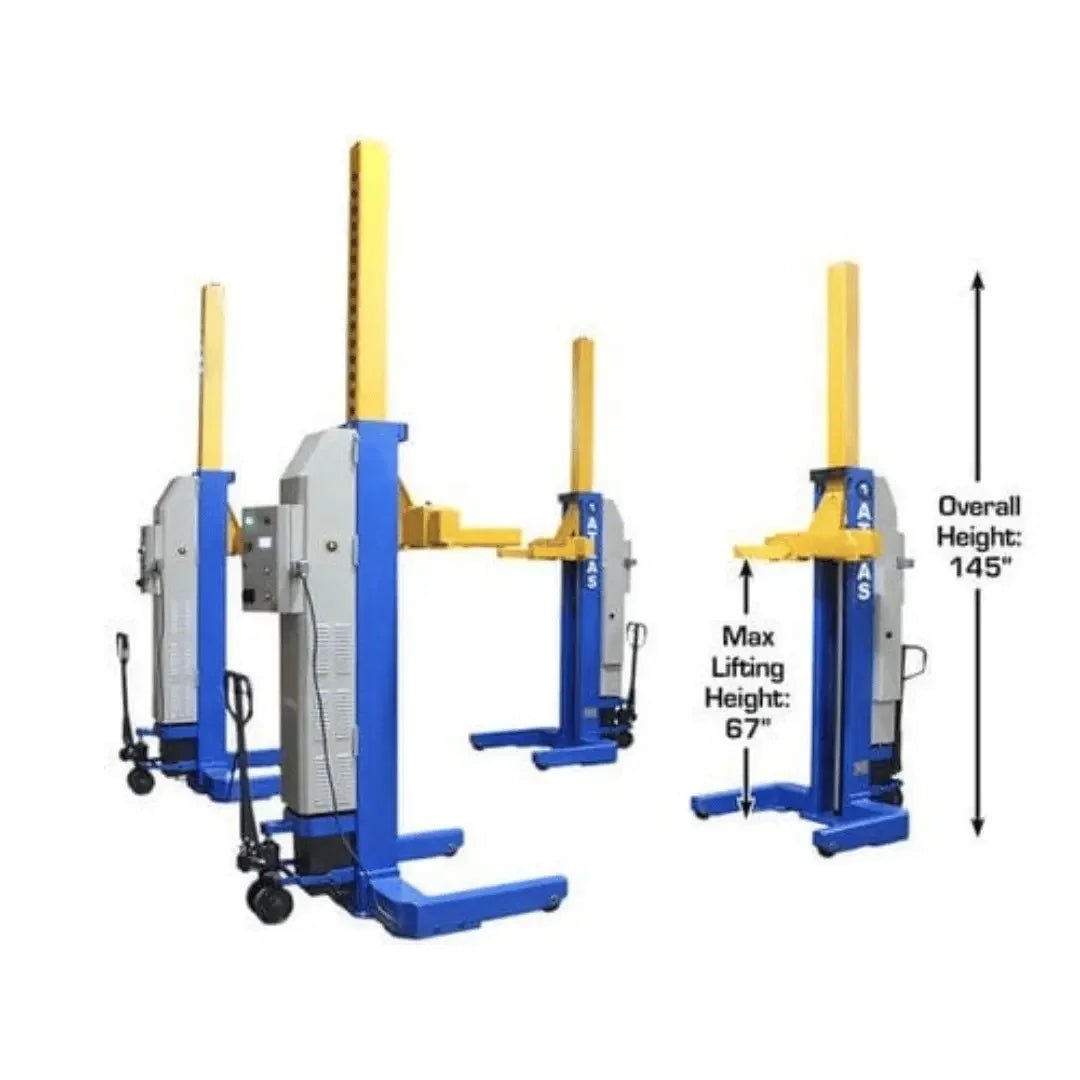

| Max. Lifting Height | 67″ (5′ 7″) |
| Overall Height | 145″ (12′ 1″) |
| Resting Height | 88.5″ (7′ 4.5″) |
| Width | 43.5″ (3′ 7.5″) |
| Length | 55.5″ (4′ 7.5″) |
| Column Width | 13.25″ |
| Max Tire Diameter | 44″ |
| Min Tire Diameter | 19″ |
| Warranty | 2 Year Limited |
| Shipping Weight (Per Column) | 1,700 lbs. |
| Shipping Weight (For Four Columns) | 6,800 lbs. |
