Description
Atlas Garage PRO8000EXT-L 4 Post Lift + RJ35 Sliding Jack Combo
The Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original, the Garage PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller than the standard Atlas® Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage PRO9000 if you need a portable lift for your dually!
This combo package also includes two of the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicle’s wheels off the lift’s runways in order to service tires and brakes.
Product Features
Garage PRO8000EXT-L 4-Post Lift
- 8,000 lb. Capacity
- Free Standing/Portable Design
- EXTRA TALL & EXTRA LONG
- Diamond Plated Runways

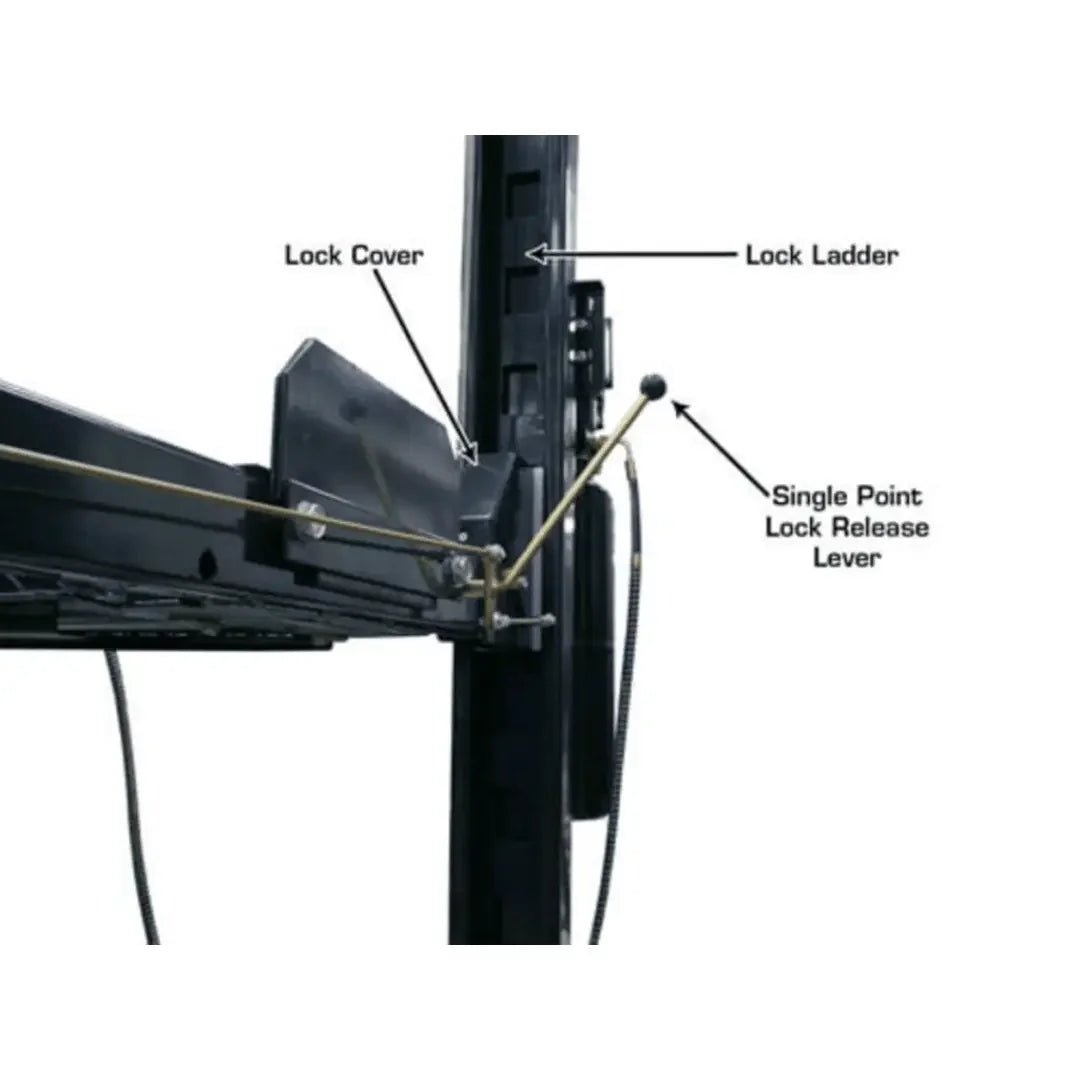

- Single-Point Lock Release

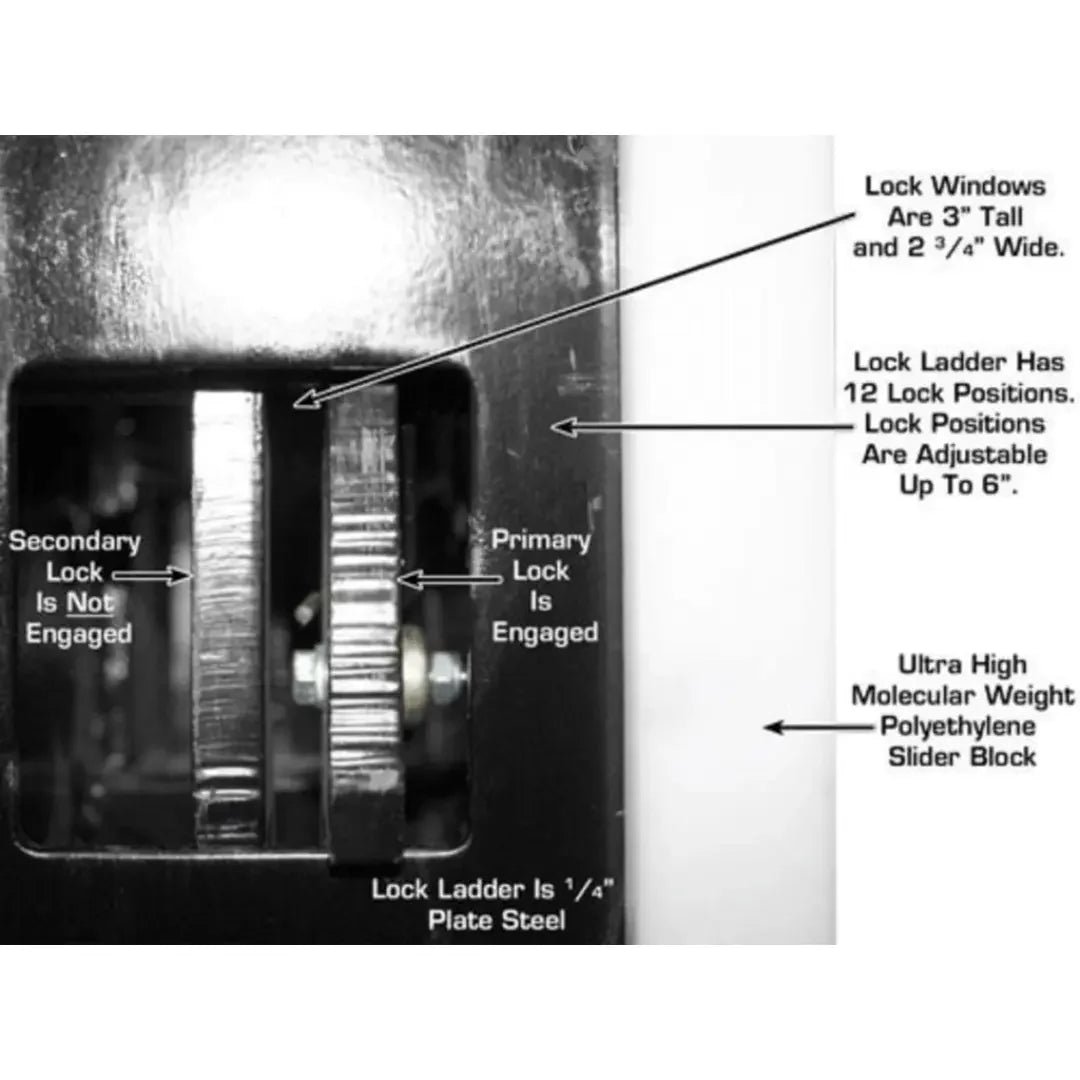

- Lock Ladder Design

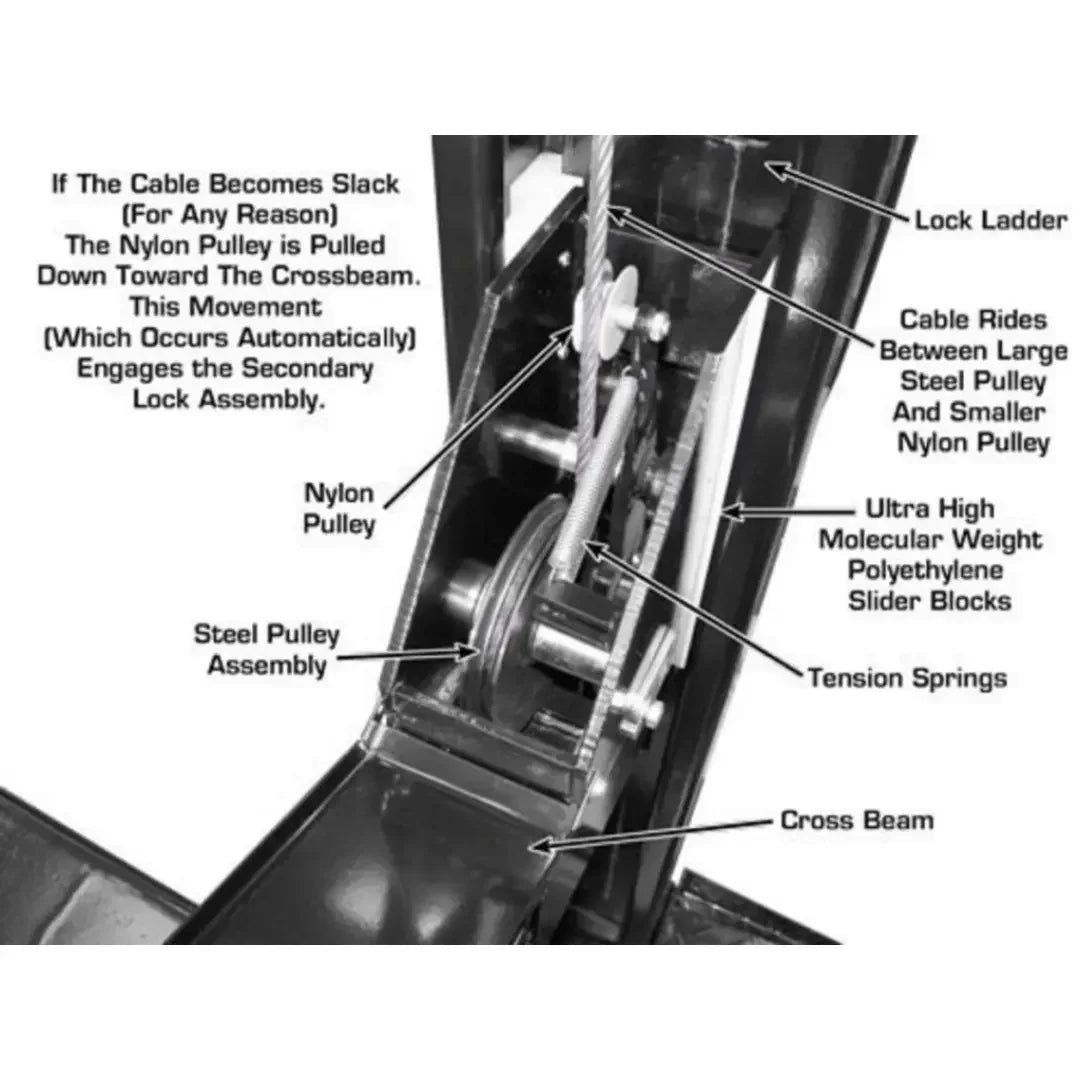

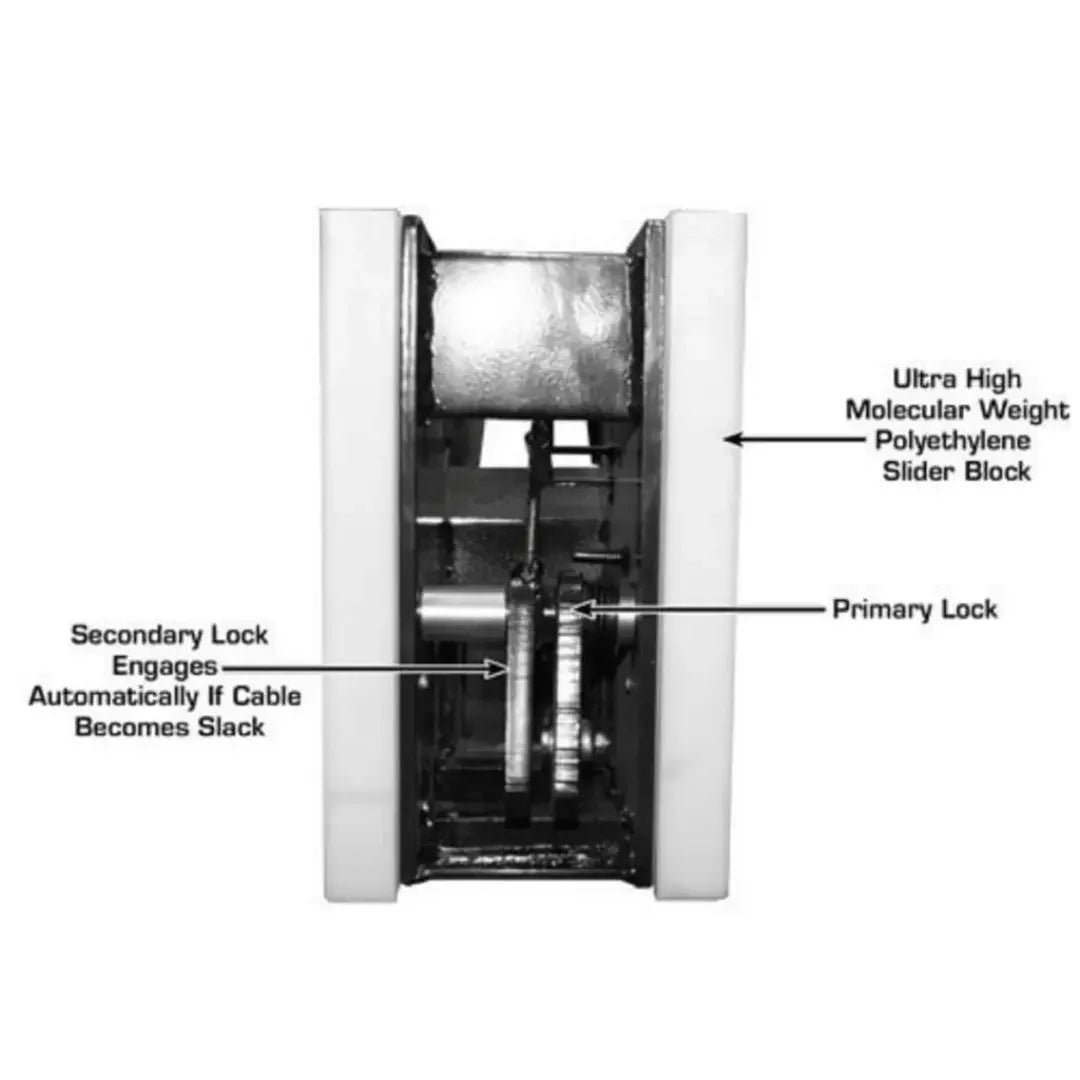

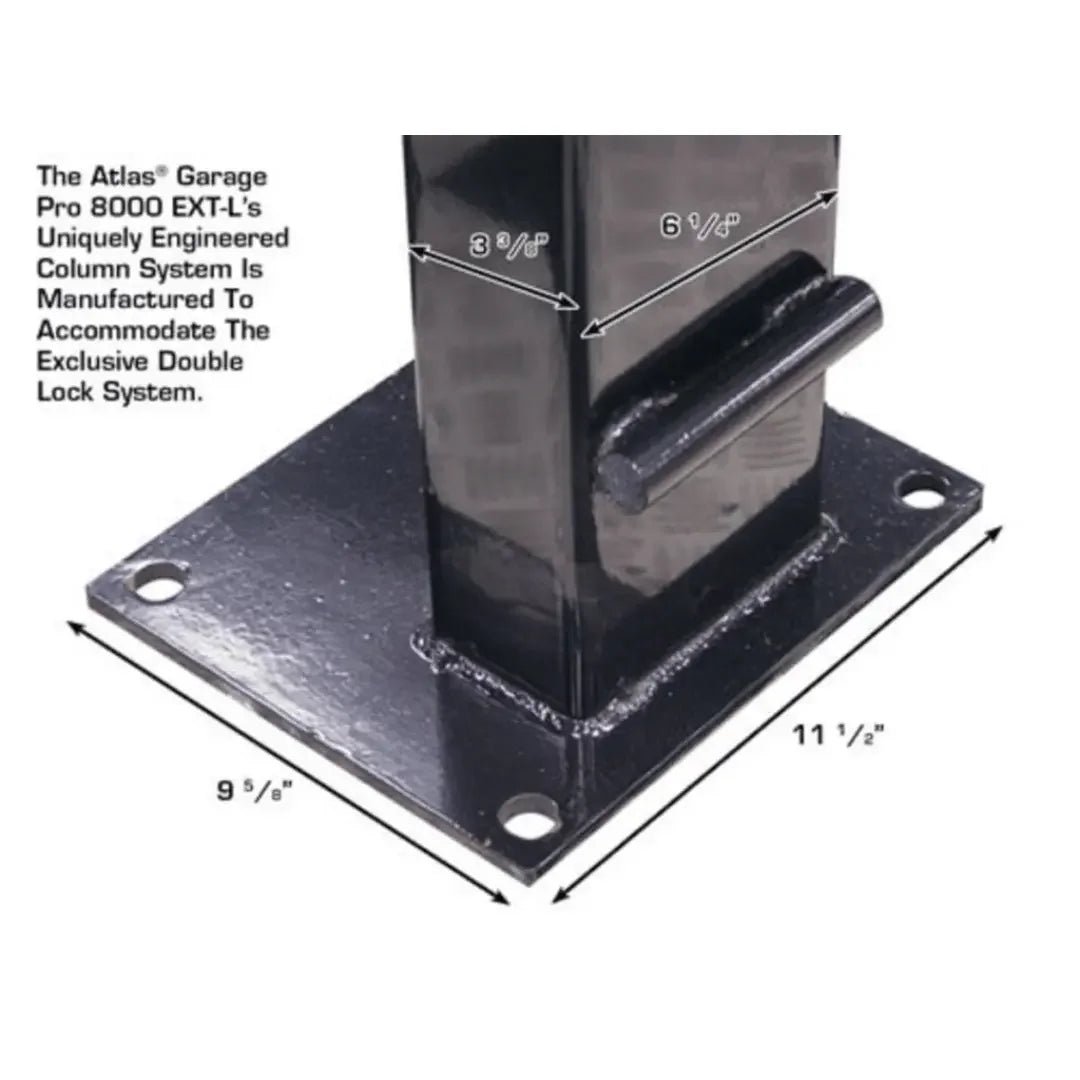

- Double Lock Safety System
- Caster Kit With Polyurethane Wheels Included

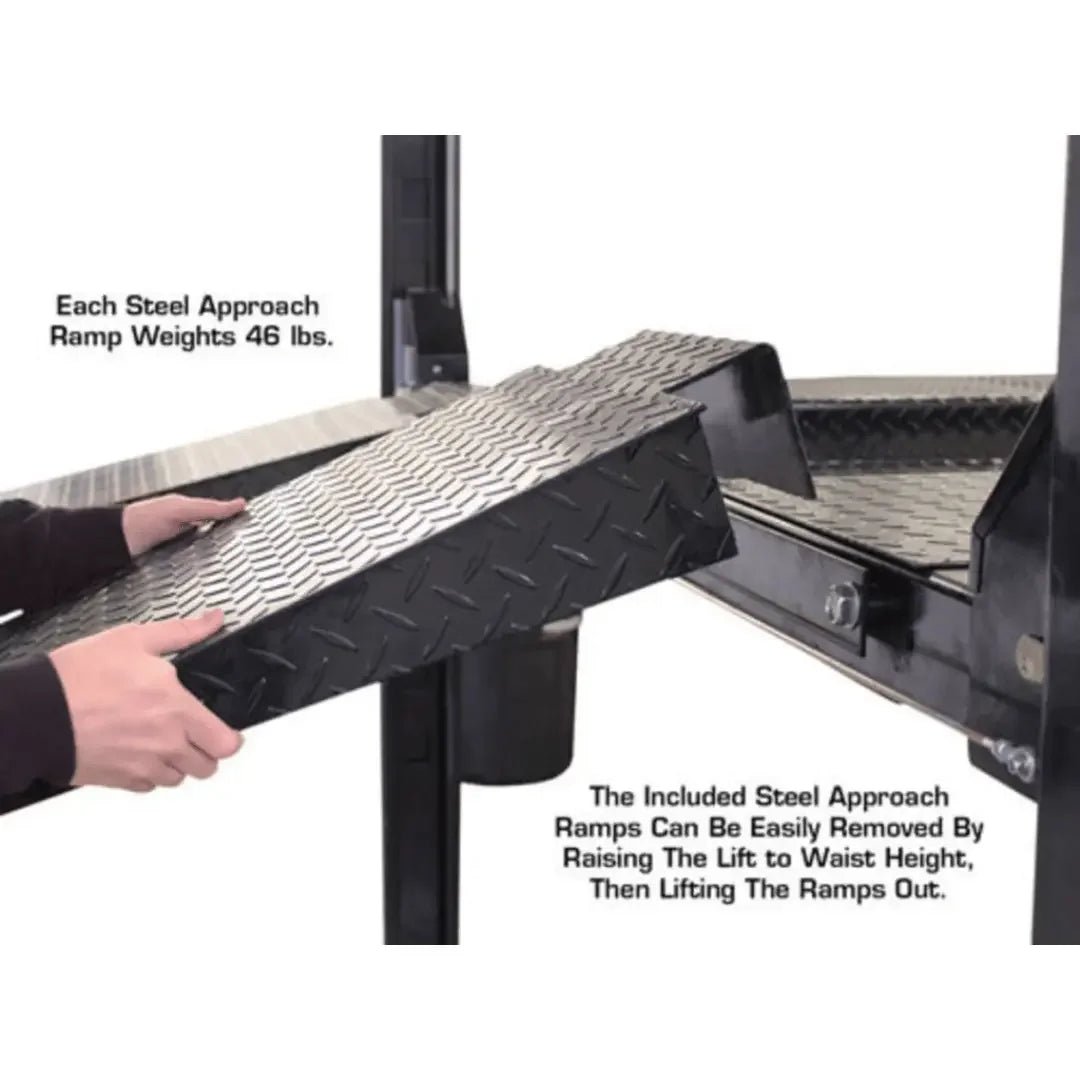

- Steel Approach Ramps Included
- Steel Jack Tray Included

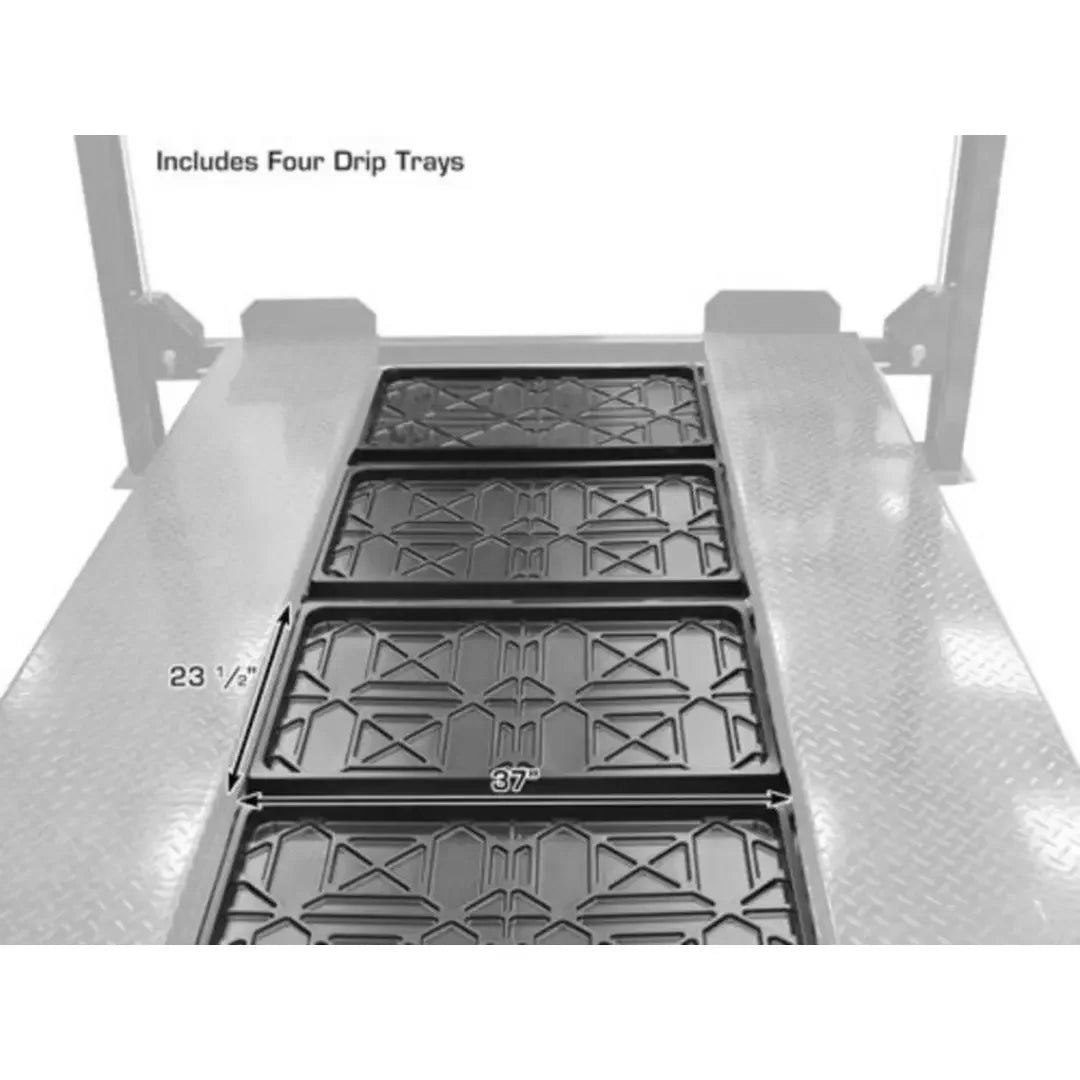

- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles

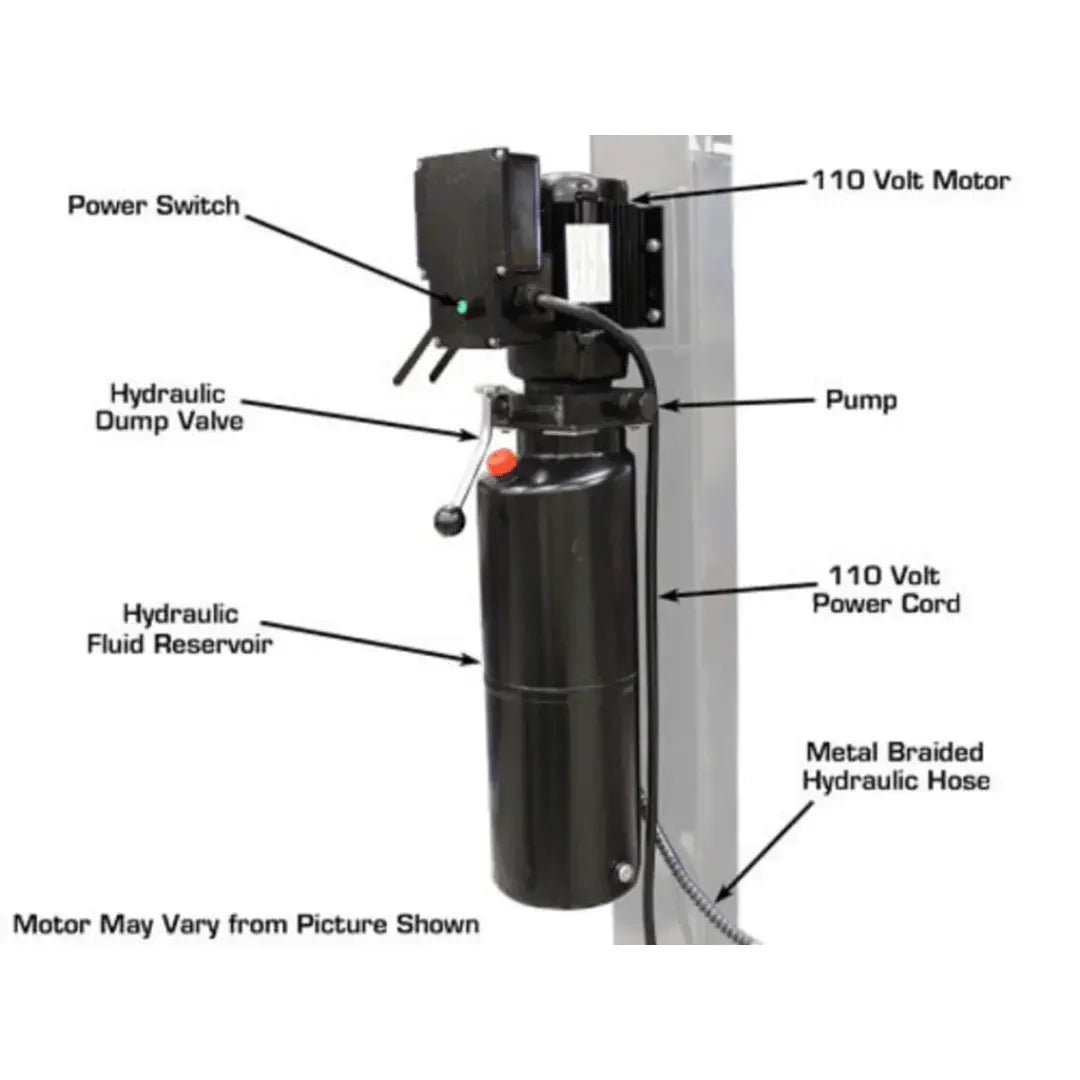

- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
- Shipping Weight 1,850 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

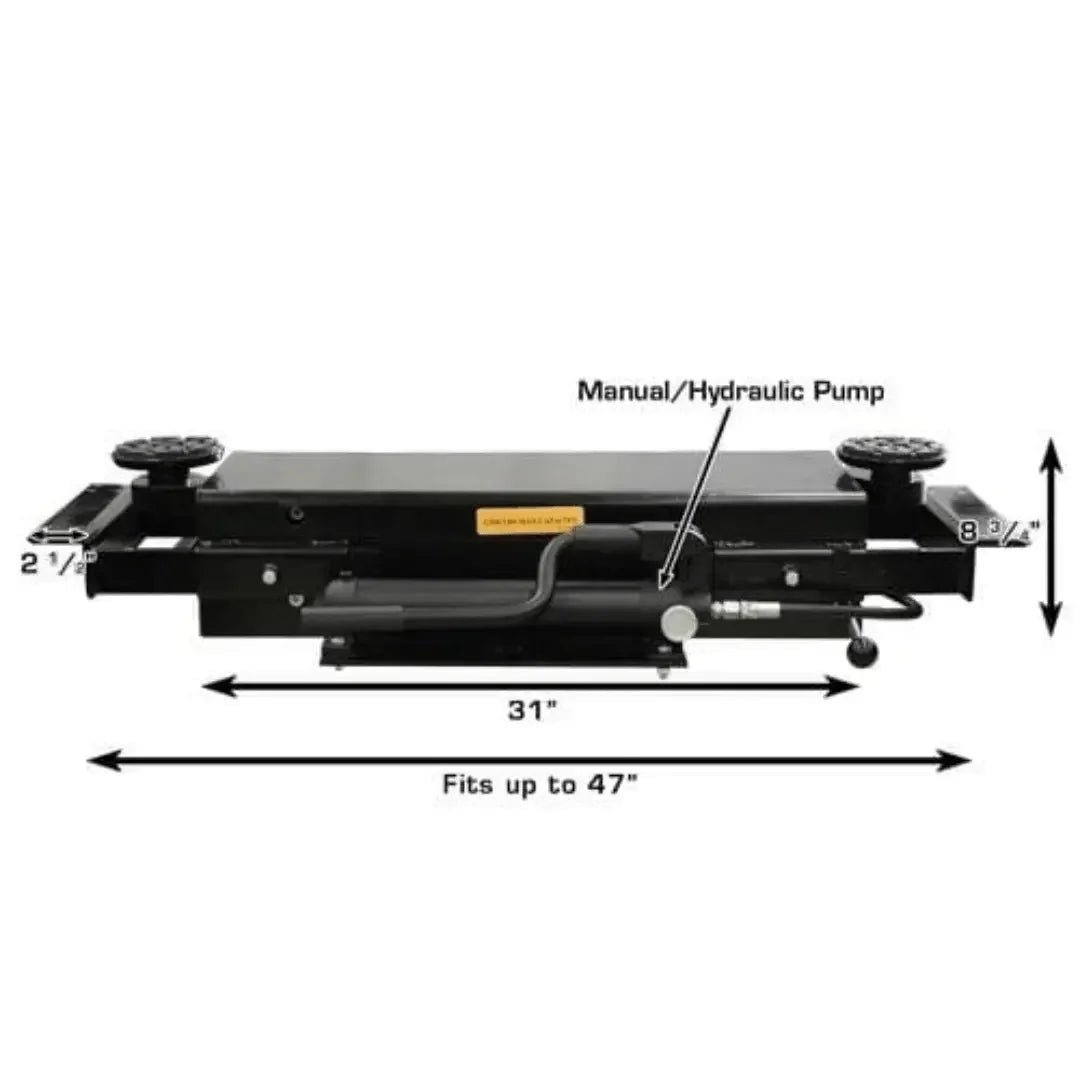

RJ35 Sliding Bridge Jack
- Sliding Bridge Jack
- Capacity: 3,500 lbs.

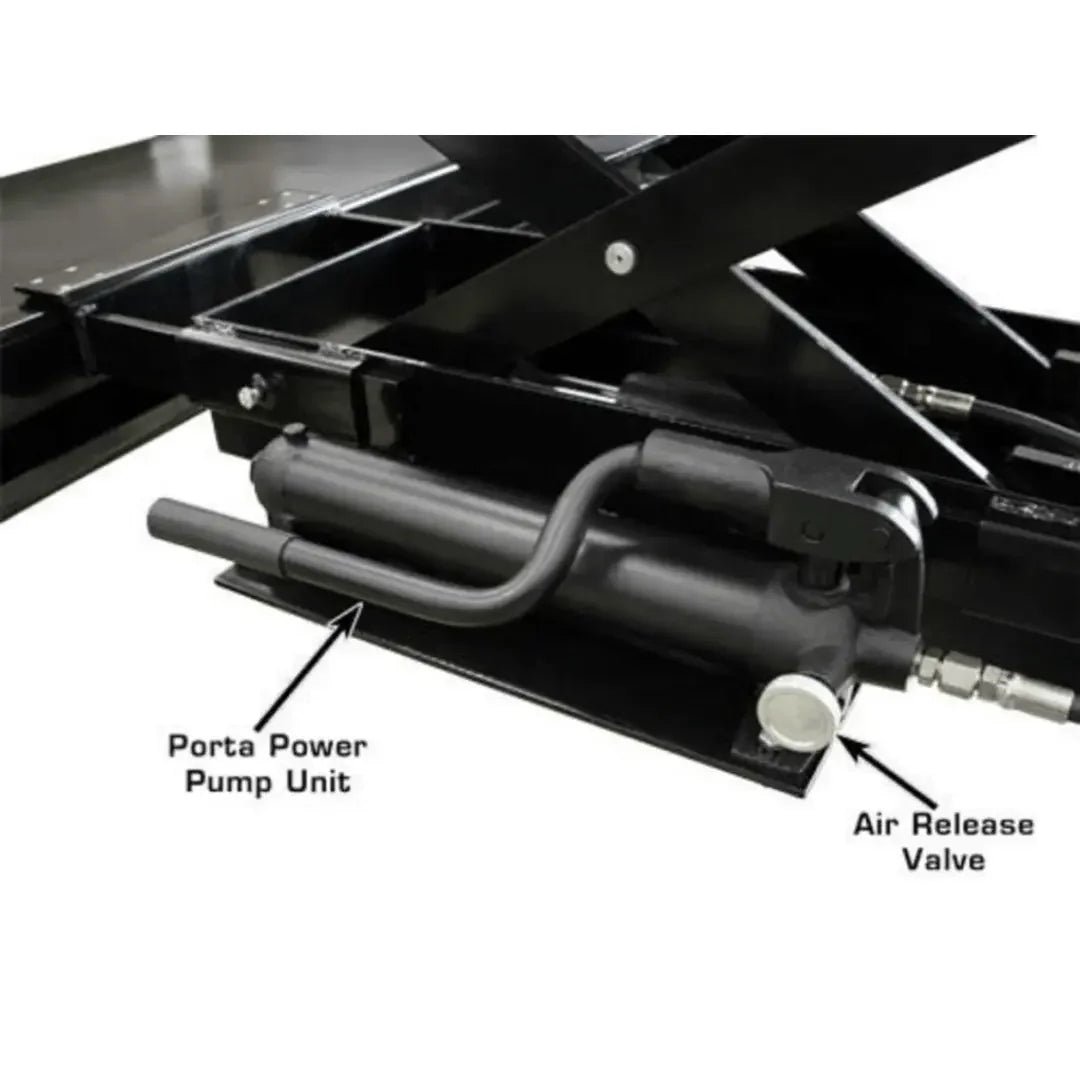

- Manual, hand pump operated
- Scissor mechanism allows for level lifting
- Low Profile, Compact Design
- Adjustable Width to fit many 4-post lifts
- Adjustable Lift Arms to reach many lifting points
- Multiple Safety Lock Positions

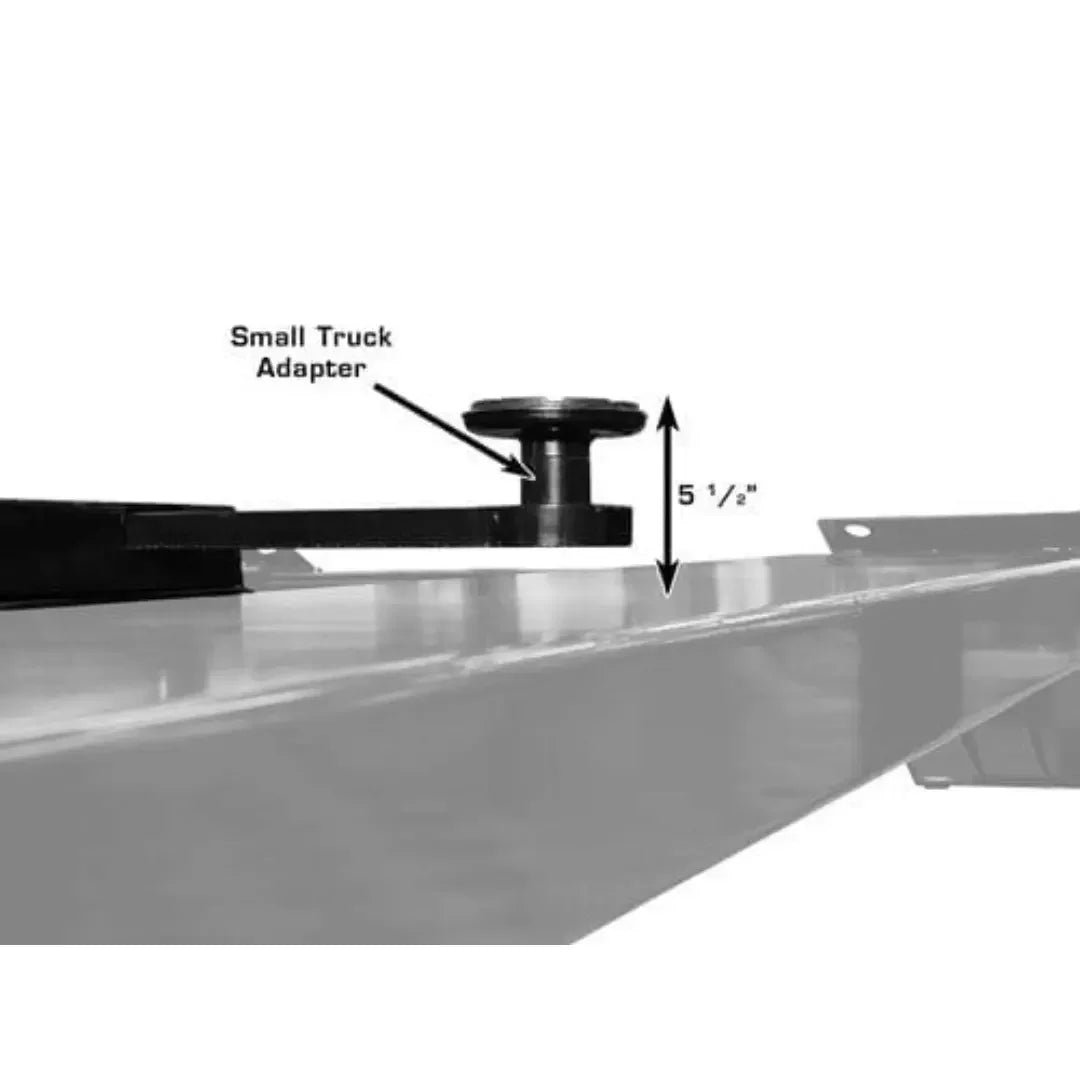

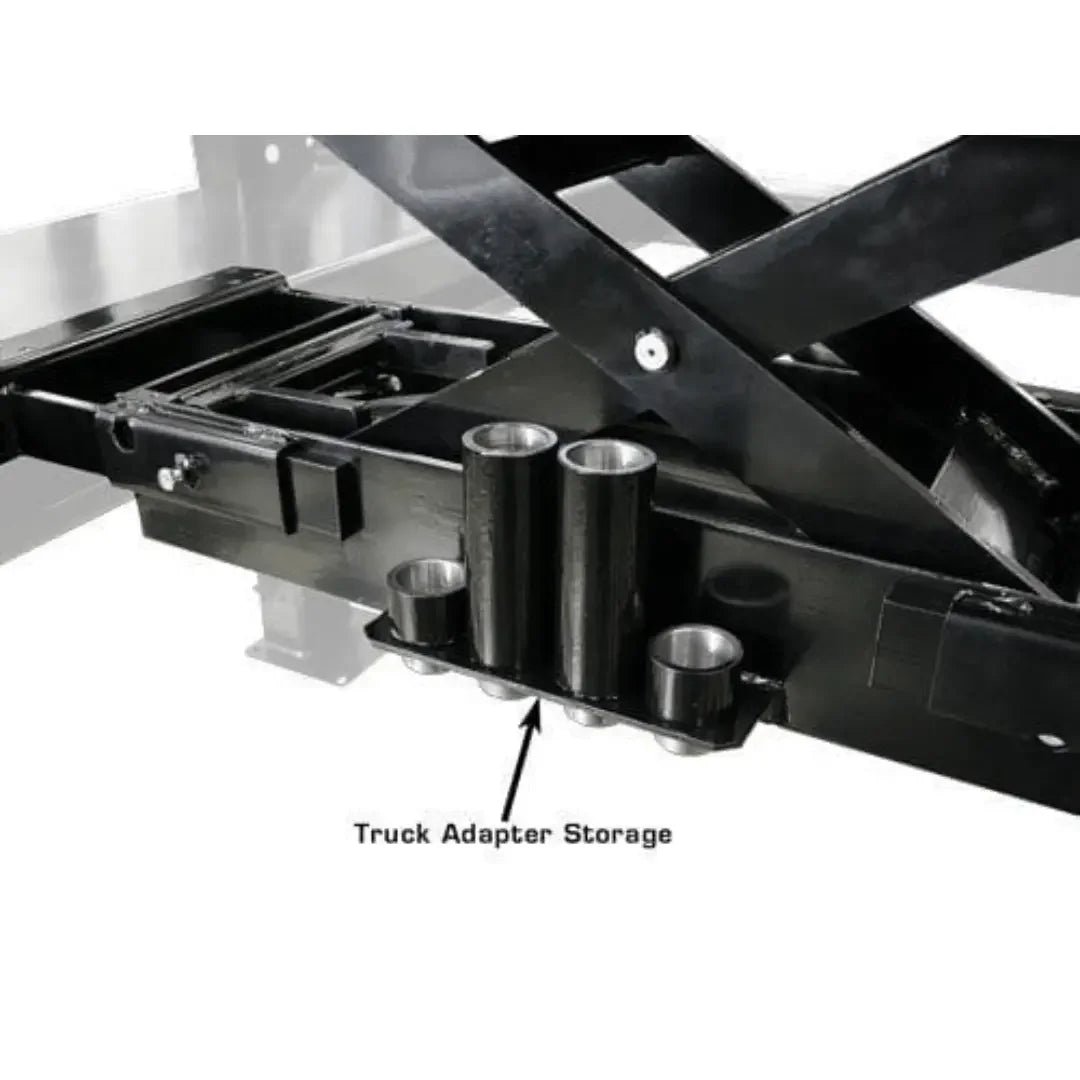

- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Product Specifications

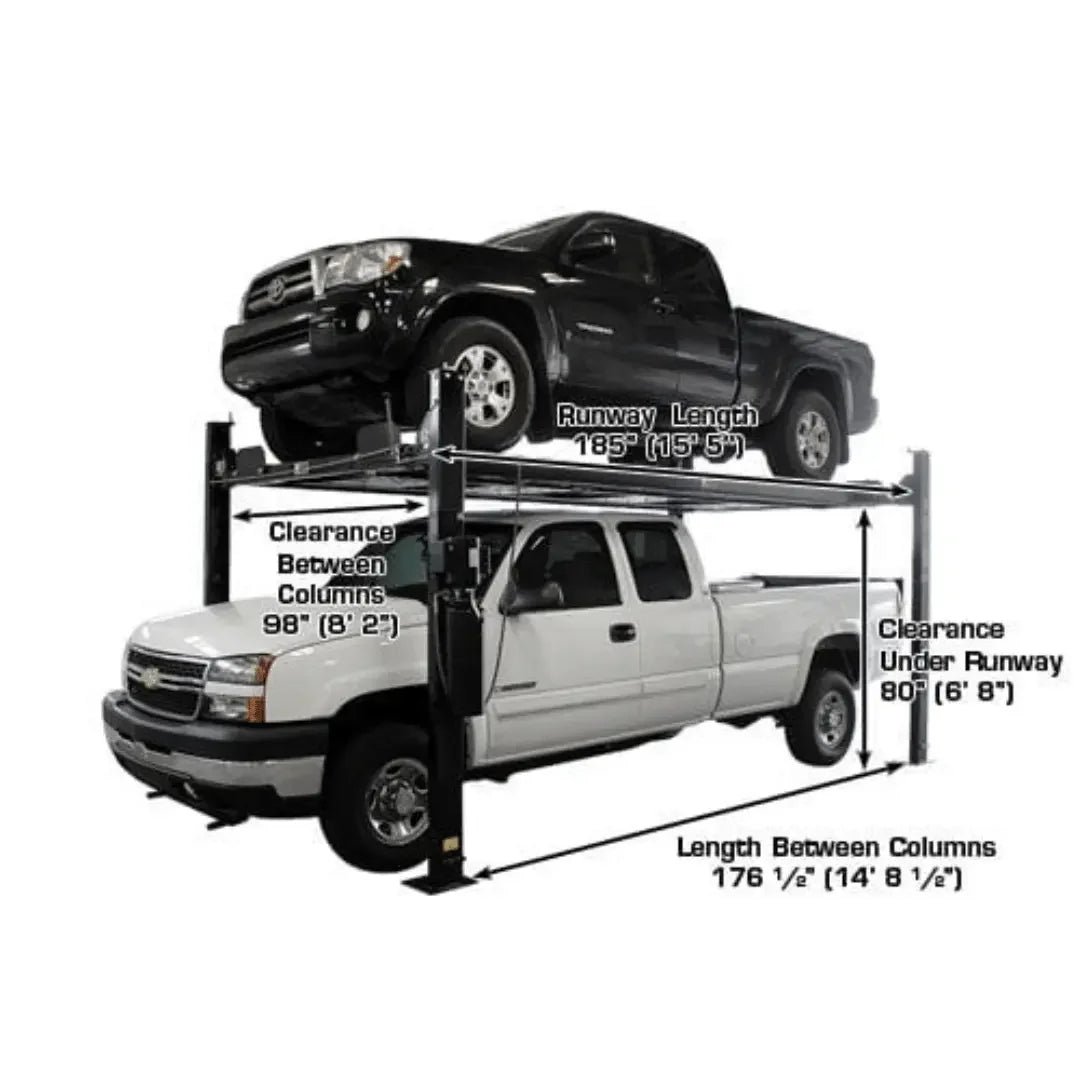

Atlas® Garage PRO8000EXT-L Specifications
| Capacity | 8,000 lbs. |

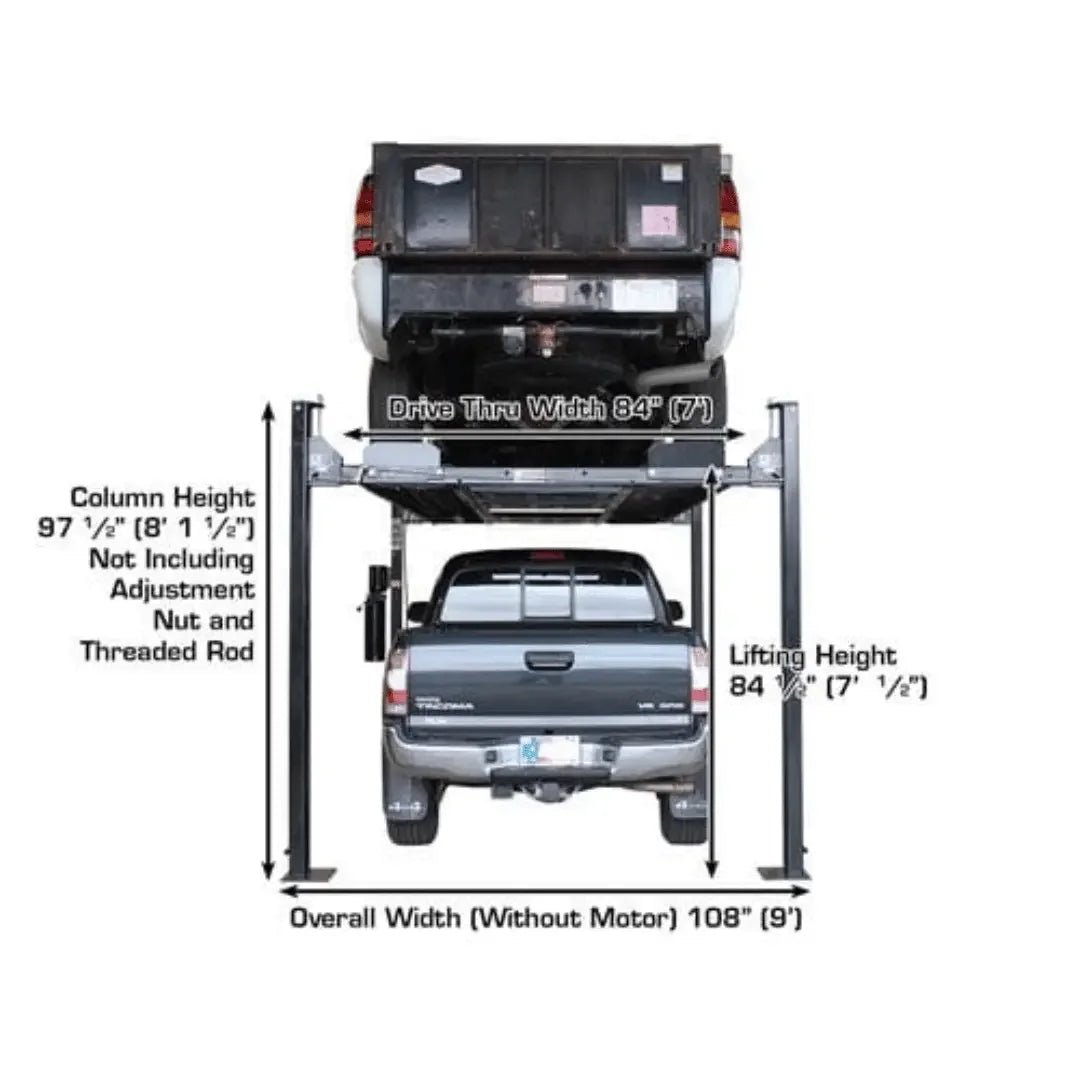

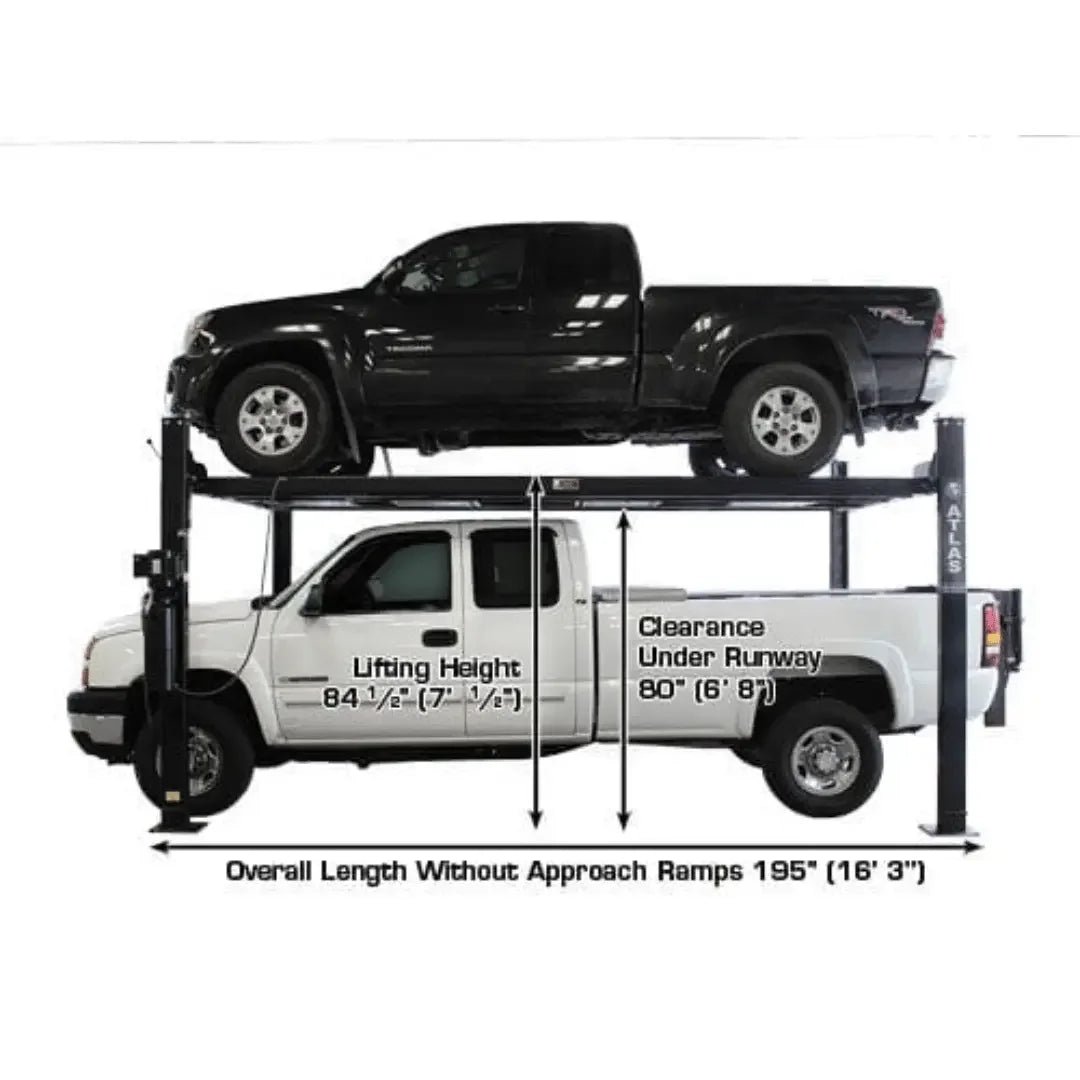

| Lifting Height, Top of Runway | 84″ (7′) |
| Clearance Under Runways | 78 1/2″ (6′ 6 1/2″) |

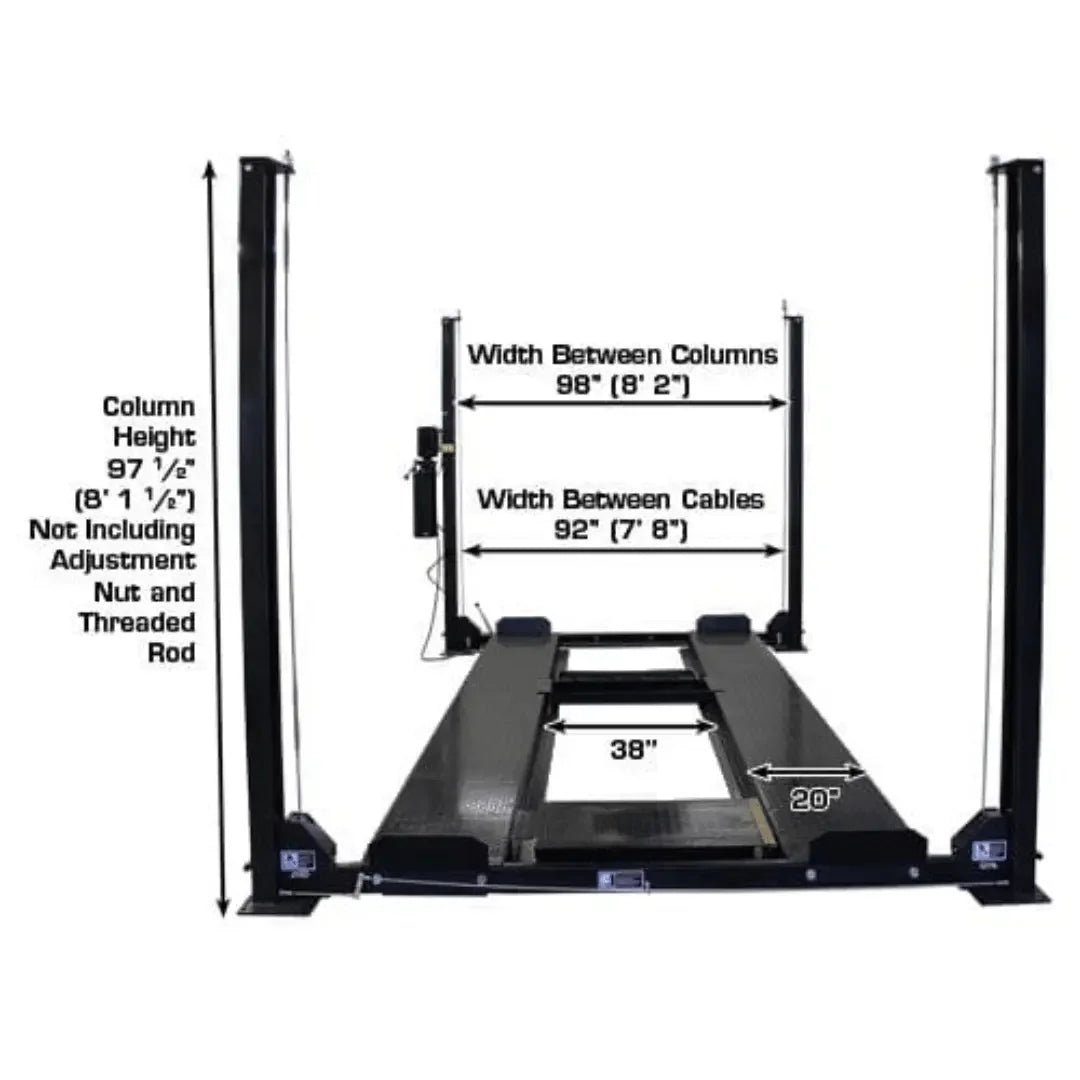

| Height Of Columns | 98 1/2″ (8′ 2 1/2″) |
| Overall Width (Without Motor) | 108″ (9′) |

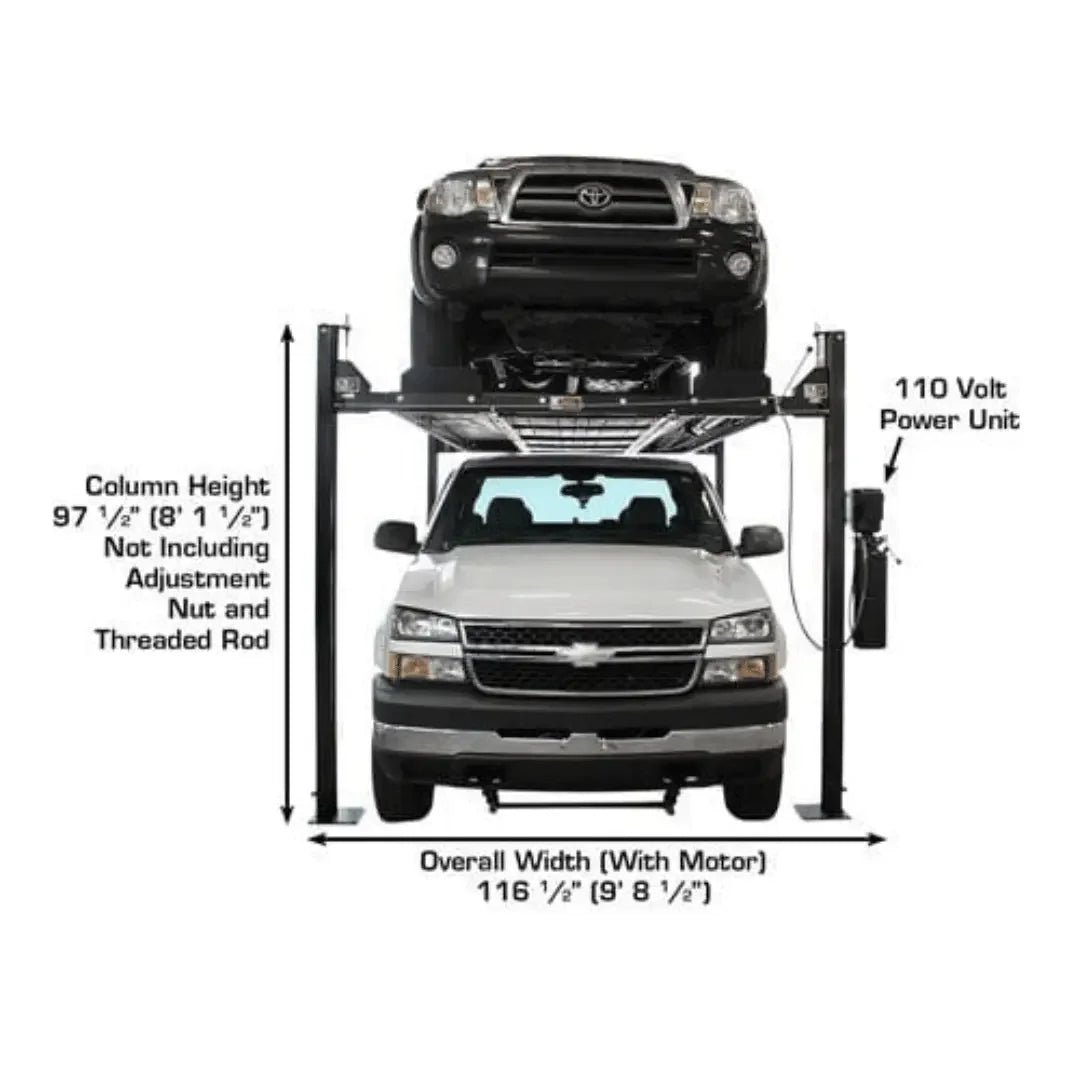

| Overall Width (With Motor) | 116 1/2″ (9′ 8 1/2″) |
| Overall Length With Approach Ramp | 222″ (18′ 6”) |
| Approach Ramp | 37″ (3′ 1″) |

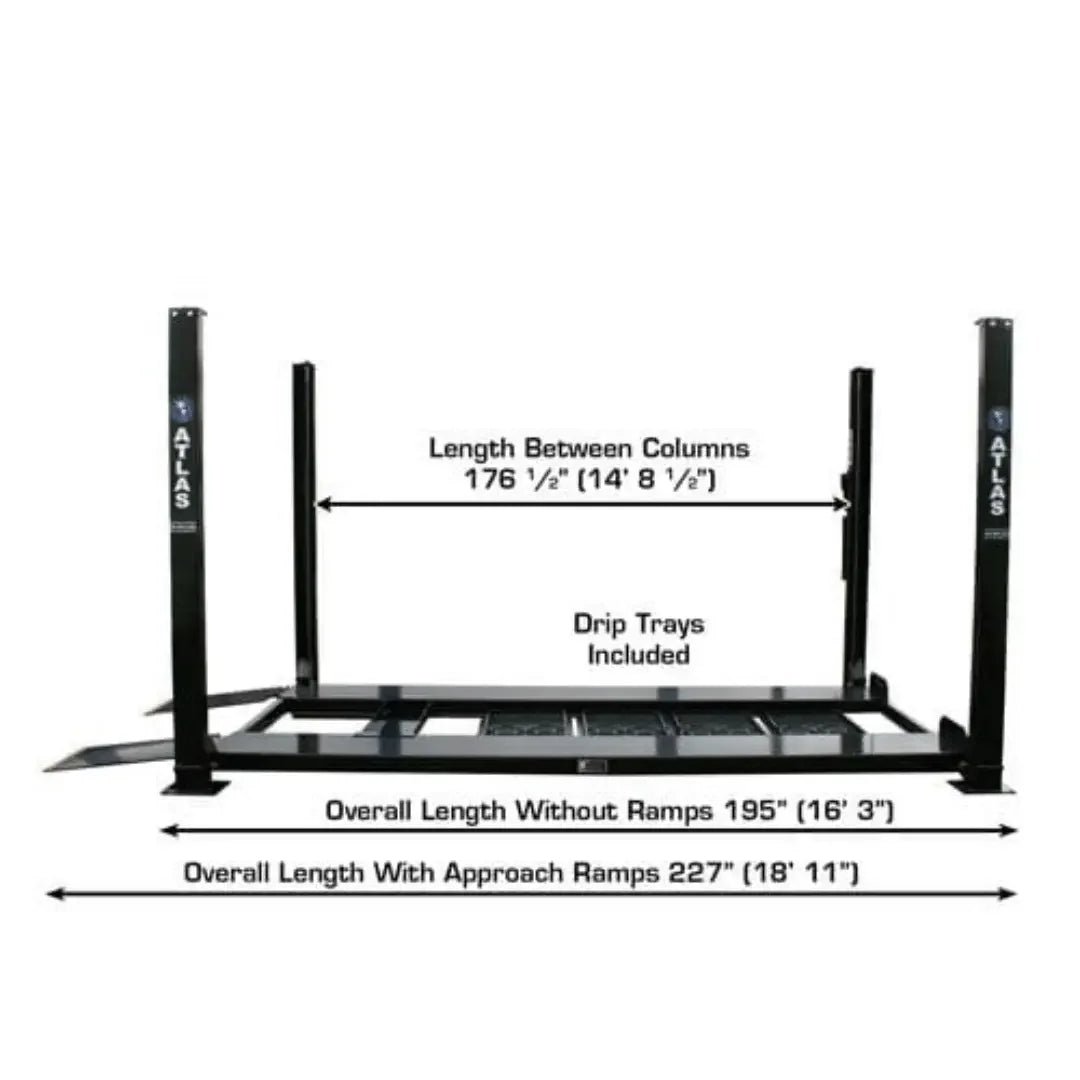

| Length Between Columns | 176 1/2″ (14′ 8 1/2″) |

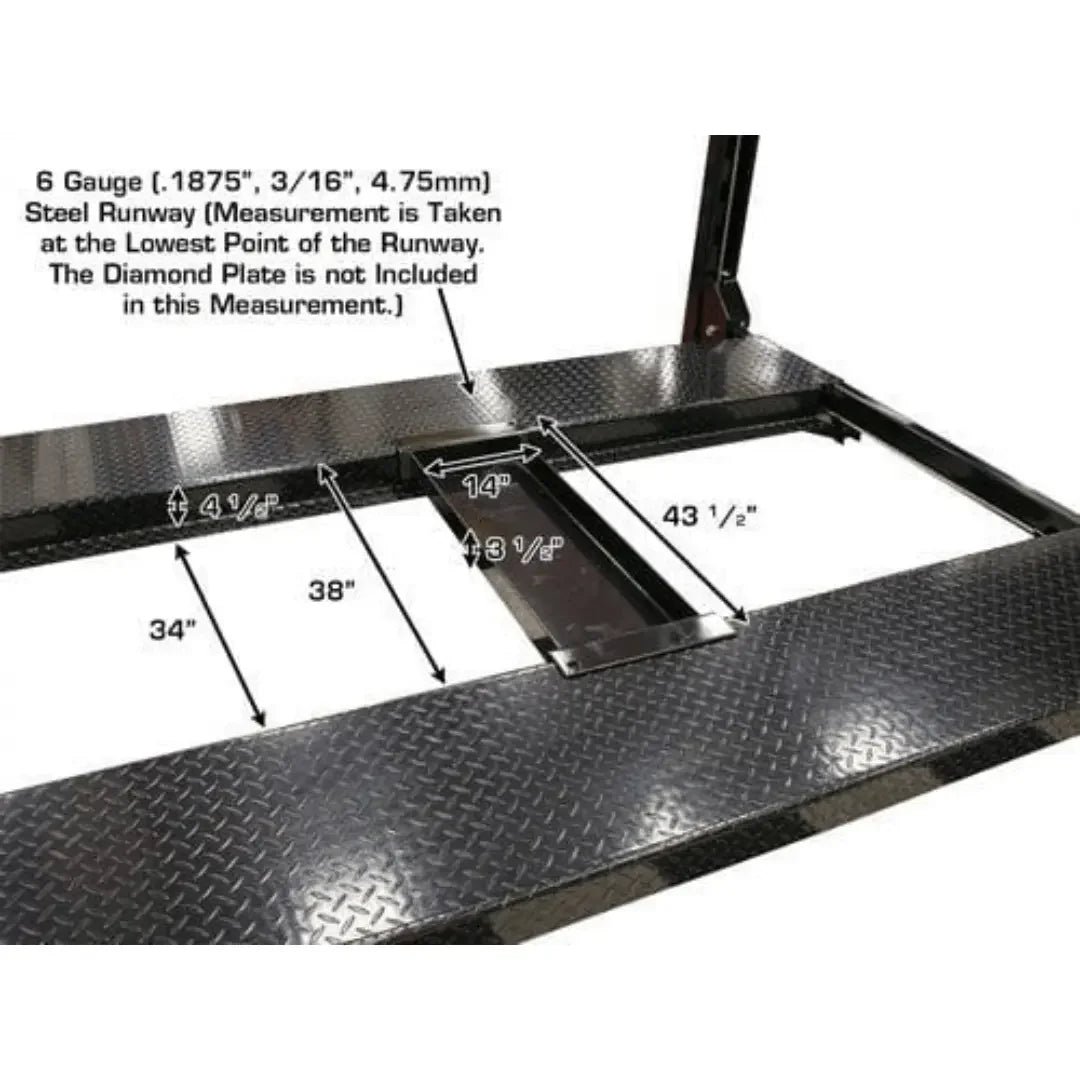

| Runway Width | 22″ (w/ Rails) or 18 3/4″ (Driving Surface) |
| Runway Length | 185″ (15′ 5”) |
| Runway Thickness | 4 1/2″ |
| Width Between Runways | 38″ (3′ 2″) w/ Rails 34″ (2′ 10″) |
| Outside Runway To Outside Runway | 77 3/4″ (6′ 5 3/4″) |
| Clearance Between Columns | 98″ (8′ 2″) |

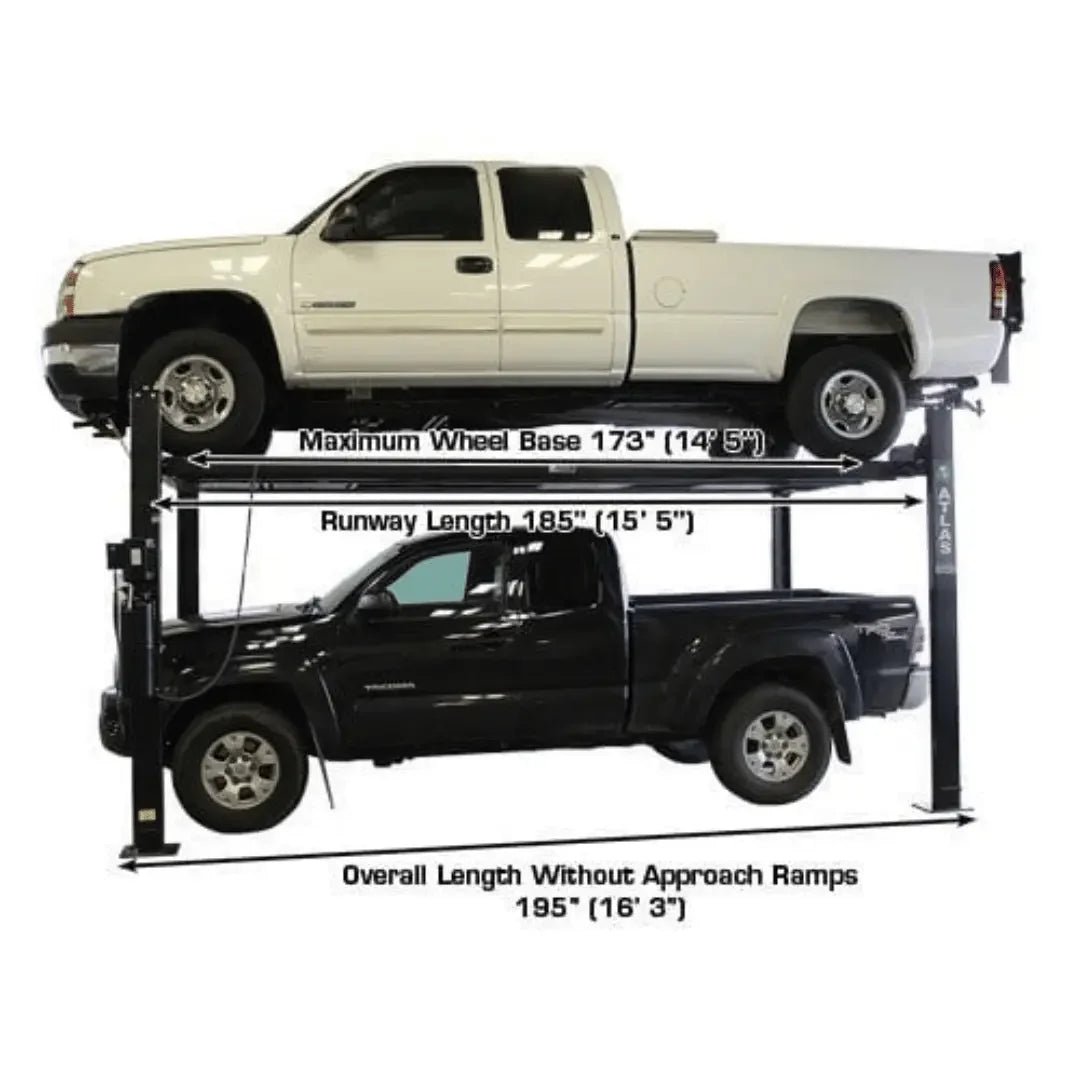

| Maximum Wheel Base | 173″ (14′ 5″) |
| Drive Thru (Outside Of Tire To Outside Of Tire) | 84″ (7′) |
| Motor/Electrical Requirement | 110volt, 30 amp breaker required |
| Shipping Weight | 1,900 lbs. |

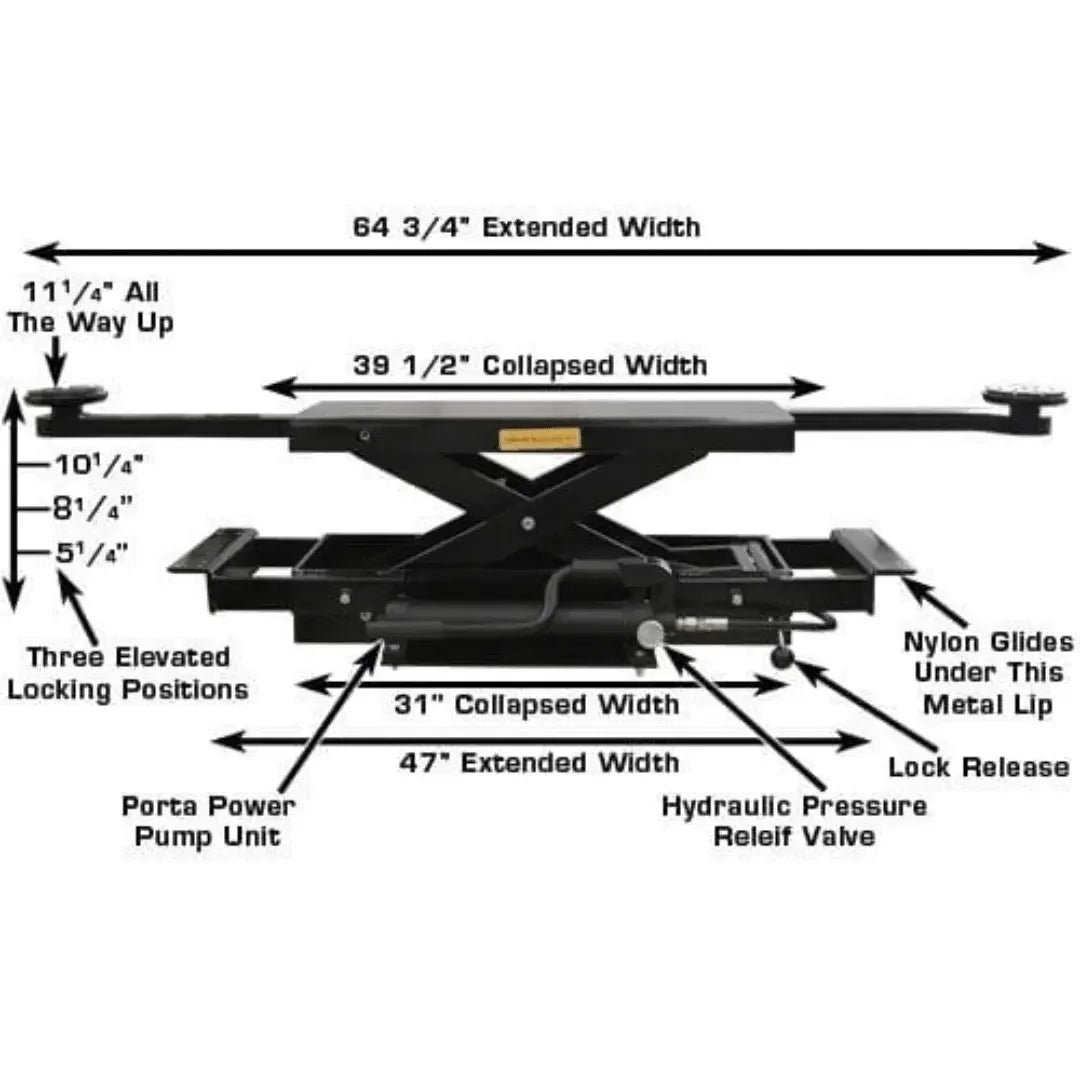

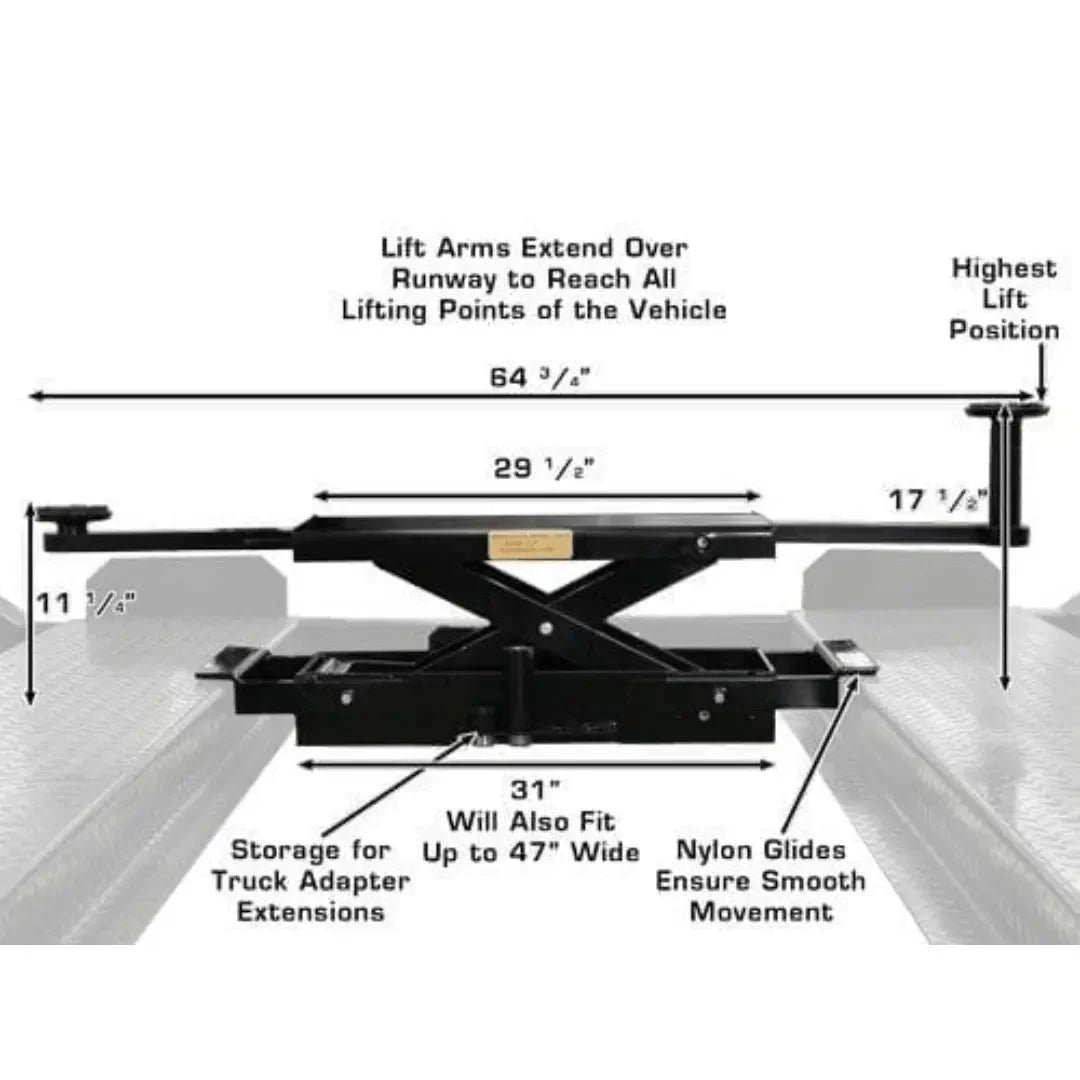

Atlas® PROJACK35 Specifications
| Maximum Capacity | 3,500 lbs. |
| Maximum Width | 64 3/4″ (5′ 4 3/4″) |
| Minimum Width | 29 1/2″ (2′ 5 1/2″) |
| Minimum Height with Lift Pad Above Runway | 3 1/2″ (MAY VARY BY LIFT) |
| Lift Pad Height Above Arm | 1 3/8″ |
| Max Raised height w/o Adapters | 11″ |
| Max Raised height w/ Adapters | 17 1/4″ |
| Adapter Heights | 2 each 1.5″, 5″ |
| Arm Hole/Adapter Peg Size | 1.5″ |

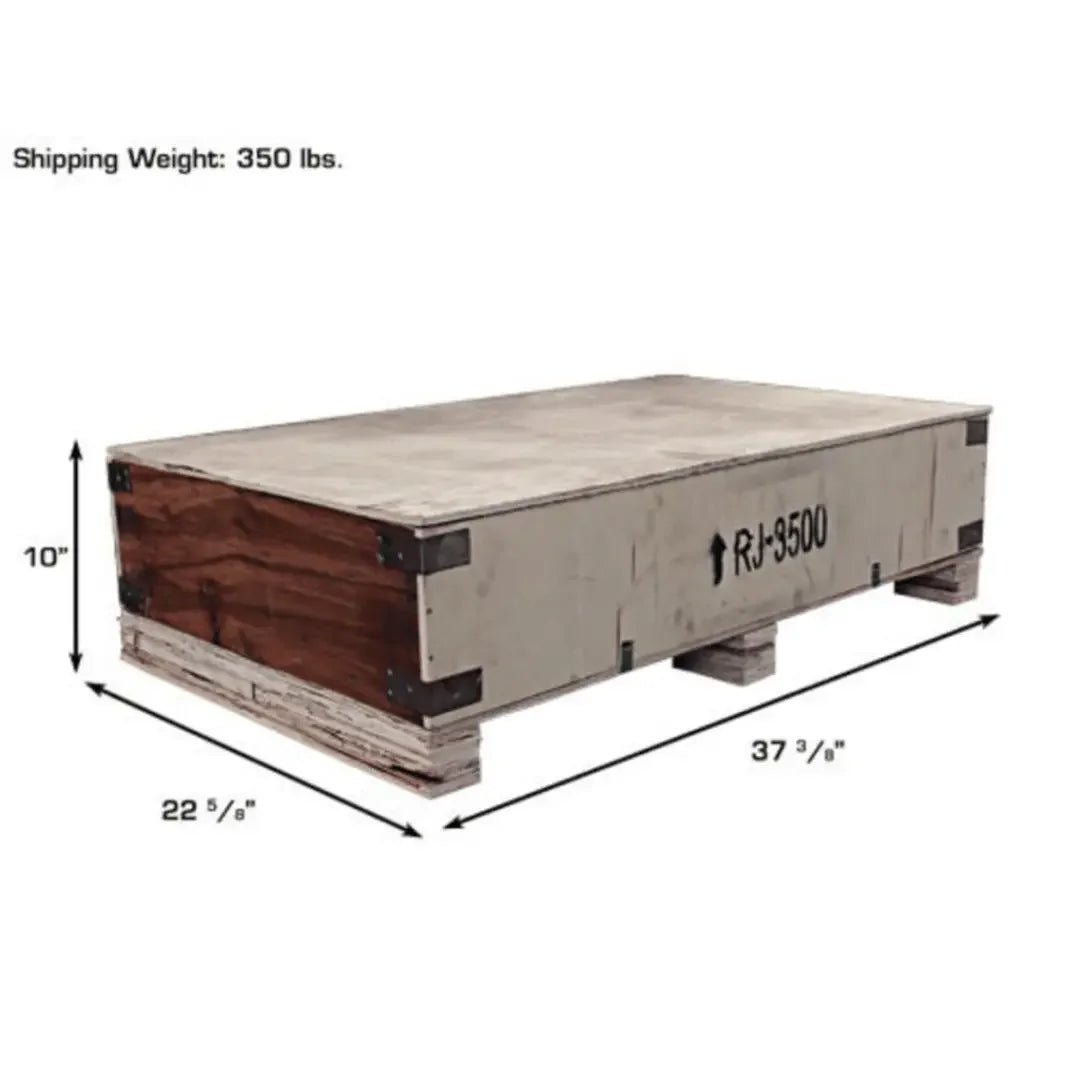

| Shipping Weight | 350 lbs |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Atlanta, GA; Fresno, CA; Phoenix, AZ; Indiana, IN; and New Jersey, NJ.
