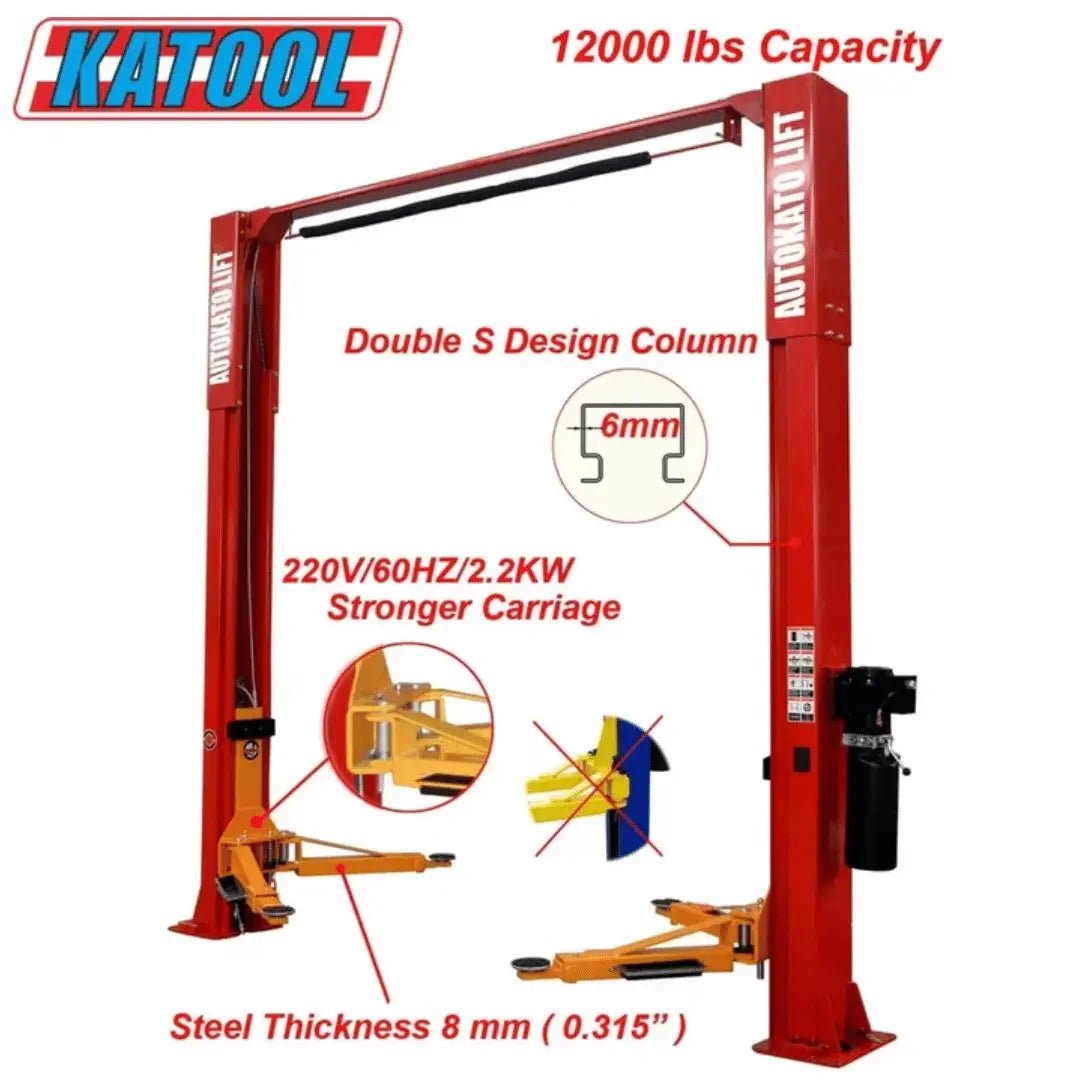

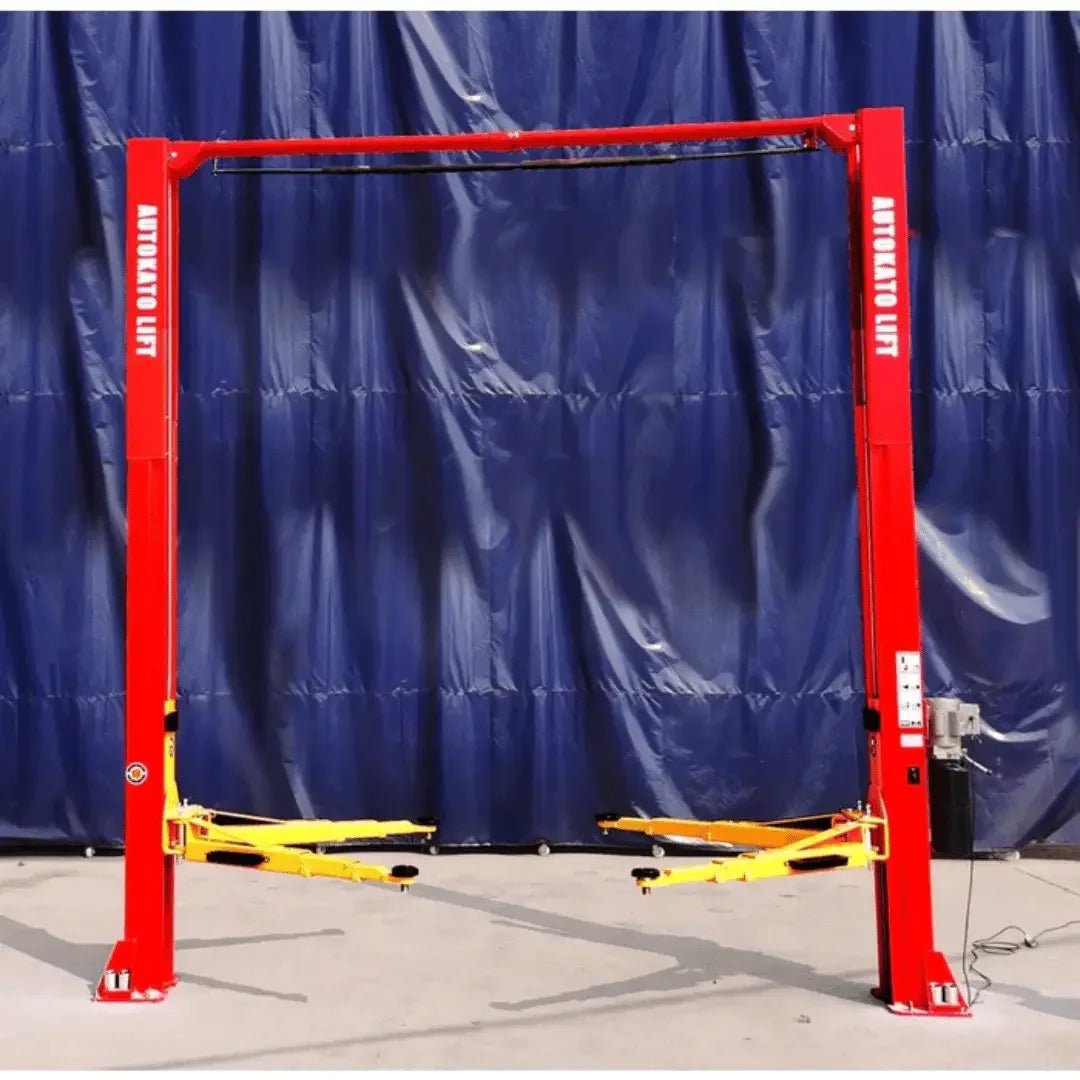

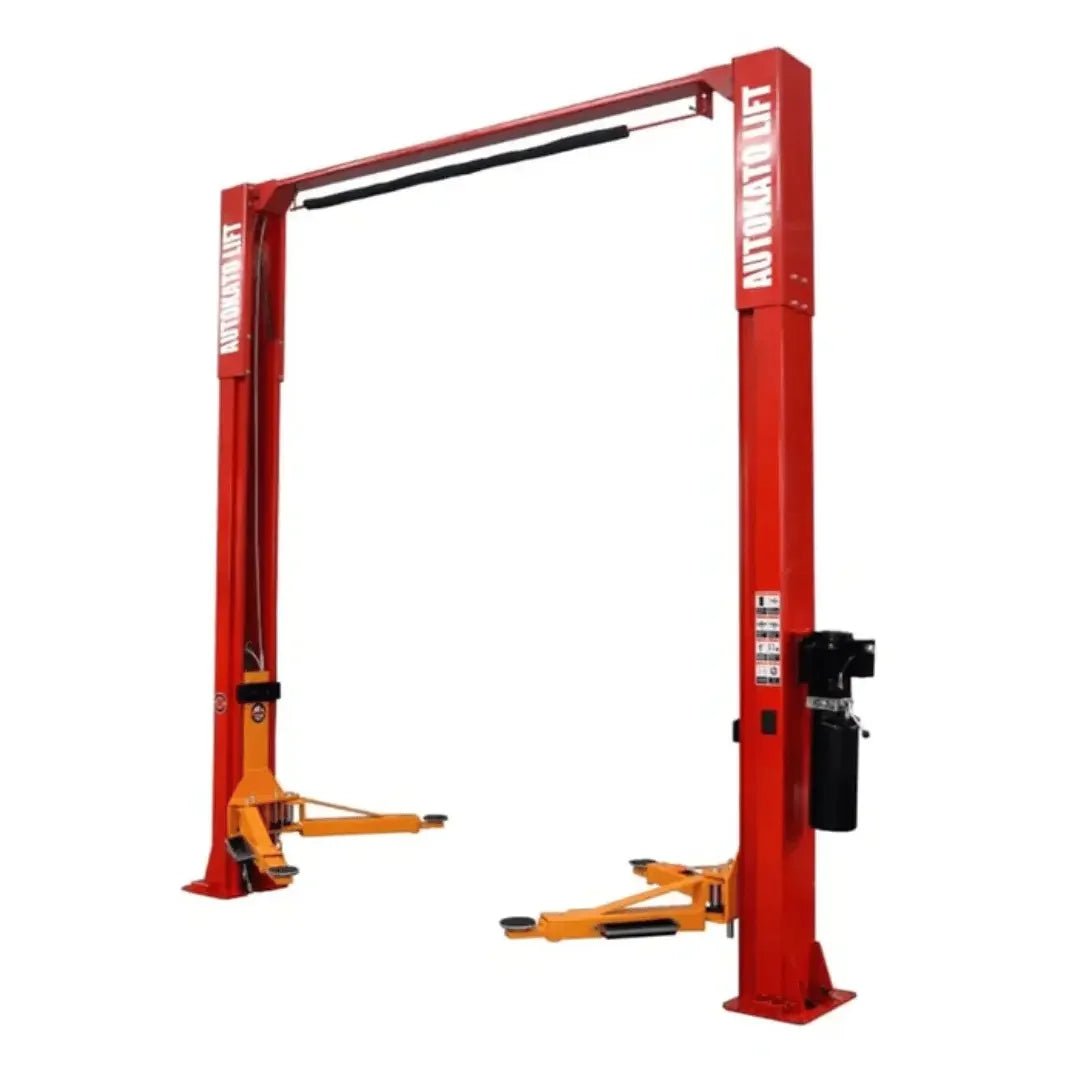

Katool KT-M120 12,000 lbs Lift | Two Post Clear-floor Vehicle Lift
The Katool KT-M120 12,000 lbs lift Two Post Clear-floor Vehicle Lift is a robust lifting solution with a 12,000lbs (5500KG) capacity. CE Approved and Certified, it surpasses safety standards, undergoing rigorous 115% dynamic loading and 150% static loading capacity tests. With a manual safety release from two sides, symmetric arms, and dual Hydraulic Chain-Drive Cylinders, it ensures secure and efficient lifting. The rubber pad door opening protection, extended support adaptor sets of +30mm and +120mm, and overhead safety shutoff bar enhance user safety and lift versatility. Featuring feet-protection safety guardrails with a tools box, it combines convenience with safety. The lift operates seamlessly with a high-quality hydraulic system, offering flexibility with optional 220V/60HZ/1PH or 110V/60HZ/1PH configurations.
*Concrete thickness must be at least 5.9 (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customers responsibility to verify concrete thickness and strength before purchase and installation.
Product Features
- 12000lbs(5500KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

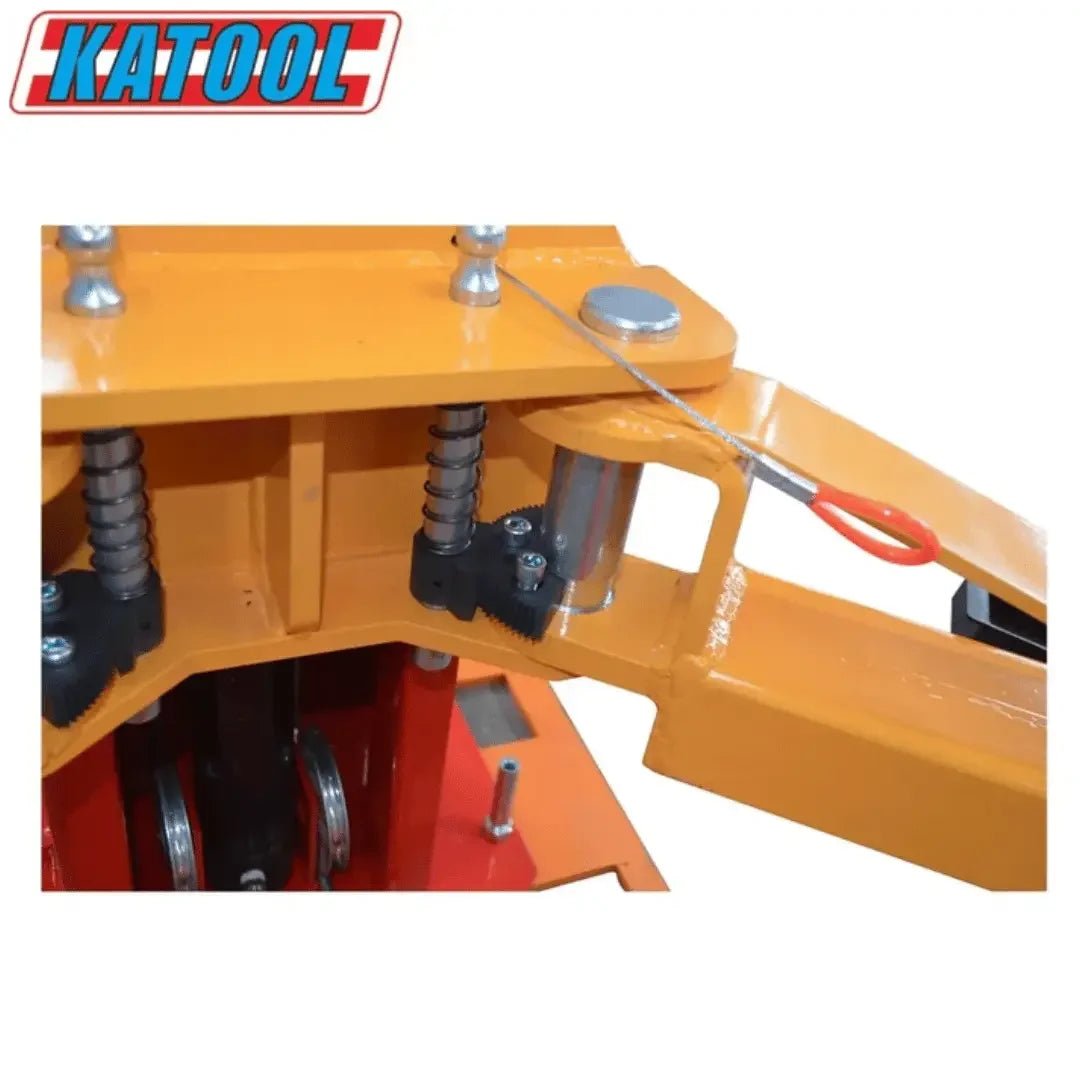

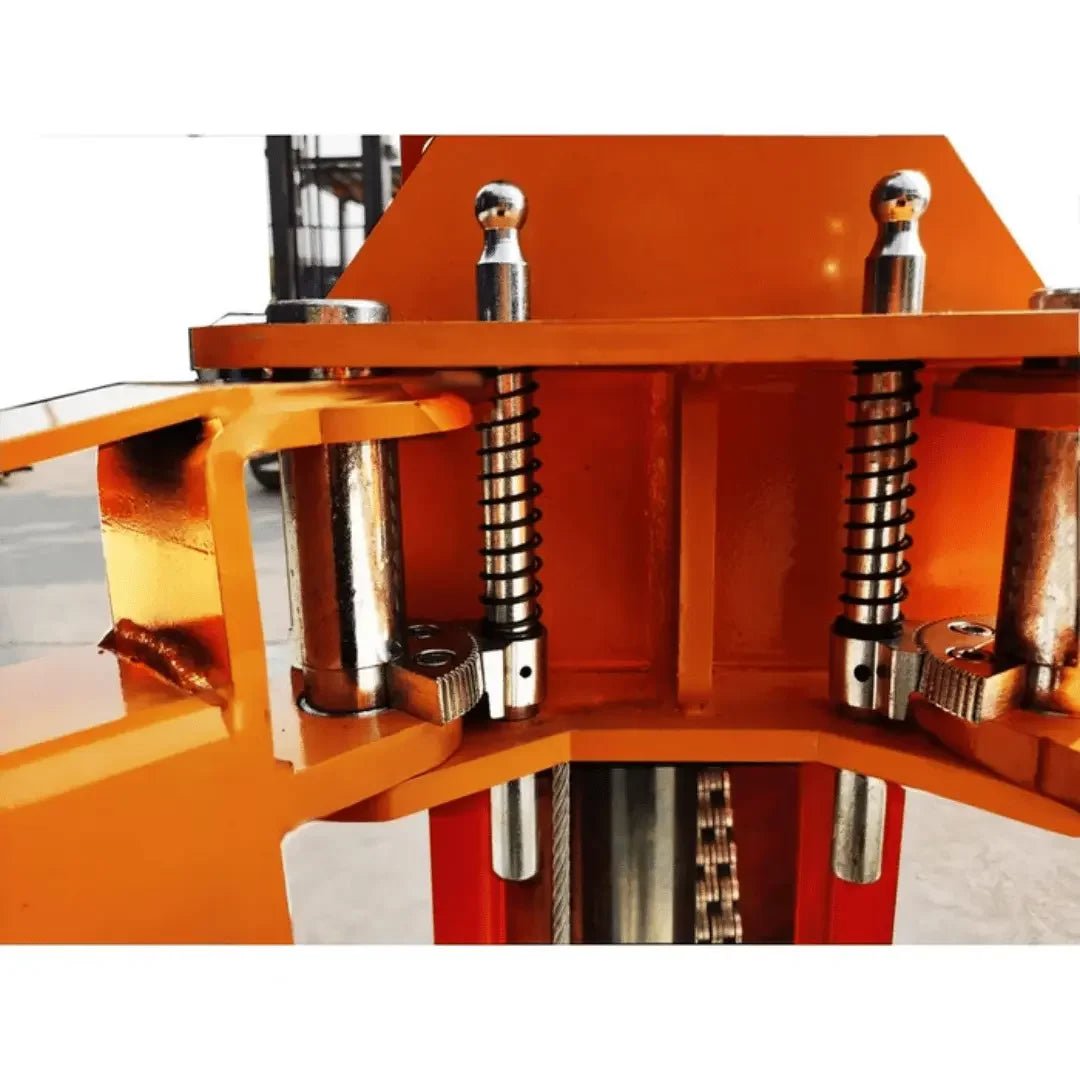

- Manual safety release from two sides

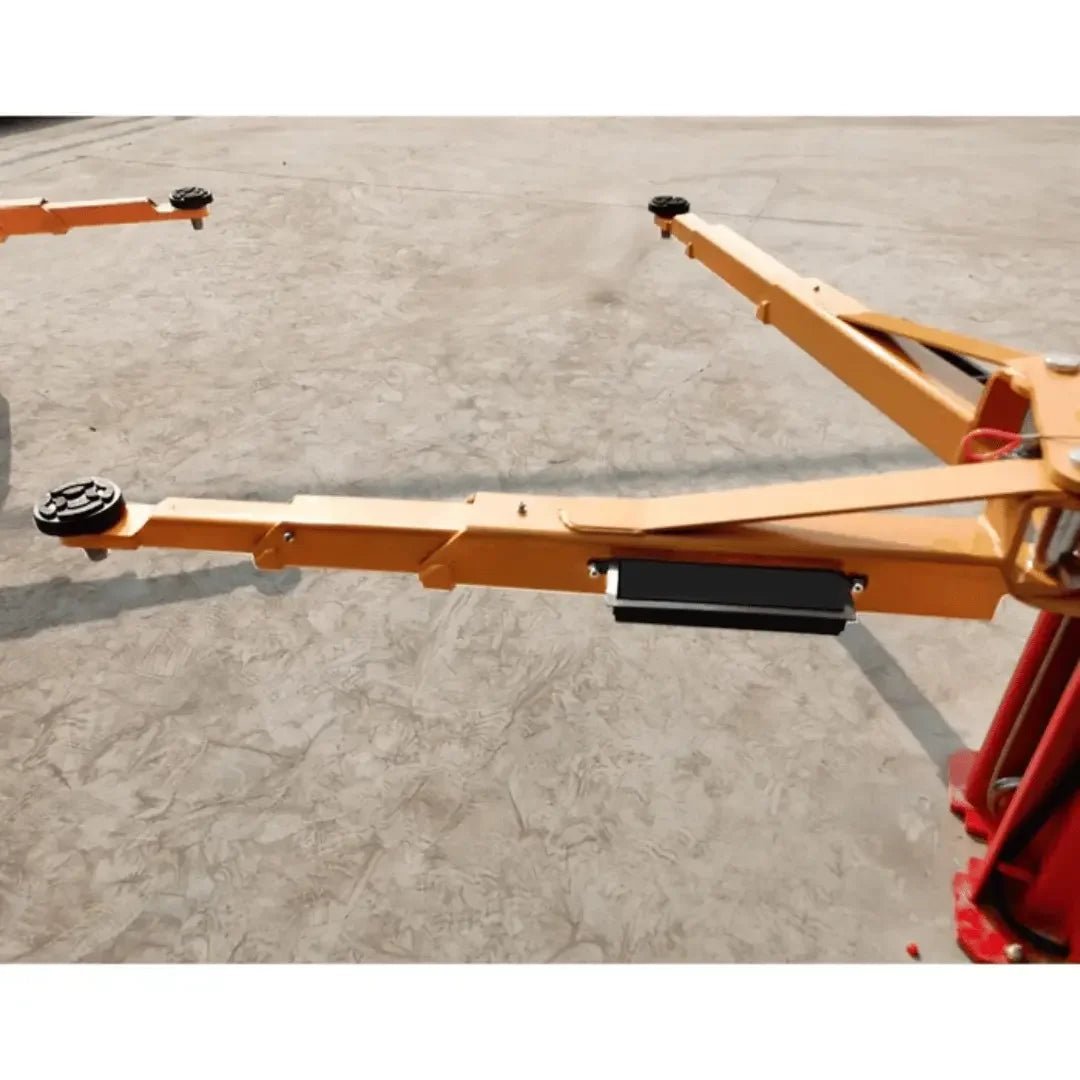

- Symmetric arms
- Dual Hydraulic Chain-Drive Cylinders
- Rubber pad door opening protection
- Comes with extended support adaptor sets of + 30 mm and + 120 mm
- Overhead safety shutoff bar
- Feet-protection safety guardrails with tools box
- High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional)
Product Specifications
| Lifting Capacity | 12000 lbs. (5500KG ) |
| Max. Lifting Height | 70.75″ / 1800mm |
| Min. Height | 4.25″ / 110mm |
| Height Overall | 166.75″ / 4235mm |
| Width Overall | 165.5″ / 4204mm |
| Outside Columns | 151.25″ / 3840mm |
| Inside Columns | 130″ / 3390mm |
| Drive Thru Clearance | 117.75″ / 2990mm |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 1653lbs/750K |
Installation
Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
