Description

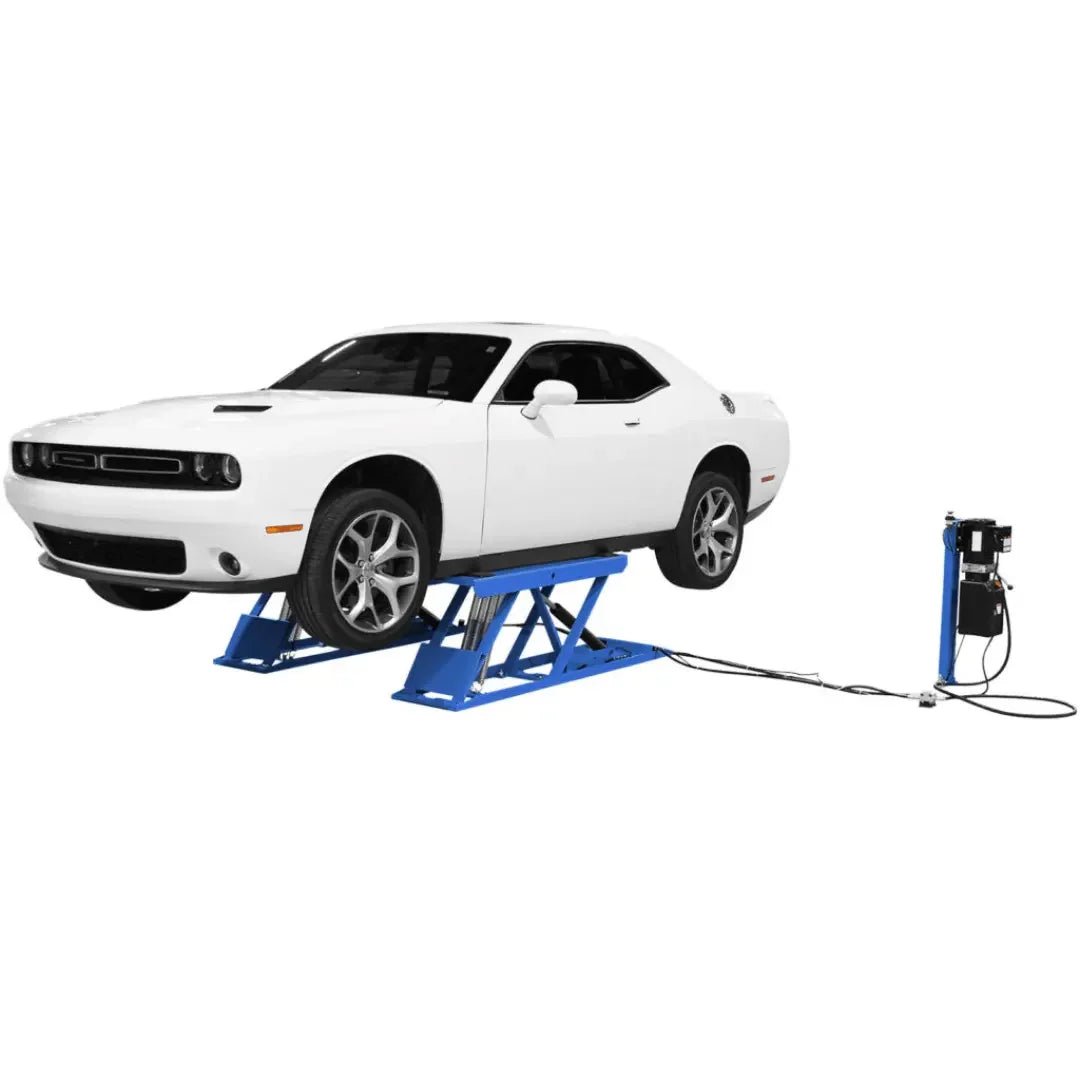

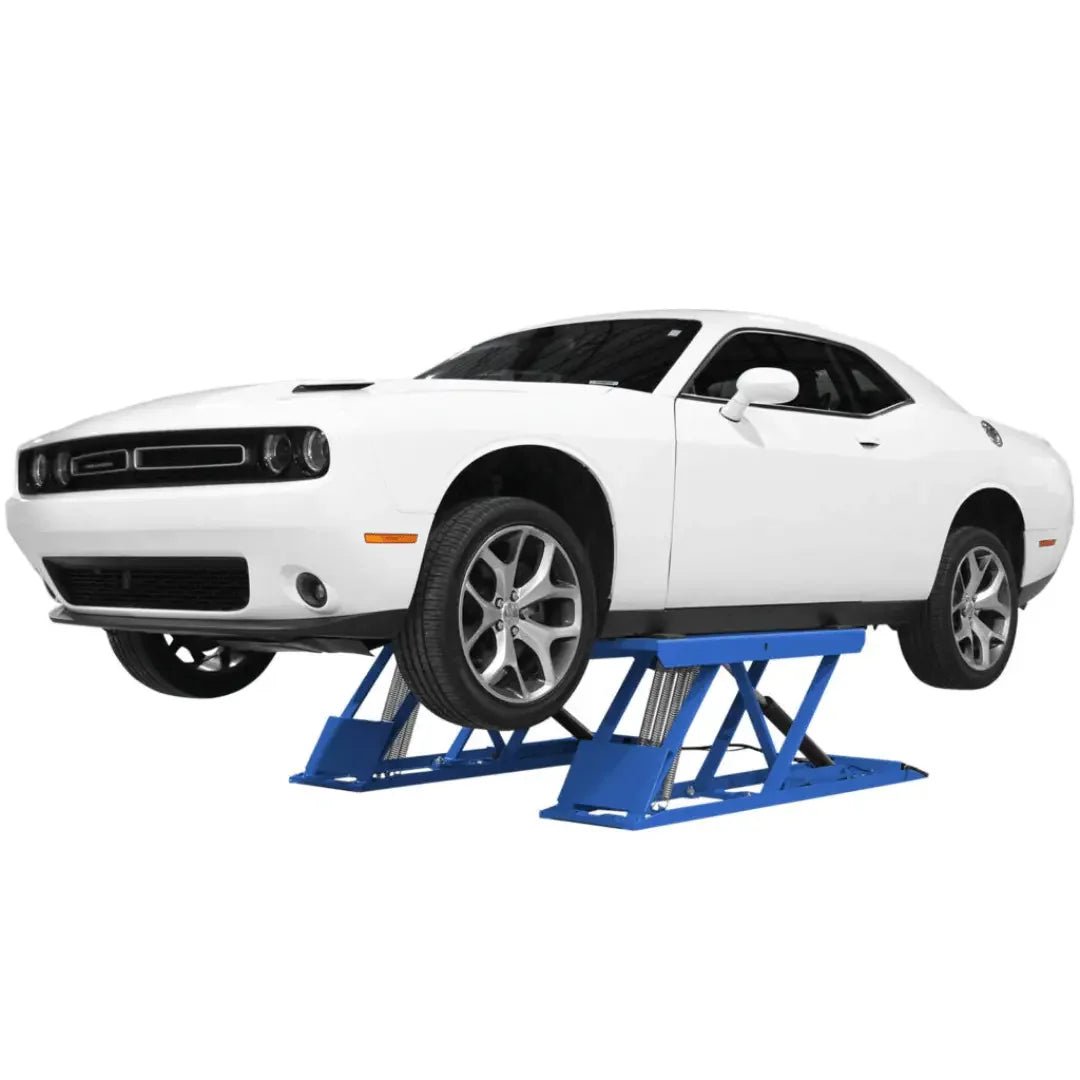

Atlas 6PL Open Center Low Rise 6,000 lb Capacity Scissor Lift
The Atlas® 6PL 6,000 lb. capacity low rise scissor lift is ideal for quick service work situations involving tire and brake work.The open center design of the 6PL low rise lift also allows easier access to the underside of any vehicle being lifted. The 6PL comes with non-slip pads that provide a great contact surface and a set of four high density rubber blocks that help protect lifting points on most vehicles.

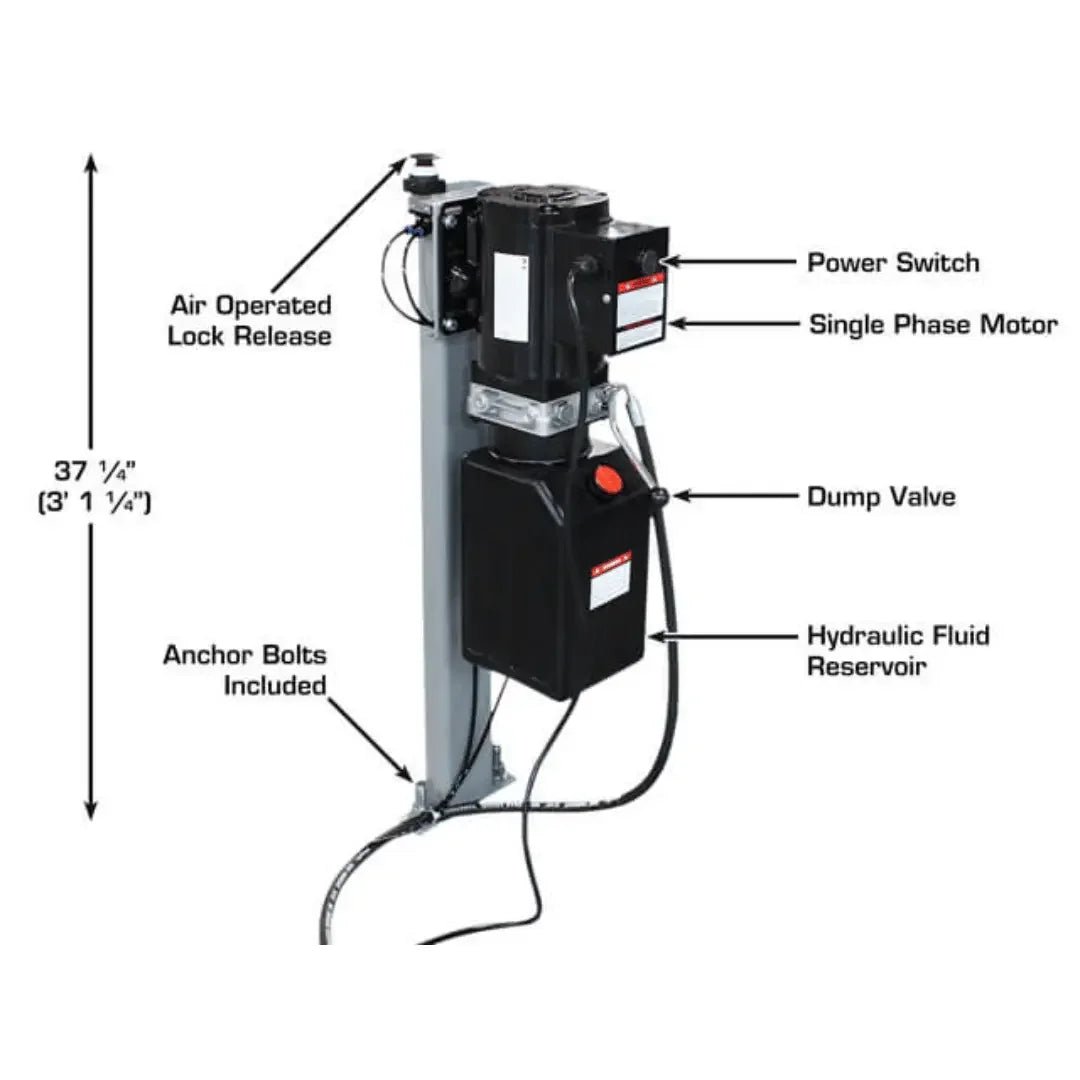

Simply drive the car over the Atlas® 6PL open center scissor lift and position the rubber blocks (if needed) under the correct lifting points of the vehicle. Press the button the power unit and lift the vehicle to the desired height. Depress the “dump valve lever” on the power unit and lower the lift to the closest locking position.
Due to the horizontal cylinder configuration of the 6PL it is important to allow some space (2-6 inches) between the lifting surface of the lift and the vehicle’s lifting points.
Product Features
- 6,000 lb. Capacity
- Open Center Design
- Commercial Grade Quality
- 4 Non-Slip Rubber Pads
- Drive Over Ramps
- Great for Tire and Brake Work
- Heavy Duty Rubber Lifting Blocks Included
- Mounting Hardware Included
- Air-Operated Single Point Lock Release (External Air Supply Required)
- 110volt Electric Operation
- Shipping Weight: 850 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
Product Specifications
| Model | 6PL |
| Capacity | 6,000 lbs. |

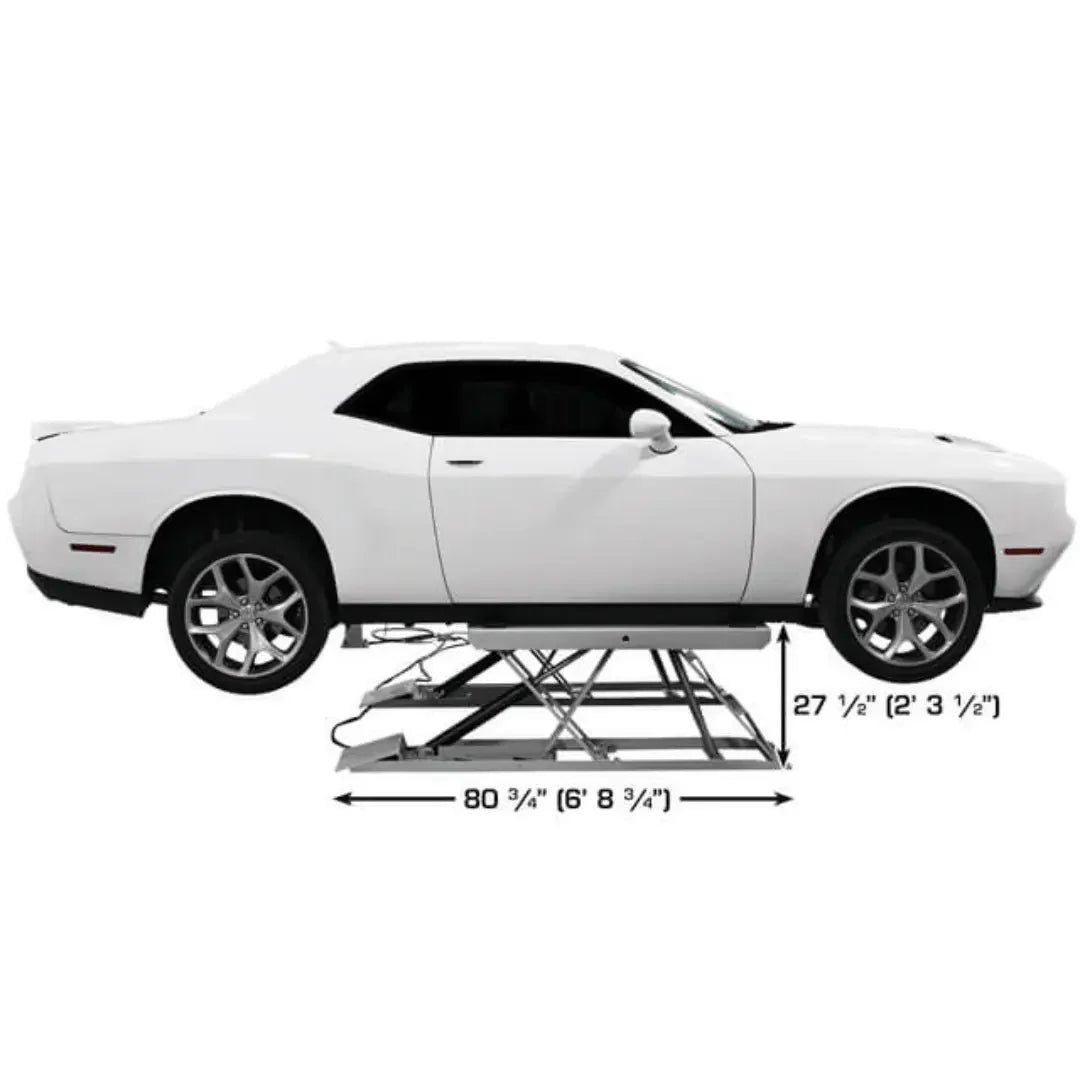

| Maximum Lifting Height With Blocks | 26″ (2′ 2″) |
| Platform Dimensions | 53″ x 18″ |

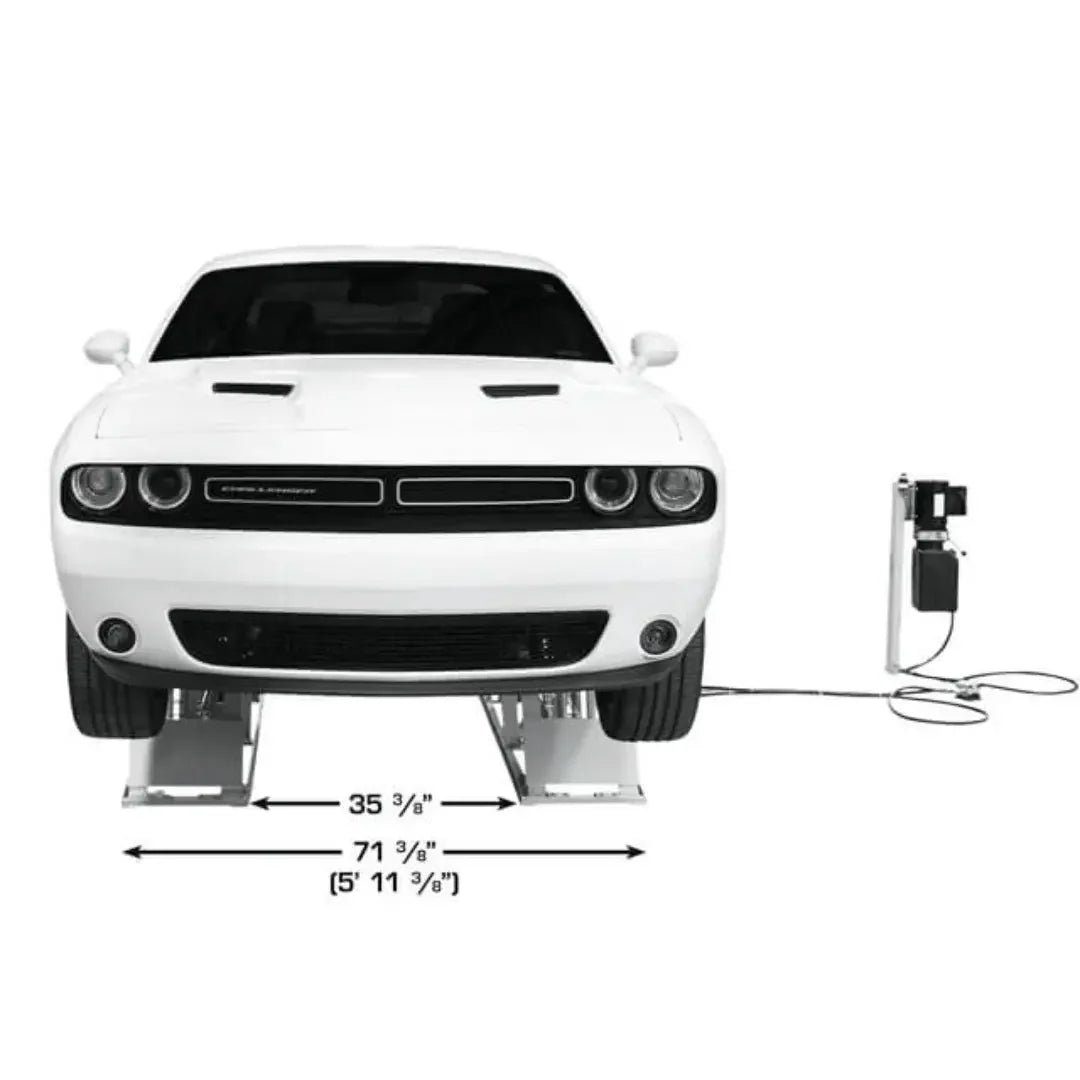

| Overall Width | 71″ (5′ 11″) (Can be installed closer if desired) |
| Lowered Height | 4 1/2″ |
| Air Requirement | 90-125 PSI |
| Motor/Electrical Requirement | 110 volt |
| Oil Requirement | 1.5-2 Gallons AW32 or AW46 (NOT INCLUDED) |
| Shipping Weight | 850 lbs. |
